Optima Scale OP-923 Axle Scale For Industrial Weighing

Optima Scale OP-923 Axle Scale For Industrial Weighing

by Optima Scale
$7,299.00 - $11,999.00
$7,299.00
$7,299.00 - $11,999.00
$7,299.00
Capacity: 60 lbs

The Optima OP-923 Axle Scale is a robust, portable weighing solution designed for industrial applications such as logistics, shipping, and freight operations. Its heavy-duty construction and versatile configurations make it suitable for both permanent installations and portable setups.

FEATURES

  • Used to minimize risk of overweight fines and ensure trucks are not underloaded for maximun productivity.
  • Large weighing surface and low profile for vehicle weighing
  • Heavy duty I-Beam construction with threaded top plate
  • Four premium water tight alloy steel nickel plated load cells
  • Low profile 5.75” height for smooth drive on/off
  • Load cell capacity is 2.2 times the scale capacity for overload protection
  • 50’ quick connecting cables (2) for hostile environments

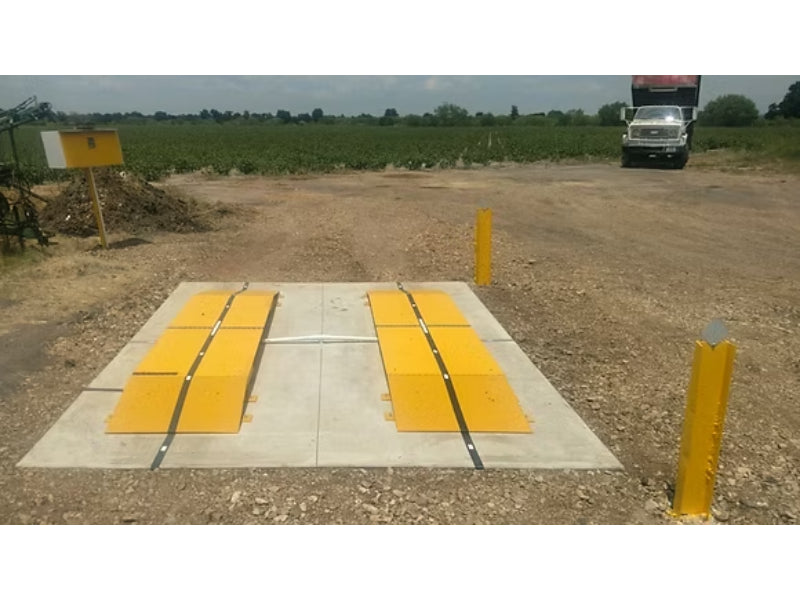

  • Can be used with ramps for above ground installations or flush with concrete for a pit installed permanent application
  • Durable platform with treading for tire grip
  • Powder coated yellow paint finish
  • Florklift portable
  • Factory Calibrated
  • Overload Protection
  • 1 year warranty on parts

INDICATOR FEATURES

  • OP-900 NTEP indicator with LED or LCD display
  • 1" Tall backlit display
  • Optional Rechargeable battery (up to 100 hrs)
  • Metal casing (Stainless steel or washdown upgradeable)
  • AC adapter included
  • Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
  • Gross/Tare/Pre-Set Tare/Zero
  • Multiple Hold functions
  • Count weighing
  • Accumulation weighing
  • Overload / Underload alarm
  • Splash proof  keyboard and display
  • Connects to a remote display and printer
  • NTEP approved for 5,000 divisions
  • Displays up to 50,000 graduations
  • Full Duplex RS-232 Serial Port

OPTIONAL ACCESSORIES

  • Printer
  • Remote Display
  • Software
  • Indicator Stand (standard or stainless steel)

SPECIFICATIONS

  • Material: Heavy Duty Steel (Aluminum plates available)
  • Overload Protection: 200%
  • Indicator: OP-900 NTEP approved
  • Power: AC/DC, built-in rechargeable
    battery (100 hrs)
  • Capacity: 60,000 lbs - 80,000 lbs
  • Platform Length: 7-12 ft
  • Ramp Length: 2.1 ft (25 in)
  • Cable Length: 50 ft
  • Warranty: 1 year limited warranty on electronics / 2 year limited warranty on platform
Model # Capacity × Accuracy Platform Length Overall Dimensions (L × W × H)
OP-923-7 60,000 lb × 10 lb / 30 ton 7 ft 137″ × 32″ × 5.75″ H
OP-923-12 80,000 lb × 10 lb / 40 ton 12 ft 194″ × 32″ × 5.75″ H






SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Optima Scales U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
