Cambridge Scale Works Model 770 Light Vehicle / Airport Scale - Northline Scale

Cambridge Scale Works Model 770 Light Vehicle / Airport Scale

by Cambridge Scale
$9,380.00 - $33,400.00
$9,380.00
$9,380.00 - $33,400.00
$9,380.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

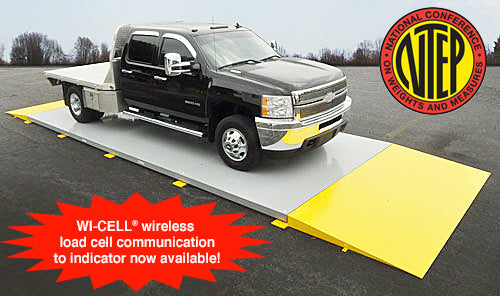

The Cambridge Scale Works Model 770 Series is a modular, low-profile scale system designed for weighing light vehicles, airport ground support equipment, and air cargo containers. Its versatile configurations and robust construction make it suitable for various industrial and transportation applications.

  • Cambridge Scale Works, Inc. has designed our Model 770 Series with unique “drop-in-place” modules and convenient alignment mounting pins for easier installation.
  • 4” structural tubular steel cross-strut design equally distributes weight over entire scale surface for superior strength and durability. 10K “Heavy Duty” environmentally sealed load cells.
  • Each module is independently wired at the factory for quick and easy installation. The polycarbonate NEMA IV junction boxes are prewired and only require a single signal cable from
    one of the boxes to the indicator.
  • Optional ramp has an asphalt package and locator plates.The asphalt package supports the scale on asphalt and protects the scale from settling. The locator plate properly aligns the ramp and scale and supplies proper clearance for operation.

FEATURES

  • Modular Design
  • 30,000 lb & 40,000 lb Capacities
  • 4’, 5’ & 6’ Drop-in-Place Modules
  • 8’ and 10’ Widths Available
  • Environmentally Sealed Load Cells
  • Polycarbonate NEMA IV Junction Box
  • Structural Tubular Steel Construction
  • Diamond Tread Deck Plates
  • Scale Assembles in Sections on Site (No Welding)
  • Standard Shipping Mode is by LTL Carrier

APPLICATIONS

  • General Purpose Weighing
  • Airport Containers
  • Airport Trams
  • Pick-Up Trucks
  • Single Axle / Light Duty Vehicles
  • Recycling Centers
  • Landscape Yard

OPTIONS

  • Stainless Steel Load Cells / "FM" Approved Load Cells
  • Guard Rails
  • Wi-Cell wireless load cell communication

ACCESSORIES (sold separately)

  • Ramps
  • Pit forms

SPECIFICATIONS

Size (W × L × H) Capacity CLC # of Modules # of Sections # of Load Cells Load Cell Capacity Est. Ship Weight
8' × 8' × 5" 30,000 lbs 20K 2 3 6 10K 1,850 lbs
8' × 10' × 5" 30,000 lbs 20K 2 3 6 10K 2,000 lbs
8' × 12' × 5" 30,000 lbs 20K 2 3 6 10K 2,375 lbs
8' × 18' × 5" 40,000 lbs 20K 3 4 8 10K 3,650 lbs
8' × 24' × 5" 40,000 lbs 20K 4 5 10 10K 4,800 lbs
10' × 10' × 5" 30,000 lbs 20K 2 3 6 10K 2,400 lbs
10' × 12' × 5" 30,000 lbs 20K 2 3 6 10K 2,850 lbs
10' × 18' × 5" 40,000 lbs 20K 3 4 8 10K 4,375 lbs
10' × 24' × 5" 40,000 lbs 20K 4 5 10 10K 5,700 lbs
10' × 30' × 5" 40,000 lbs 20K 5 6 12 10K 7,025 lbs
8' × 8' × 5" 60,000 lbs 30K 2 3 6 15K 2,400 lbs
8' × 10' × 5" 60,000 lbs 30K 2 3 6 15K 2,500 lbs
8' × 12' × 5" 60,000 lbs 30K 2 3 6 15K 2,750 lbs
8' × 18' × 5" 60,000 lbs 30K 3 4 8 15K 3,650 lbs
8' × 24' × 5" 60,000 lbs 30K 4 5 10 15K 5,000 lbs
10' × 8' × 5" 60,000 lbs 30K 2 3 6 15K 2,700 lbs
10' × 10' × 5" 60,000 lbs 30K 2 3 6 15K 3,000 lbs
10' × 12' × 5" 60,000 lbs 30K 2 3 6 15K 3,400 lbs
10' × 18' × 5" 60,000 lbs 30K 3 4 8 15K 4,500 lbs
10' × 24' × 5" 60,000 lbs 30K 4 5 10 15K 6,000 lbs
10' × 30' × 5" 60,000 lbs 30K 5 6 12 15K 7,400 lbs



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
