Cambridge Scale Works Model 770-AW Axle Weigher and Model 770-AW-LG Landing Gear Scale

Cambridge Scale Works Model 770-AW Axle Weigher and Model 770-AW-LG Landing Gear Scale

by Cambridge Scale
$6,900.00 - $35,250.00
$11,500.00
$6,900.00 - $35,250.00
$11,500.00
Size: 10' X 8' X 6" 60000 lbs.

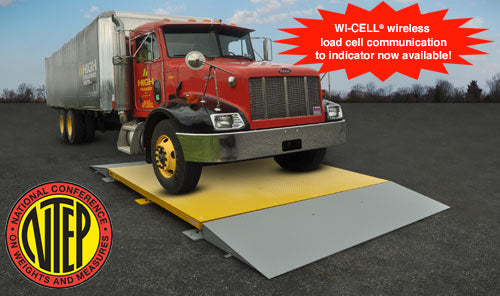

The Cambridge Scale Works Model 770-AW Axle Weigher and 770-AW-LG Landing Gear Scale are modular, heavy-duty weighing solutions designed for axle and trailer support weight measurements. Their robust construction and flexible configurations make them suitable for various industrial applications.

  • Cambridge Scale Works, Inc. has designed our Model 770-AW Series with unique “drop-in-place” modules and convenient alignment mounting pins for easier installation.
  • 4” structural tubular steel cross-strut design equally distributes weight over entire scale surface for superior strength and durability. 20K “Heavy Duty” environmentally sealed load cells.
  • Each module is independently wired at the factory for quick and easy installation. The polycarbonate NEMA IV junction boxes are prewired and only require a single signal cable from
    one of the boxes to the indicator.
  • Optional ramp has an asphalt package and locator plates.The asphalt package supports the scale on asphalt and protects the scale from settling. The locator plate properly aligns the ramp and scale and supplies proper clearance for operation.

FEATURES

  • Modular Design
  • “Heavy Duty” Concentrated Loading
  • 60K Total Capacity
  • 4’, 5’ & 6’ Drop-in-Place Modules
  • 20K “Heavy Duty” Environmentally Sealed Load Cells
  • Polycarbonate NEMA 4X Junction Box
  • 4“ Structural Tubular Steel Construction
  • Diamond Tread Deck Plate
  • 200% Overload Protection
  • Scale Assembles in Sections on Site (No Welding)
  • Standard Shipping Mode is by LTL Carrier

APPLICATIONS

  • Triaxle Weighing
  • Concentrated Load Vehicles
  • Tractor Trailers
  • Tandem Axle Vehicles
  • Trailer Weighing
  • Multi-Deck Weighing System

OPTIONS

  • Stainless Steel Load Cells / "FM" Approved Load Cells
  • Side Rails
  • Bump Rails
  • Wi-Cell wireless load cell communication

SPECIFICATION

Axle Weighing

Model Size (W × L × H) Capacity CLC # of Modules # of Load Cells Load Cell Capacity Est. Ship Weight
770-AW 10' × 8' × 6" 60,000 lbs 40K 2 6 20K 2,850 lbs
770-AW 10' × 10' × 6" 60,000 lbs 40K 2 6 20K 3,550 lbs
770-AW 10' × 12' × 6" 60,000 lbs 40K 2 6 20K 4,450 lbs



Full Truck Weighing

Model Size (W × L × H) Capacity CLC # of Modules # of Load Cells Load Cell Capacity Est. Ship Weight
770-AW 10' × 15' × 6" 60,000 lbs 40K 3 8 20K 5,325 lbs
770-AW 10' × 18' × 6" 60,000 lbs 40K 3 8 20K 6,675 lbs
770-AW 10' × 24' × 6" 60,000 lbs 40K 4 10 20K 8,950 lbs
770-AW 10' × 30' × 6" 60,000 lbs 40K 5 12 20K 11,200 lbs



Landing Gear Weighing

Model Size (W × L × H) Capacity CLC # of Load Cells Load Cell Capacity Est. Ship Weight
770-AW-LG 10' × 3' × 6" 60,000 lbs 40K 4 20K 1,200 lbs



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
