US-WIM3113 Speed Weigh Wireless In Motion Truck Scale For Industrial Weighing

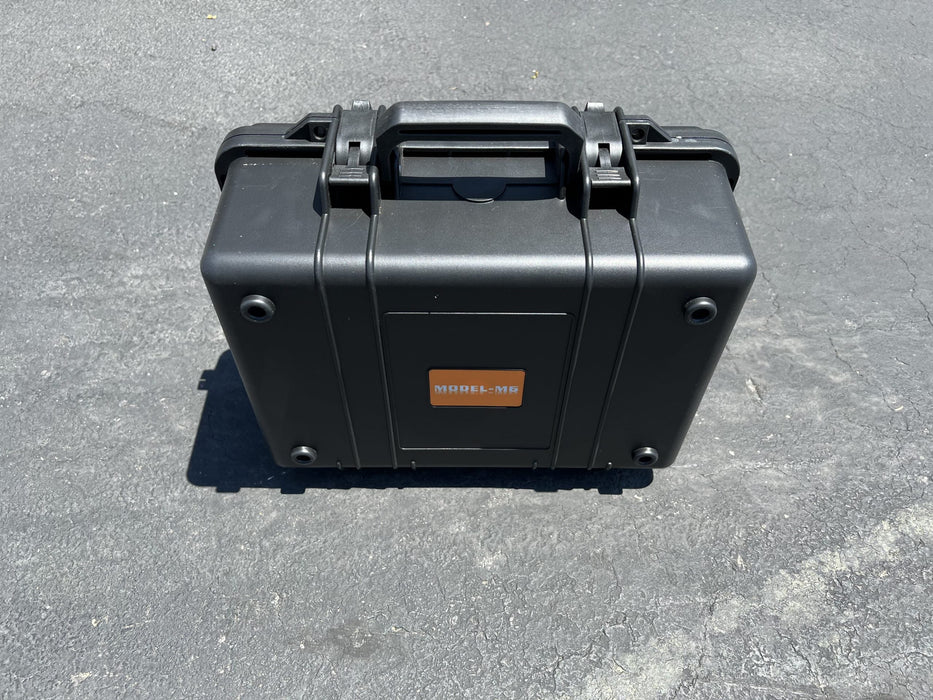

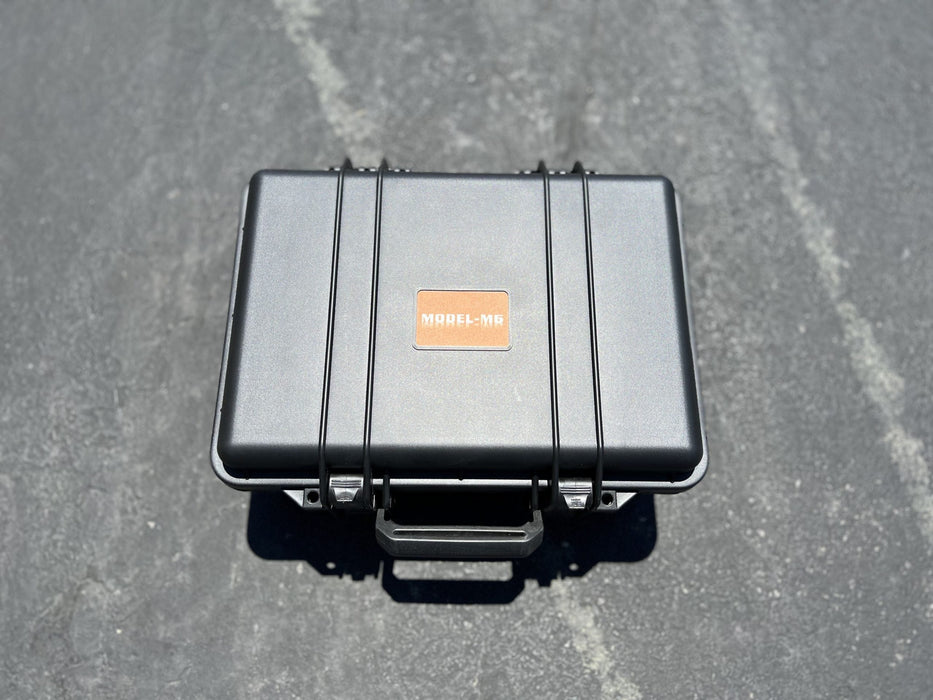

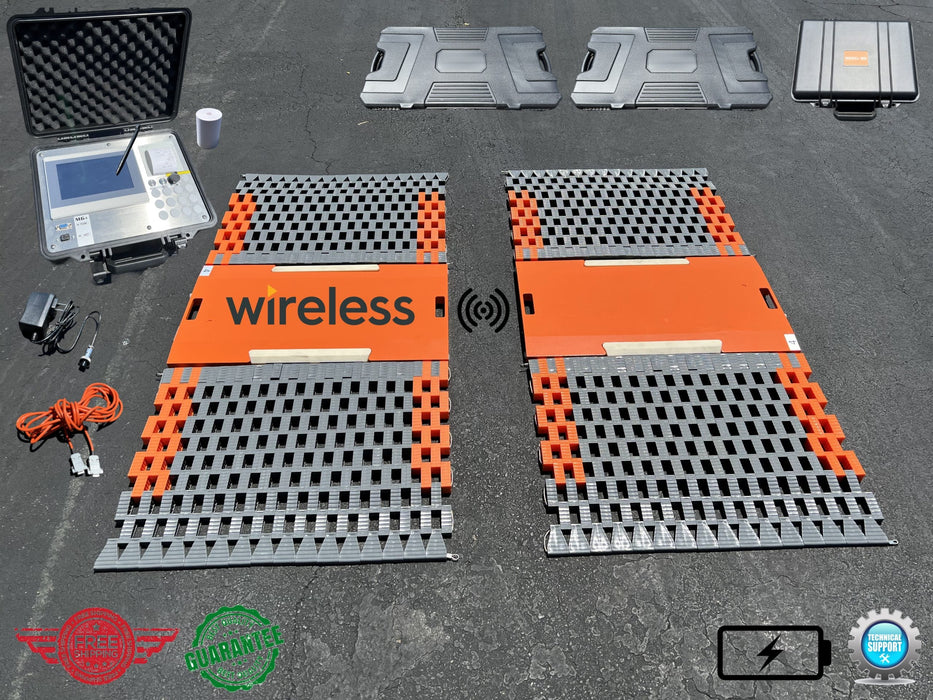

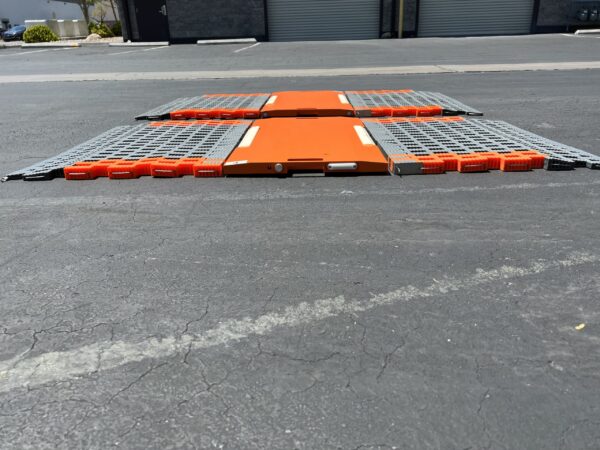

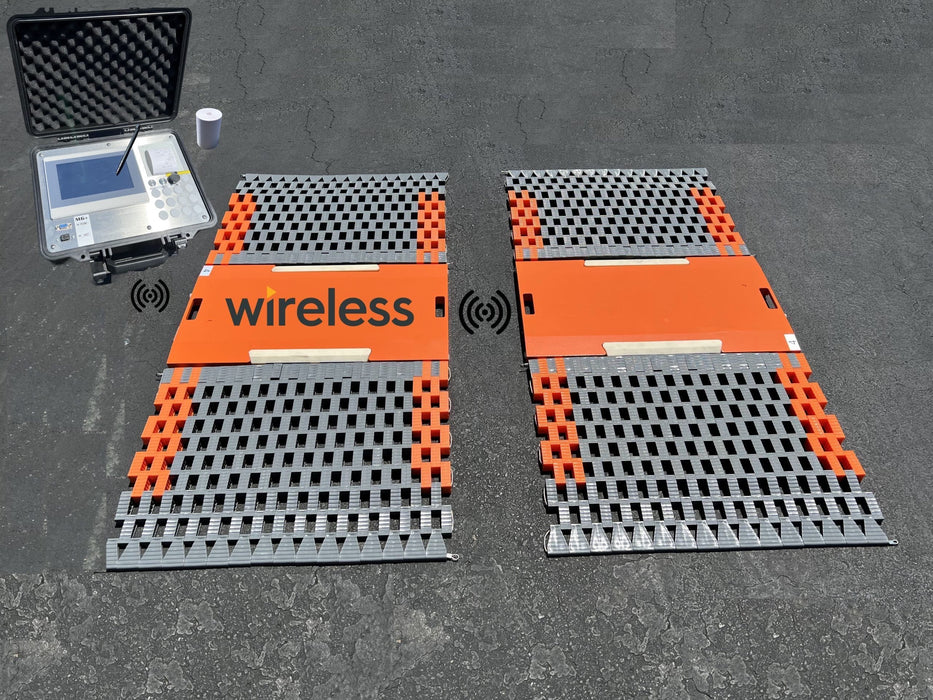

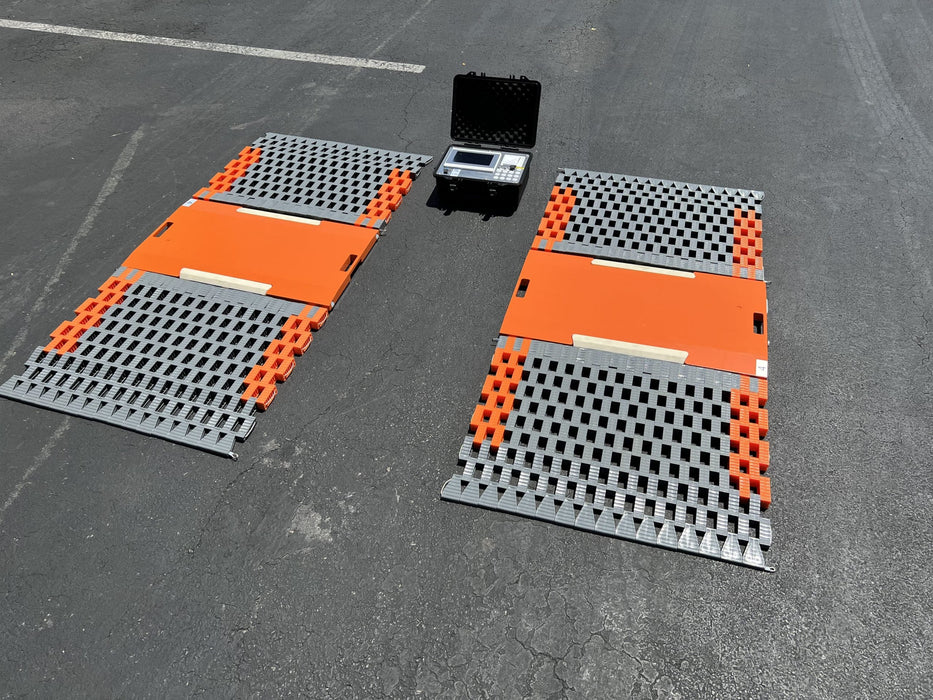

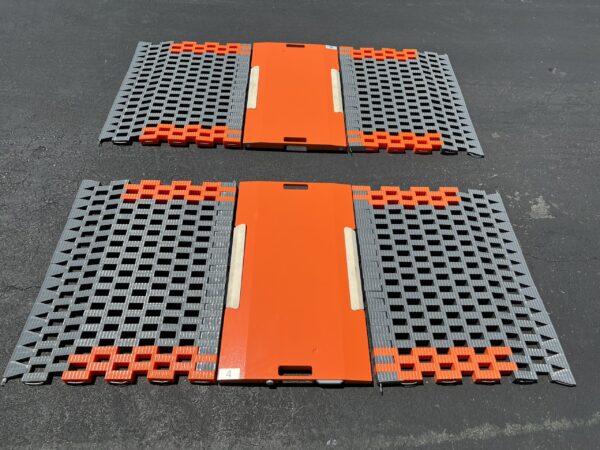

USA Measurements US-WIM3113W-80K Speed Weigh Wireless axle truck scale for hands free operation. Quickly drive across the in motion axle scale to get an accurate weight of each axle and gross weight. Our US-M6+ weighing indicator will automatically print a receipt, can be assigned truck ID numbers, and store truck weighing data. US-WIM3113W features a low profile 1″ Height with a 31″ x 13″ Pad size. Included is the steel ramps and US-M6+ indicator with carrying case. Great for portable applications.

FEATURES

• Aluminum alloy steel material

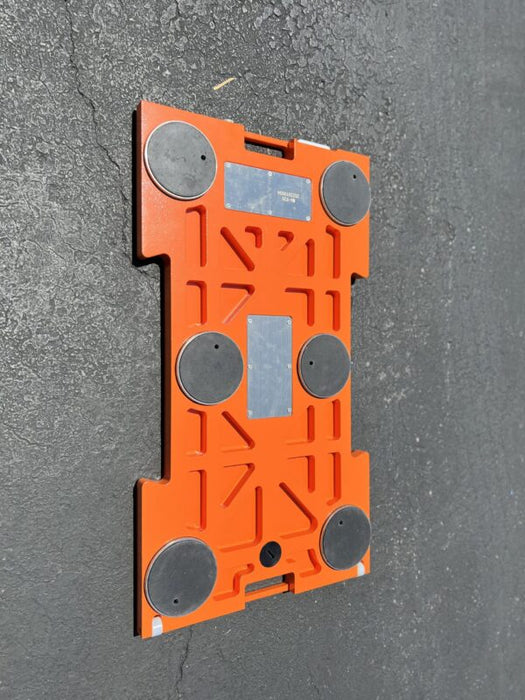

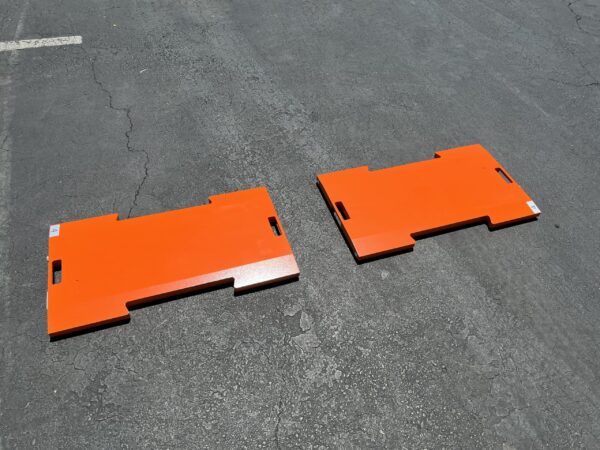

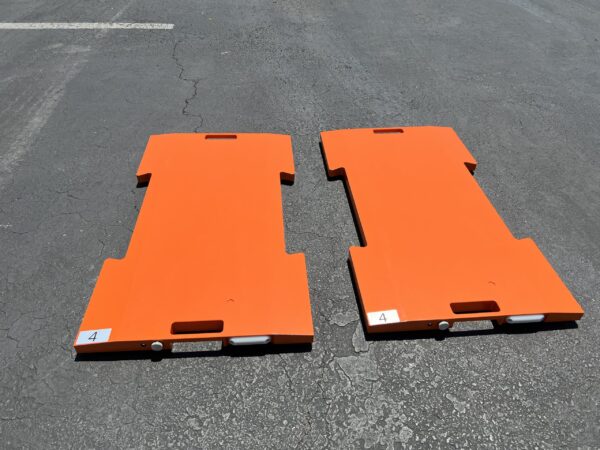

• Pad Size: 31.5″” x 13.78 x 0.87″

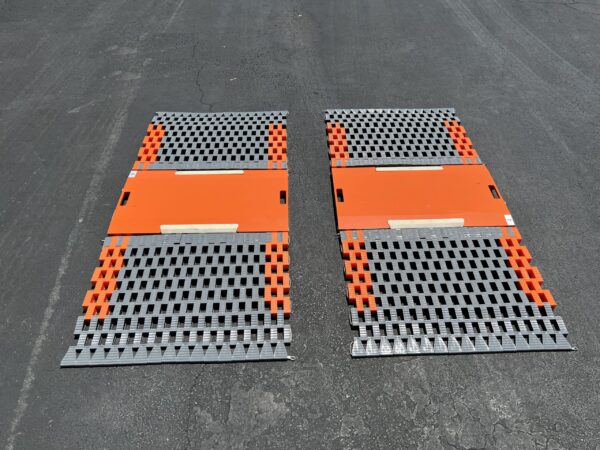

• Ramp size: 31.5″ x 36″
• 80,000 lb Capacity for 2 pads

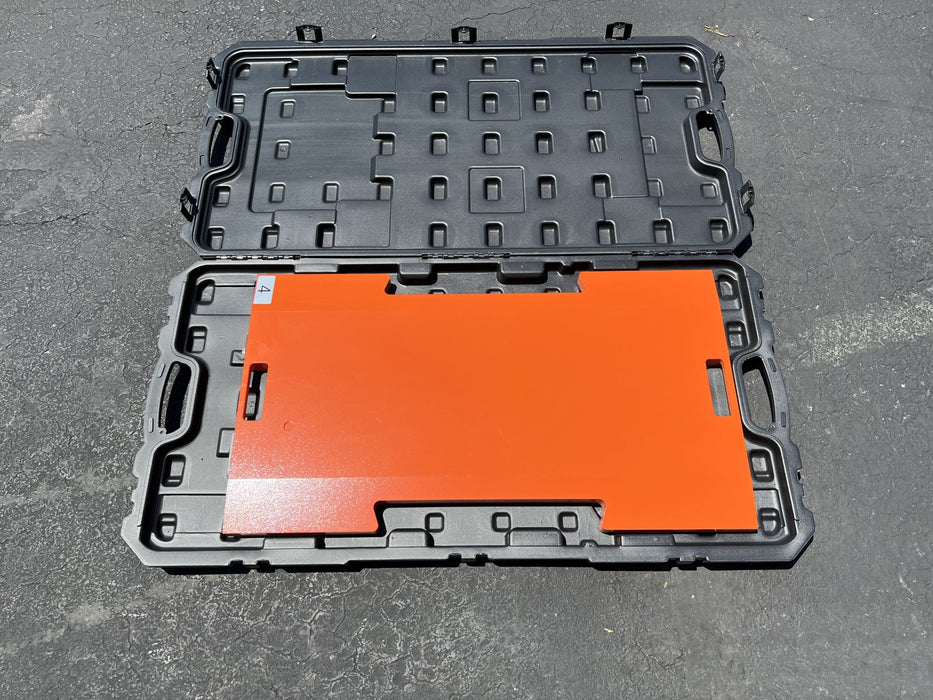

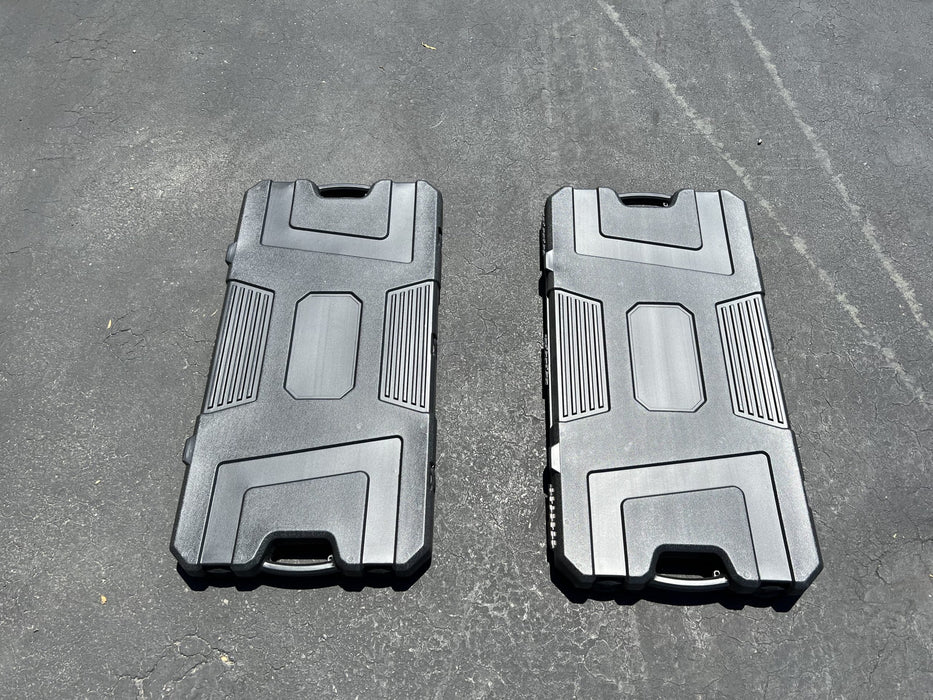

• Portable with Carrying Handles
• Sealed and protected for normal working environment
• Load cell based with high Weighing In-Motion accuracy
• OIML Standard
• Static Weighing Mode
• Wide pads to weigh single or dual tires
• 120% overload protection
• Built-in anti-electromagnetic interference to make sure weighing result will not be influenced
• Built-in auto compensation system to compensate weighing error on double joint axle or triple joint axle
• Accuracy In-motion: 5-7%
• Accuracy Static weighing: 1-2%
• 1 Year Manufacturer Warranty
• Non-NTEP (Not Legal for Trade)

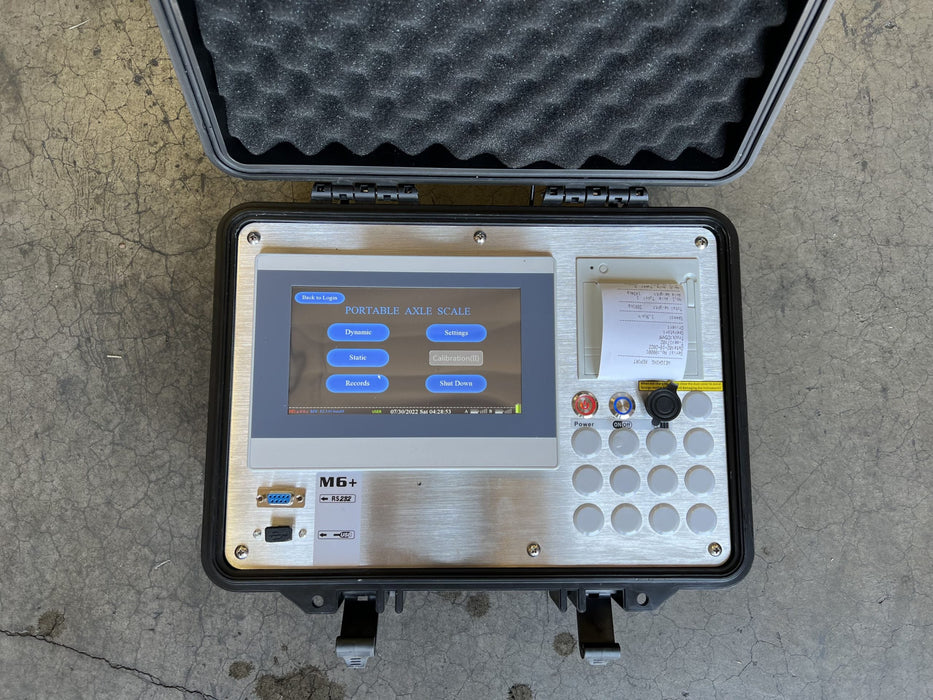

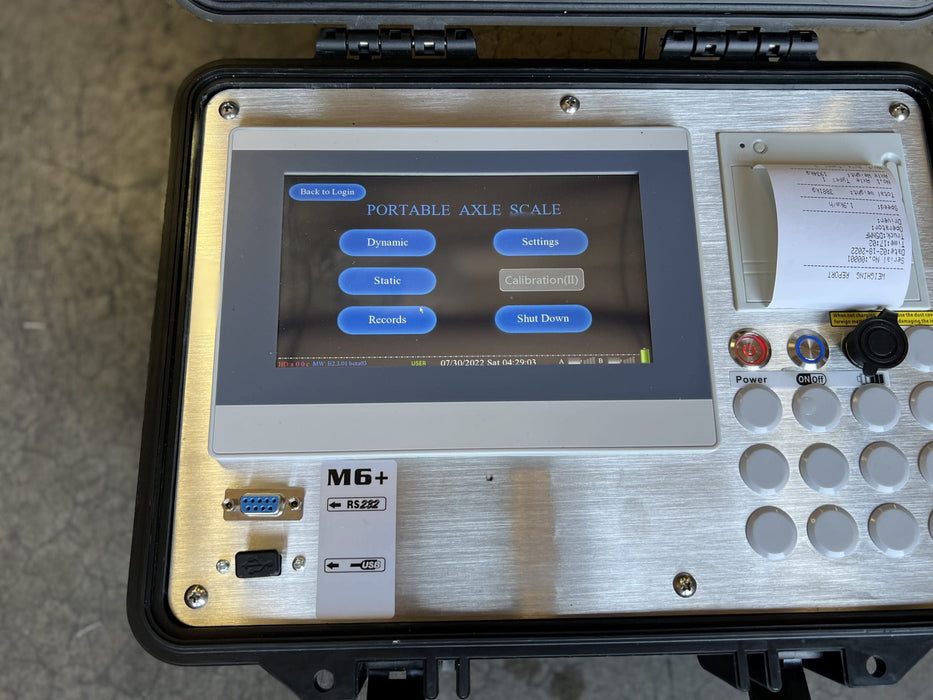

US-M6 INDICATOR FEATURES

• Static weighing Mode
• In Motion Weighing Mode

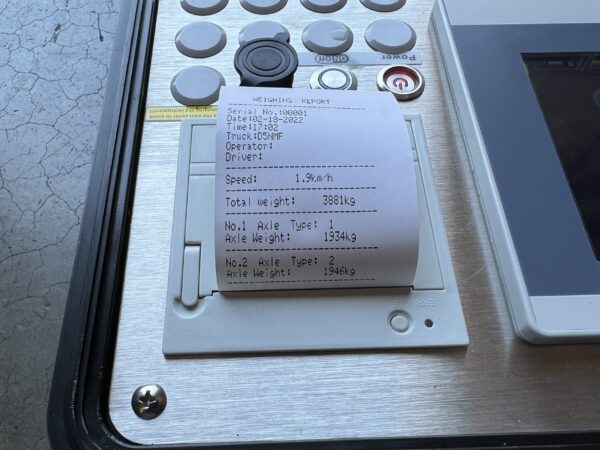

• Receipt Printer (Single Ply Paper)
• High Definition Touch Screen
• 40 Hour Battery Life
• Stores Records for Weights
• Windows CE 6.0 System
• 4GB Internal Memory

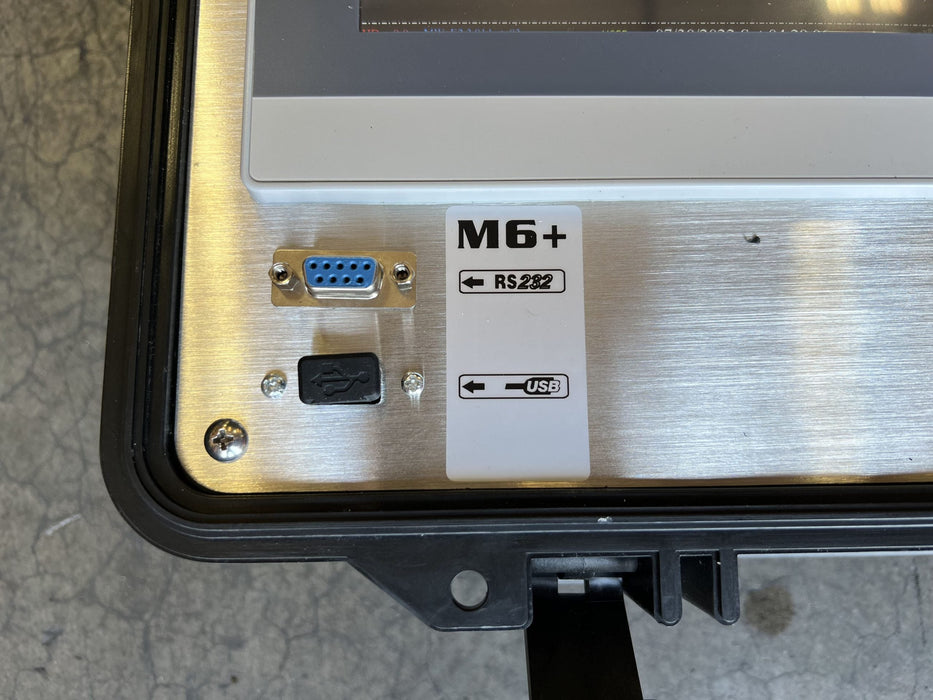

• RS232 Port and USB 2.0 Output
• Excel file, text file, or database file output


US-M6 INDICATOR SPECIFICATIONS

• Full-scale temperature coefficient: 5ppm/°C
• Sampling speed: 200times/sec
• The speed of display renewal: 12.5times/sec
• System non-linearity <0.01%
• Impulse source of sensor: DC 5V±2%
• Operating temperature range: 0°C–40°C
• Power supply sink (without the sensor): 70mA
• No printing and no back lightin, 1000mA (printing)

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
