US-9011SS-EX Indicator with LCD Display (Intrinsically Safe)

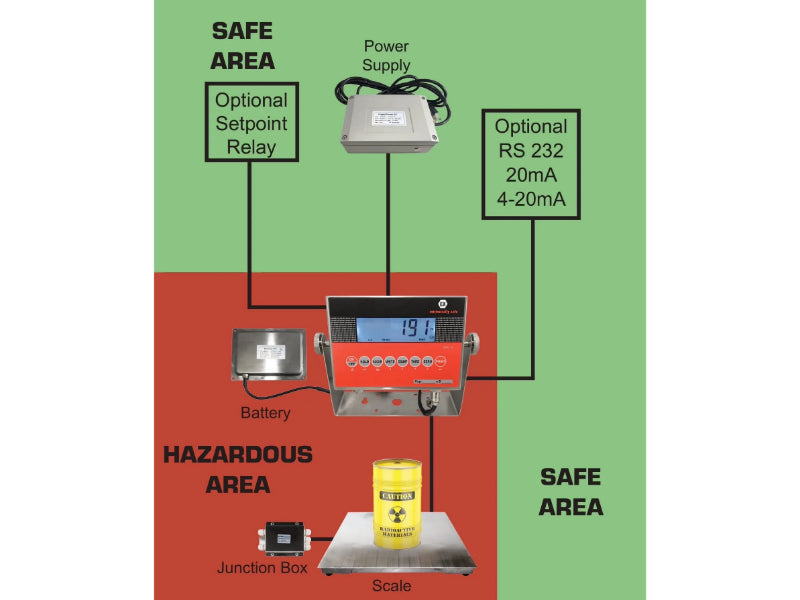

The USA Measurements “iSafe” US-9011SS-EX indicator is designed for intrinsically safe applications, featuring a robust stainless steel NEMA 4X enclosure. It offers two versatile power options: a removable rechargeable battery or a power adapter with a 50 ft charging cable, suitable for use in either safe or hazardous environments. The iSafe indicator is compatible with balance scales, bench scales, floor scales, pallet jack scales, and various other weighing devices.

US-9011SS-EX FEATURES

• Steel Housing
• 1” Digits in LCD display
• Weighing Units LCD: Kg, Lb, Oz, grams, Lb:Oz
• Gross Weighing Capability
• Multiple Tare Options with Pre-Set Tare
• Zero Function
• Hold Functions for Enhanced Flexibility
• Counting Feature
• Accumulation and Batch Weighing
• Check Weighing with Over/Under Alarm
• Power-Saving Mode
• Auto Date & Time Adjustment
• Adjustable Gravity Based on Location
• Fully Adjustable Zero Range
• Error Warning Alert
• Splash-Proof Keyboard & Display
• RS-232 Ports for Scoreboard and Printer Connectivity
• Supports up to 50,000 Displayed Graduations
• Bracket & Mounting Hardware Included
• 110V Power Adapter
• Easy 5-Step Calibration
• Full Duplex RS-232 Serial Port
• Powers up to Six 350Ω Load Cells
• 2-Year Manufacturer Warranty
• Non-NTEP (Not legal for trade)

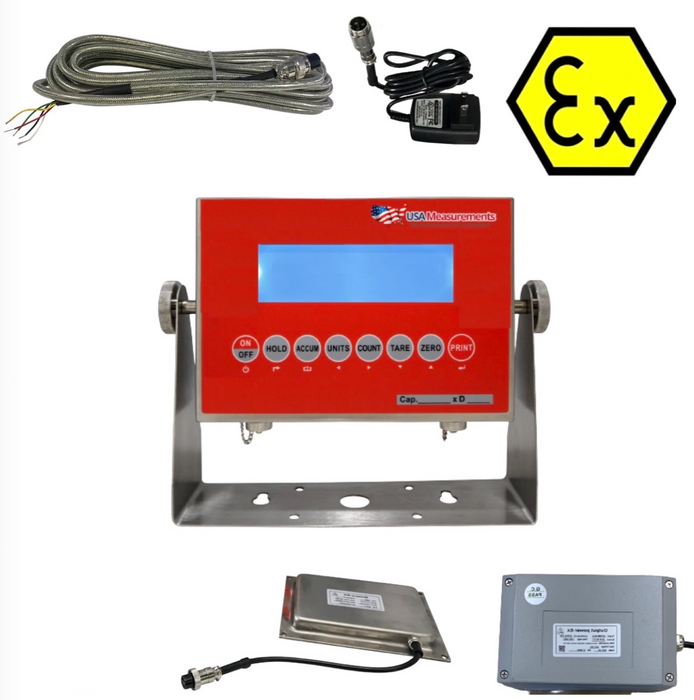

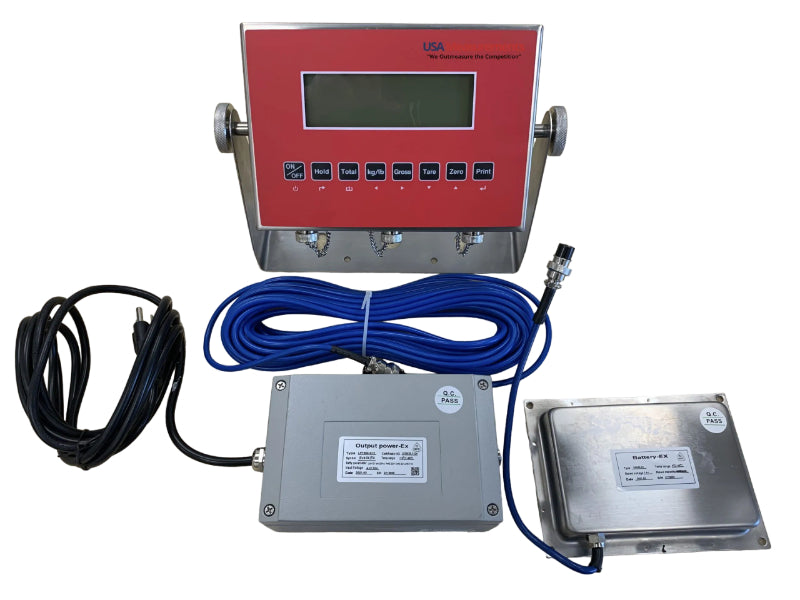

What it includes

• (1) US-9011SS-EX Indicator

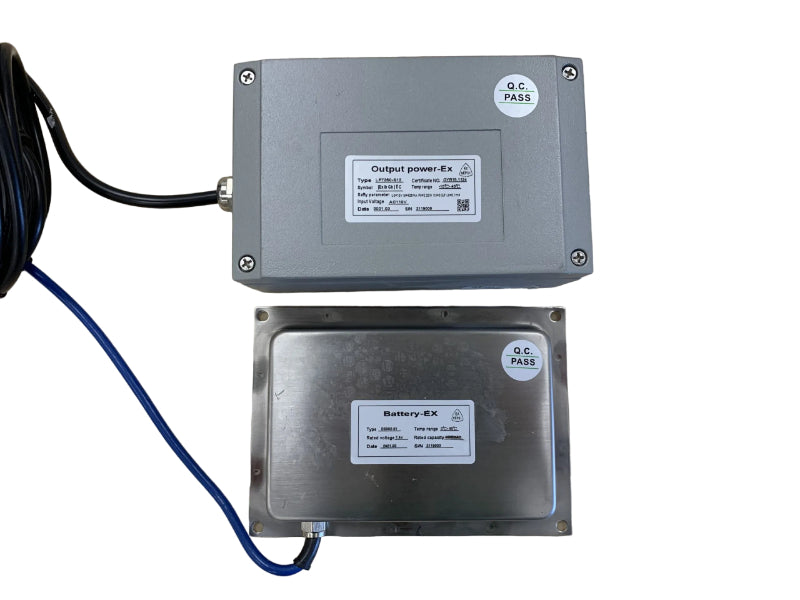

• (1) EX Safe Rechargeable Battery

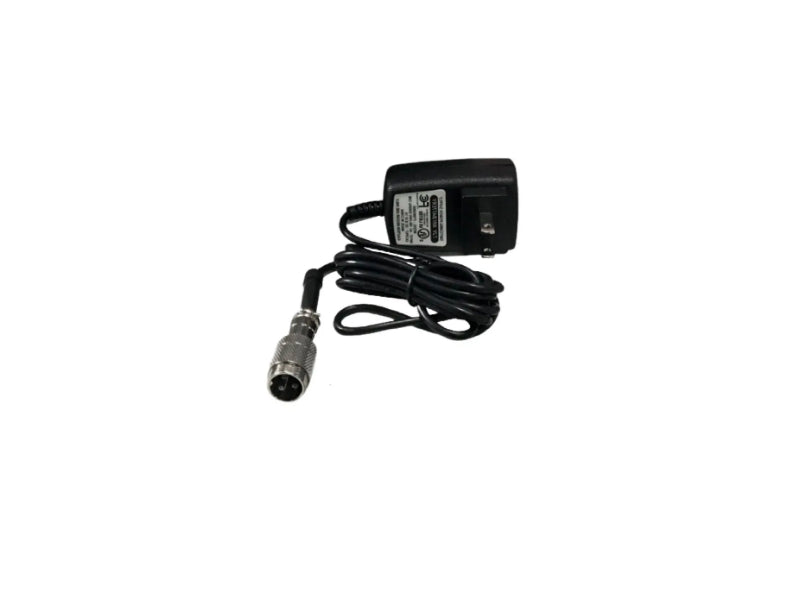

• (1) EX Safe Power Supply
• (1) 50′ Cable for Power Supply
• (1) 20′ Home Run Steel Braided Cable
• (1) EX Safe Battery Power Adapter
• (1) User Manual


Common Applications

• Oil & Gas: Weighing in flammable gas/vapor areas
• Chemical Plants: Safe weighing with combustible chemicals
• Mining: Underground, explosion-prone weighing
• Pharma: Weighing with fine powders/volatile solvents
• Petrochemical: Safe measurement during liquid/gas handling
• Food & Beverage: Areas with alcohol/VOCs
• Paint Production: Mixing with flammable solvents
• Aerospace: Safe weighing with combustible materials


US-9011SS-EX SPECIFICATIONS

• Display: 1.5-inch LCD, 6-digit numeric
• Measurement Units: lb, kg (primary); oz, g (secondary)
• Accuracy Class: 5000e
• Resolution: 120,000 dd for industrial use; 10,000 dd HB44
• Excitation Voltage: 5V DC
• Maximum Output Current: 120 mA
• Excitation Circuit: 5V DC, 4-wire configuration
• Load Cell Capacity: 6 load cells at 350Ω max
• Load Cell Excitation Voltage: 5V ± 0.5V DC
• Display Resolution: 30,000; ADC: 2,000,000
• Zero Stability Error: TKspn < ± 6 ppm/K
• Internal Sensitivity: 0.3 µV per division
• Input Voltage Range: -30 to +30mV DC
• Power Supply: 100-240V AC, 50/60 Hz
• Power Consumption: 5W at 9V DC
• Operating Temperature: 14°F to 104°F (-10°C to +40°C), <90% RH
• Weight: 4.3 lbs (1.95 kg)
• Internal Resolution: 24-bit A/D Sigma-Delta; 1,048,000 divisions
• Display Resolution: 120,000 dd for industrial; 10,000 dd HB44
• Display Increment: Selectable increments of 1, 2, 5, 10, 20, 50
• Decimal Point: Configurable for 0, 1, 2, 3, or 4 decimal places
• Conversion Rate: Typically 12 samples per second
• Analog Signal Input Range: 1mV/V to 3mV/V
• Analog Signal Sensitivity: 0.1 µV per graduation (minimum)
• Measurement Rate: 0 to 15mV
• Auto Zero Tracking: Adjustable from 0 to 5 divisions
• Auto Zero Delay: Adjustable from 0 to 3 seconds
• Motion Detection: 1 to 10 divisions
• Motion Delay: Configurable from 0 to 55 divisions


SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.
