SCI T1 Digger Excavator Scale

SCI T1 Digger Excavator Scale

by SCI
$12,995.00 - $12,995.00
$12,995.00
$12,995.00 - $12,995.00
$12,995.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Scale and Control Innnovations (SCI) Dealer

✔ Call Us: +1 (941) 257-3293

✔ 2 or 3 Year Manufacturer's Warranty (Depending on the Scale)

✔ Made in The USA

✔ Ships From Winona, MN

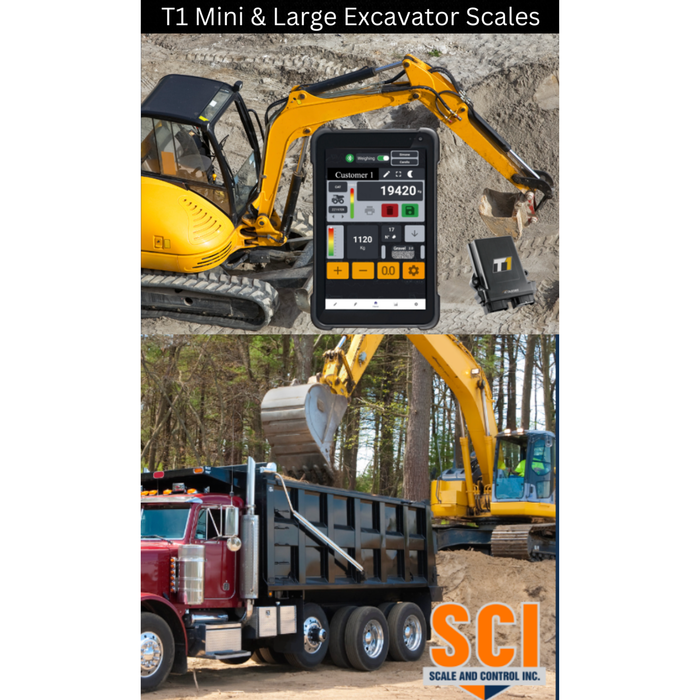

The T1 Digger is the new concept of on-board weighing and productivity management for mini to large size excavators.

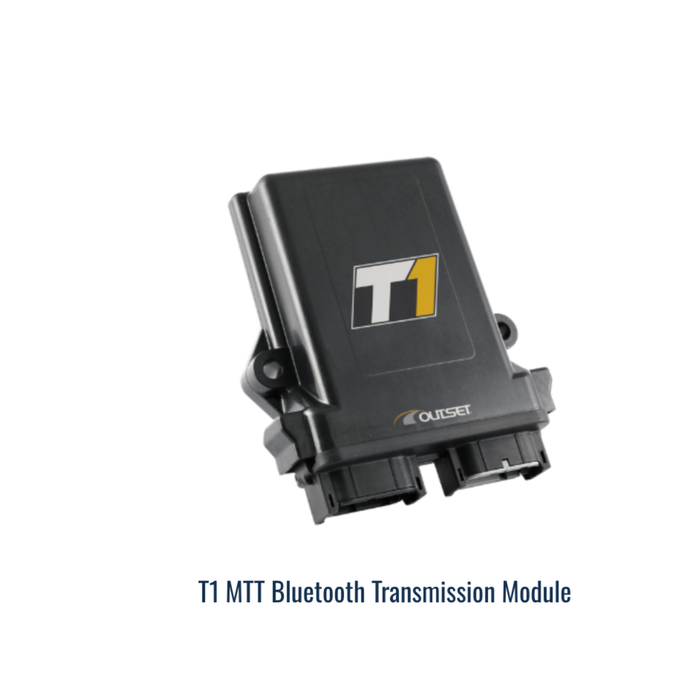

The innovative K008 bluetooth transmission module allows a direct and constant control of the loaded material and the details of the job such as customer, material, vehicle ID, operator, etc. through an Android App for smartphone or tablet.

All weighing data and production databases can be transmitted via serial or can-bus line to the on-board computer or directly in-cloud on external devices, maintaining control and management of productivity and safety of your machinery.


System Features

  • Real time on board weighing Option

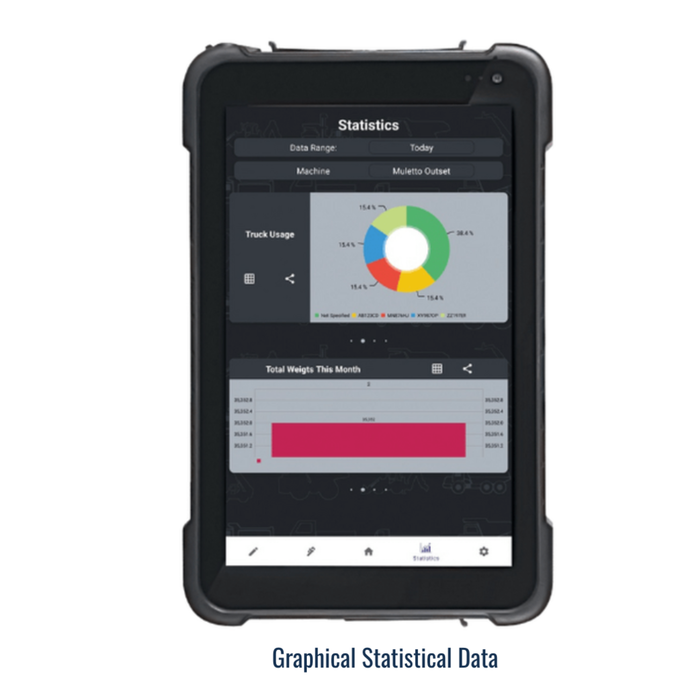

  • Production charts and databases Available in basic or advanced version
  • Accuracy ±3% of machine capacity
  • Quick and easy installation
  • CLOUD Data transmission feature Long range Bluetooth module
  • Users can receive real time data from the scale into the cloud database and send real time orders to the scale from the cloud database

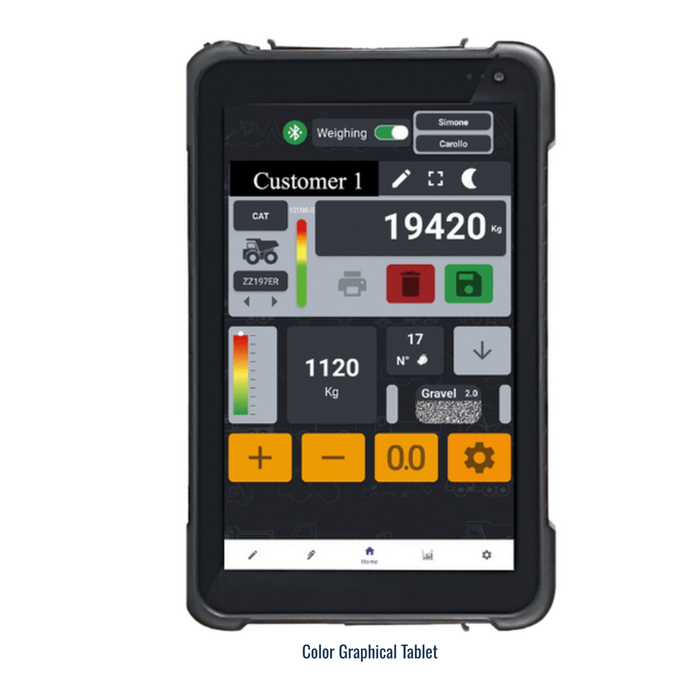

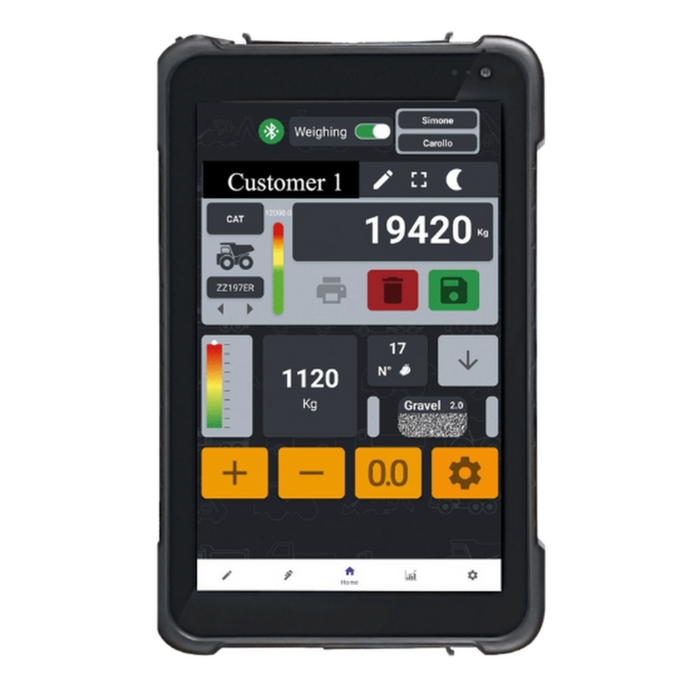

  • Display of total weight, partial weight, number of buckets and target weight
  • Dynamic weighing mode
  • Free management of the starting weighing point
  • Database management for customers, materials, vehicles and operators
  • Internal storage database
  • Management of multiple attachments
  • Multi-material management in the same load
  • Conversions in cubic meters
  • Tare management

T1 Dynamic Excavator Scale Standard System Parts

  • 1-Android Rugged Tablet
  • 1-Standard Tablet Mounting Bracket
  • 1-Power supply cable kit
  • 1-Wiring harness kit
  • 1-T1MMT weighing module/Bluetooth Transmitter
  • 2-Pressure transducer 400bar
  • 2-Inclinometers kit
  • 1-Mechanical installation kit

OPTIONAL

  • Additional pressure transducer 400bar with cable
  • Standard bracket for tablet
  • Triplex suction cup bracket for tablet
  • Bluetooth Thermal printer
  • Beacon BLE automatic recognition
  • RS232 Data transmission cable
  • OTD Outset Tracking Data for data transmission

Specifications

Brand SCI (Scale and Control)
Model T1 Digger
Weighing Type On-board weighing (dynamic)
Typical Accuracy  ±3% of Machine Capacity (dynamic on-board weighing)
Units lbs, tons, kg, metric tons
Display 4.3" color display
Manufactured In USA
Warranty 3 years (as listed on product materials)

What's Included

  • System configuration can vary by machine application.

Optional Accessories

  • Printer and Paper

Shipping & Installation Notes

  • Compatibility and calibration depend on machine configuration; confirm loader make/model and hydraulic setup before ordering

FAQ

  • What warranty comes with this? 3 years (as listed on product materials).
  • Where is it manufactured? USA.
  • What units can it display? lbs, tons, kg, and metric tons.
