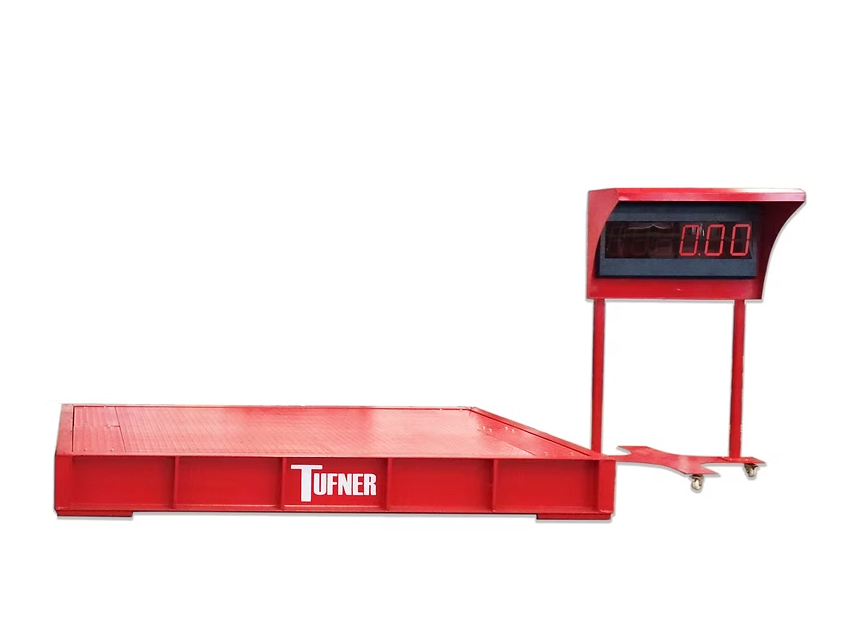

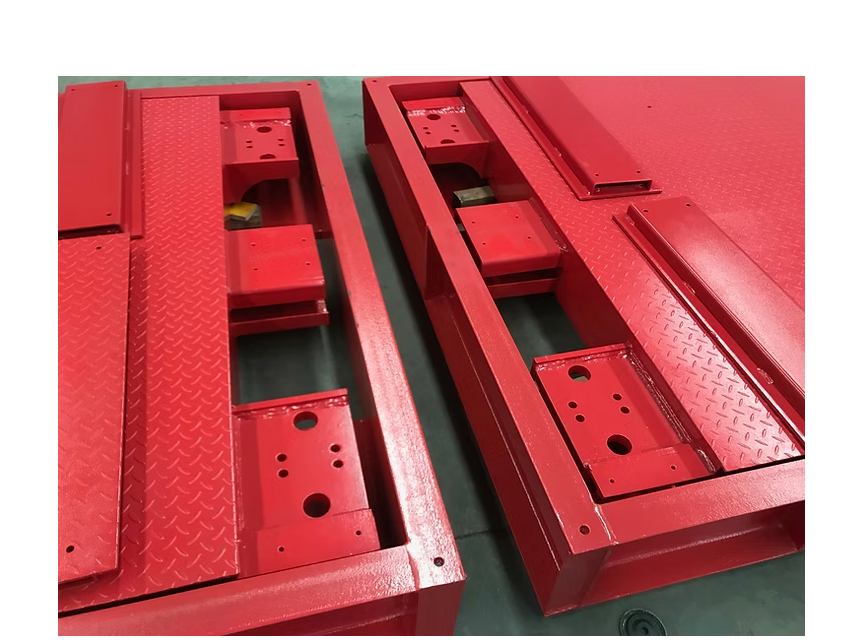

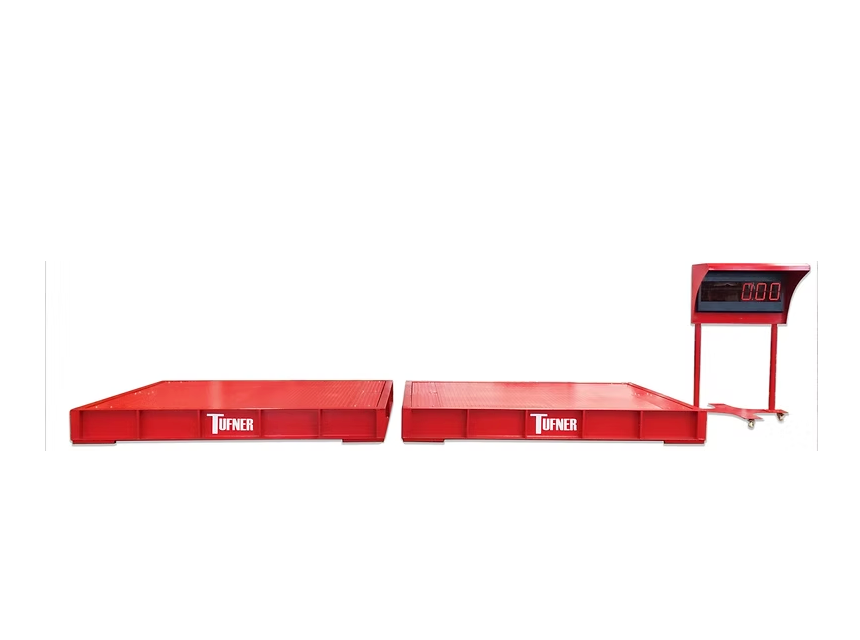

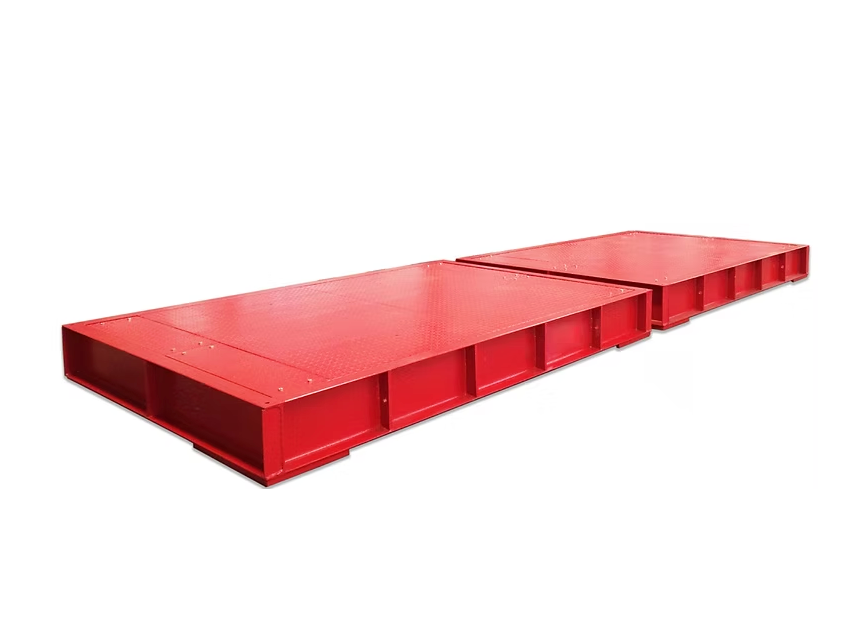

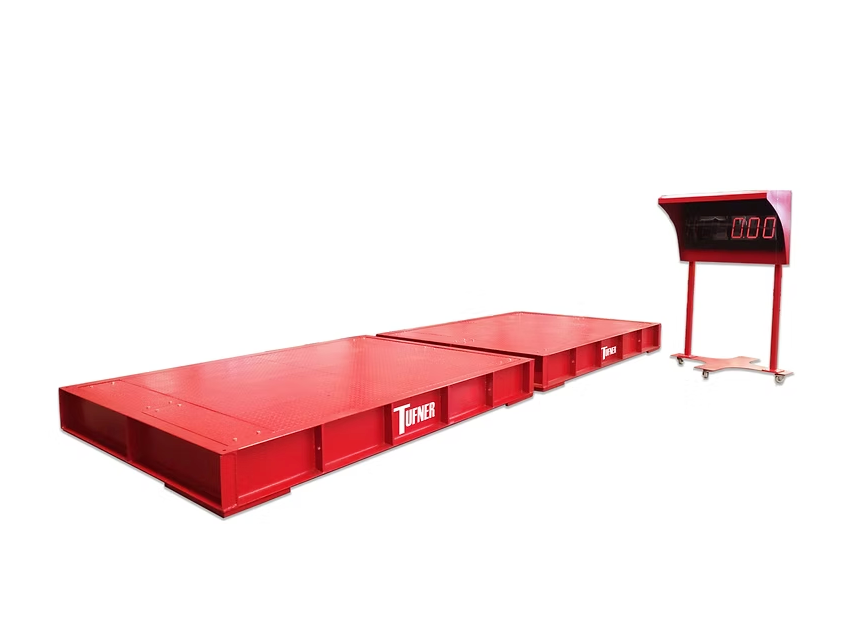

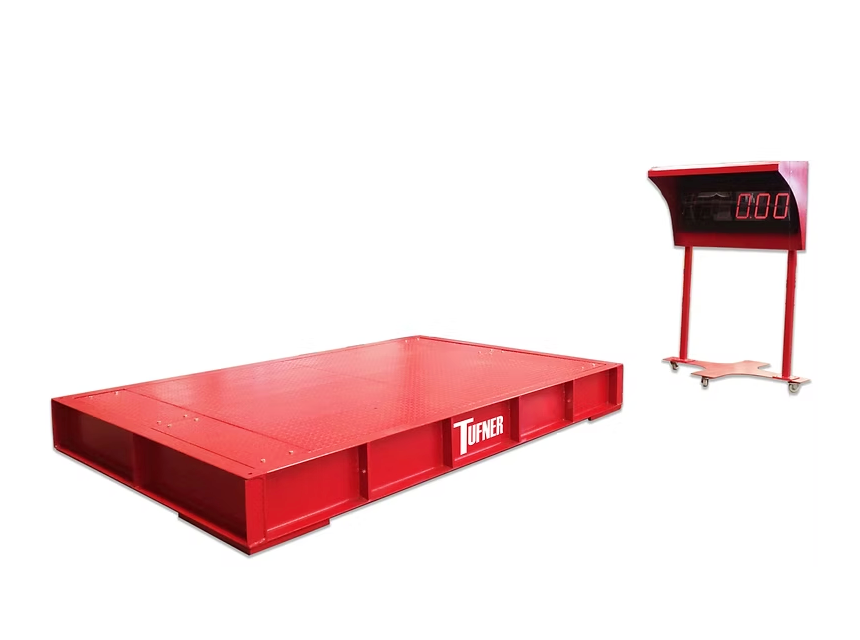

The TUF-MADE CVS Coil/Vehicle Scale works both as a coil floor scale and a portable axle scale, giving you flexibility in one rugged design. Enclosed in a portability frame with forklift access, it’s easy to transport and protected for heavy-duty use. With custom capacities and sizes (5’x5’ up to 10’x15’), NTEP-approved load cells, and 200% overload protection, this scale is built for hostile environments while ensuring reliable, accurate results. Its diamond plate deck, powder coat finish, and quick-connect 50’ cable make it a long-lasting solution for demanding industrial and vehicle weighing applications.

FEATURES

• Can be used both as a coil floor scale or portable vehicle axle scale
• Enclosed in the portability frame for protection and easy transportation

• Custom capabilities available
• Sizes: 5'x5' to 10'x15', custom sizes available
• Deck thickness 1/2 diamond plate
• Four double ended NTEP load cells
• 200% overload protection
• 50' quick connecting cable for hostile environments
• Powder coat finish
• Forklift portable

SPECIFICATION

• MATERIAL: Powder Coated Steel

• OVERLOAD PROTECTION: 200%
• CAPACITY: 40,000 lbs - 200,000 lbs
• PLATFORM LENGTH: 5-12 ft
• CABLE LENGTH: 50 ft
• APPROVAL: NTEP, Class III L
• WARRANTY: Weldment: 5 years platform
  Load cells: 2 years
  All other components: 1 year


OPTIONS/ ACCESSORIES

• Scoreboard
• Portable big display stand
• Data logging software
• Indicator Stand
• Printer
