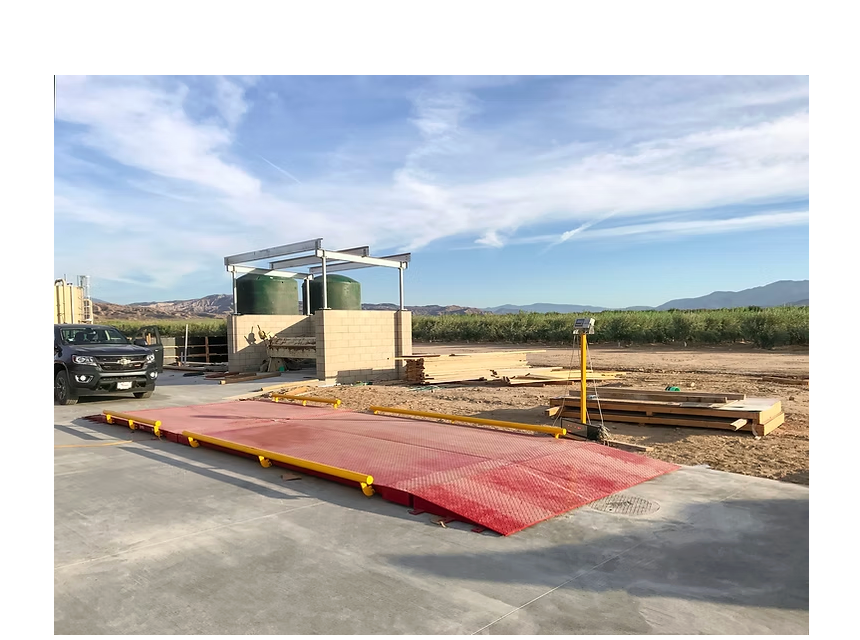

TUF-Loader Portable Low Profile Vehicle Scale

by Optima Scale

$14,469.00 - $33,529.00

$14,469.00

$14,469.00 - $33,529.00

$14,469.00

Quantity

FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer warranty varies by model; see the product description or contact us for exact coverage.

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

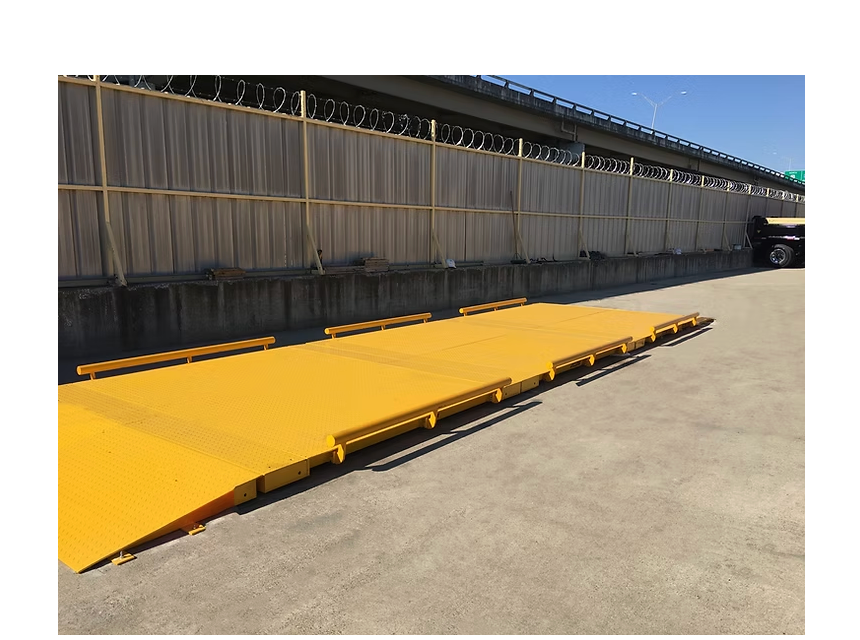

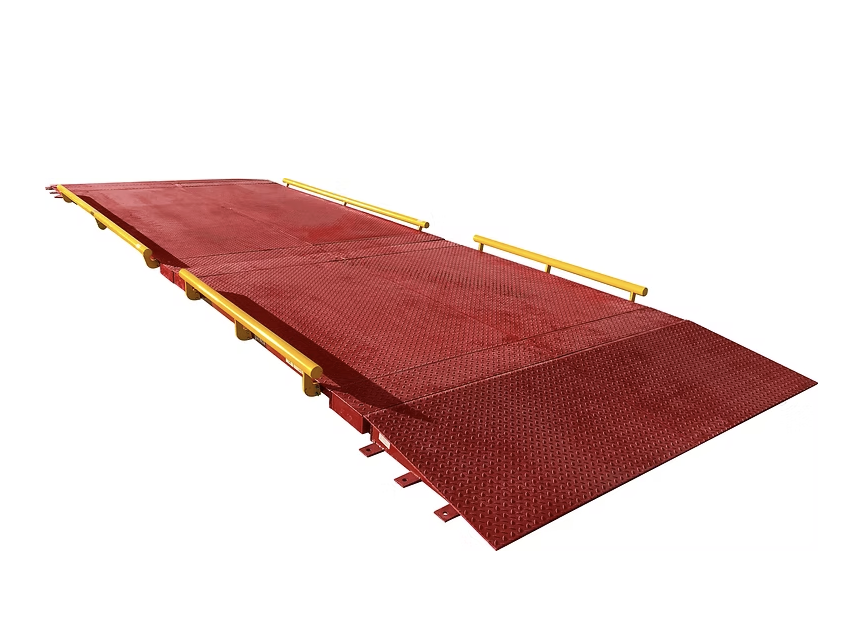

The TUF-Loader Portable Low Profile Vehicle Scale solves that with a 6” low-profile design, extra-large weighing surface, and long ramps for smooth drive-on/off access. Built with a steel diamond tread deck and premium watertight alloy steel load cells with 2.2X overload protection, it delivers accurate, durable performance indoors or outdoors. Its modular construction allows customization with additional panels, making it ideal for container weighing, pit installation, or portable use with ramps. Powder-coated for long-lasting strength, it’s simple to set up, relocate, and depend on.

FEATURES

Extra large weighing surface
Modular design allows customization with additional panels
Low 6' profile and long ramps make it easy to drive on and off
Steel diamond tread deck construction for tire grip
Four premium watertight alloy steel load cells that have a 2.2X overload protection

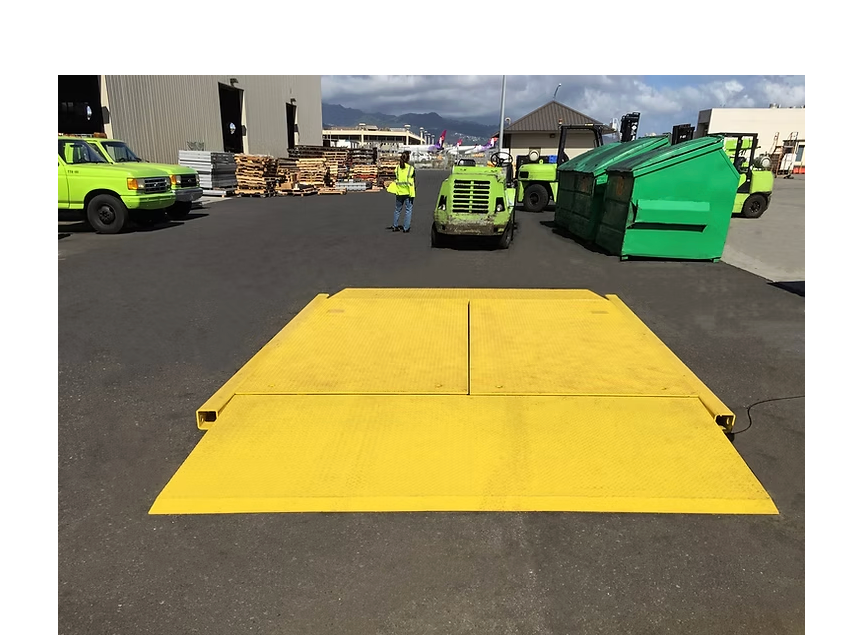

Set up is simple and allows for easy relocation

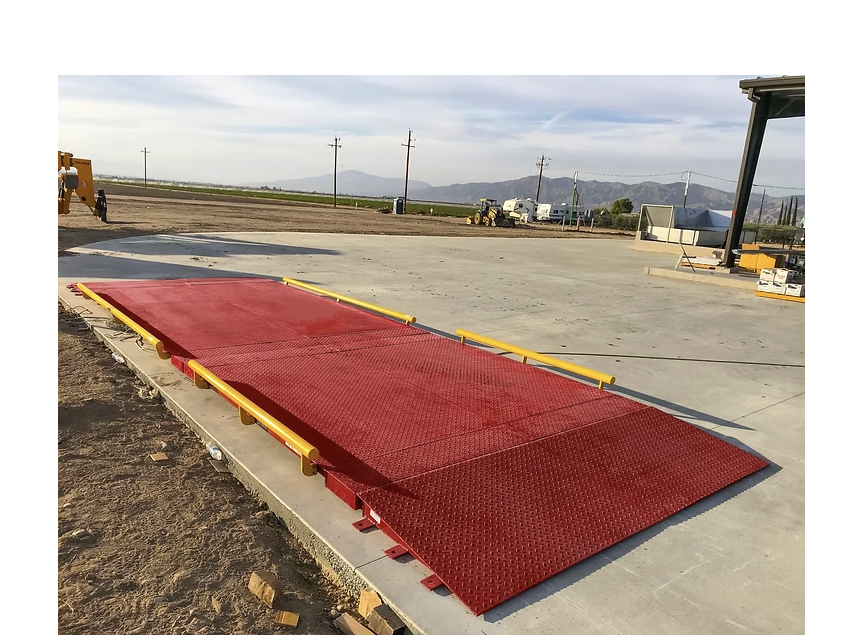

Can be installed above ground with ramps or in-ground as a pit scale
For indoor or outdoor use

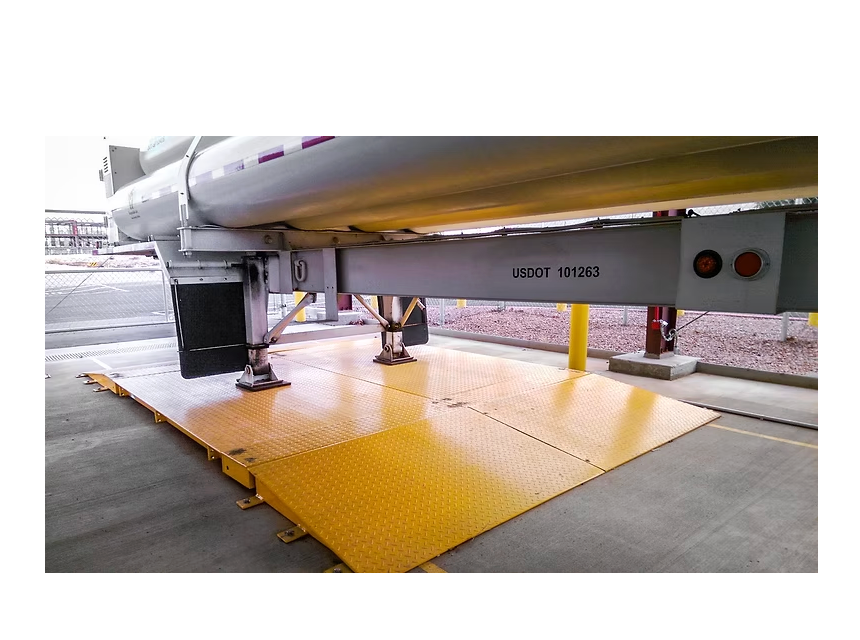

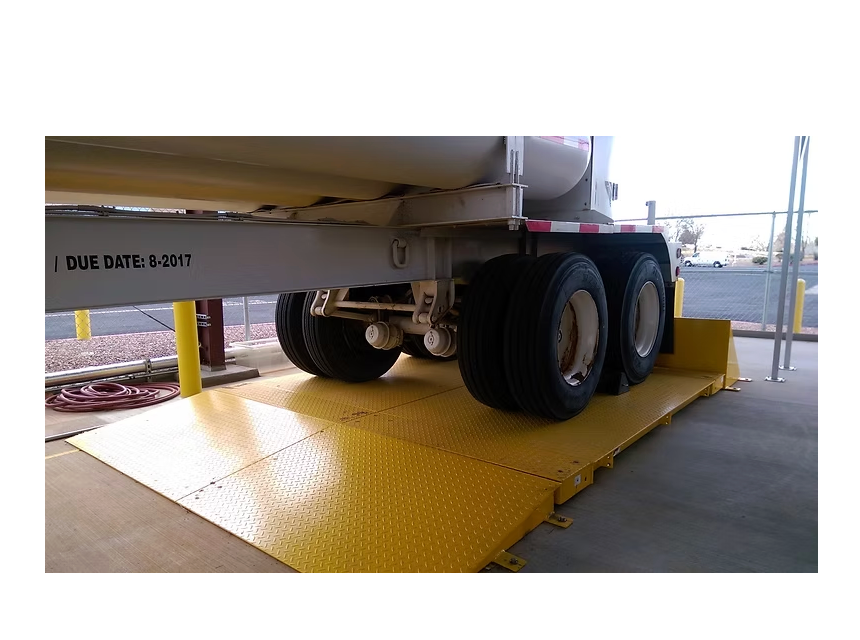

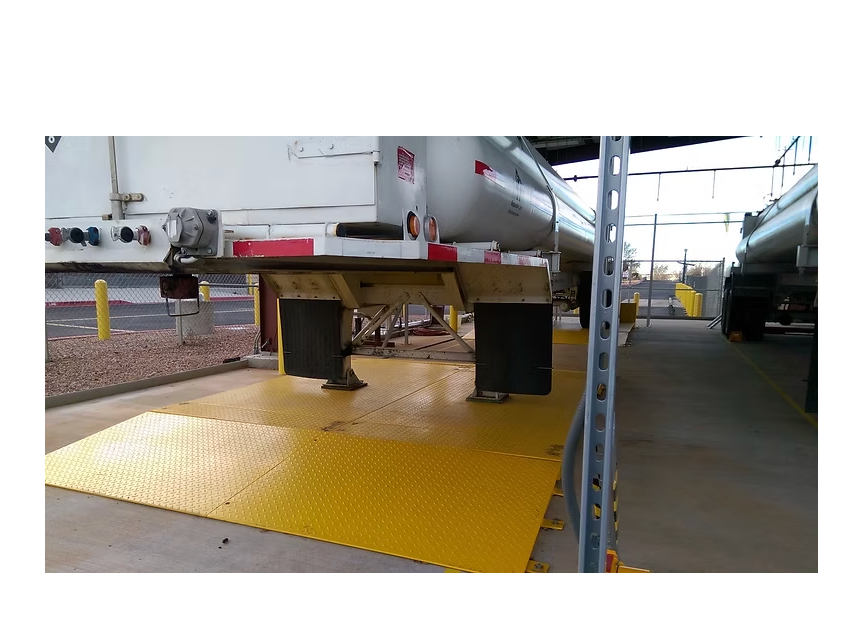

Perfect for container weighing
Durable powder coat finish

SPECIFICATION

MODEL NUMBER	Capacity	Platform	Ramps	Overall Dimensions
TL-61010	60,000 lb x 10 lb	10’ x 10’	10’ x 40”	118” W x 198” L x 5.75” H
TL-61015	60,000 lb x 10 lb	10’ x 15’	10’ x 40”	118” W x 258” L x 5.75” H
TL-1201020	120,000 lb x 10 lb	10’ x 20’	10’ x 40”	118” W x 316” L x 5.75” H
TL-1201025	150,000 lb x 10 lb	10’ x 25’	10’ x 40”	118” W x 380” L x 5.75” H
TL-1501030	150,000 lb x 10 lb	10’ x 30’	10’ x 40”	118” W x 434” L x 5.75” H

MATERIAL: Heavy Duty Steel
OVERLOAD PROTECTION: 200%
CAPACITY: 60,000 lbs - 150,000 lbs
RAMP LENGTH: 3.4 ft (40 in)
CABLE LENGTH: 50 ft
APPROVAL: NTEP CC: 17-034A1
WARRANTY: 5 years on platform
2 years on electronics

OPTIONS/ ACCESSORIES

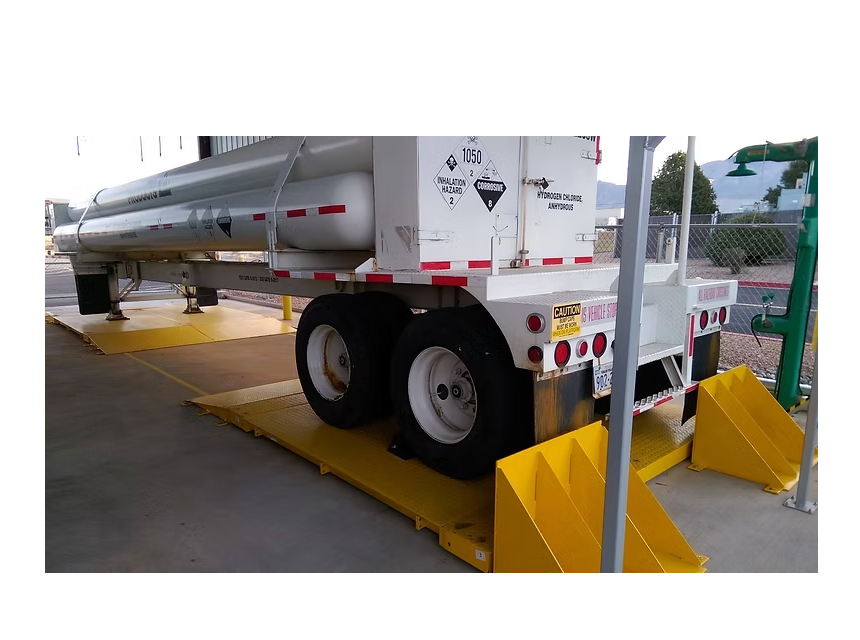

Stoppers
10ft approaches per NTEP requirement
Data logging software
Label/Table printer
Indicator stand
Scoreboard

INCLUDES

Platforms
2 ramps (for above ground)
Heavy duty metal cable with waterproof protective outer coating
2 side-rails (can be removed for pit installations)

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Compare available configurations

Compare configurations and prices below. Select a configuration to view that option above before adding it to your cart.

Configuration	Price	Select configuration
60000 lb x 10 lb \| 118” W x 198” L x 5.75” H	$14,469.00	Select
60000 lb x 10 lb \| 118” W x 258” L x 5.75” H	$18,849.00	Select
120000 lb x 10 lb \| 118” W x 316” L x 5.75” H	$23,659.00	Select
150000 lb x 10 lb \| 118” W x 380” L x 5.75” H	$29,969.00	Select
150000 lb x 10 lb \| 118” W x 434” L x 5.75” H	$33,529.00	Select
