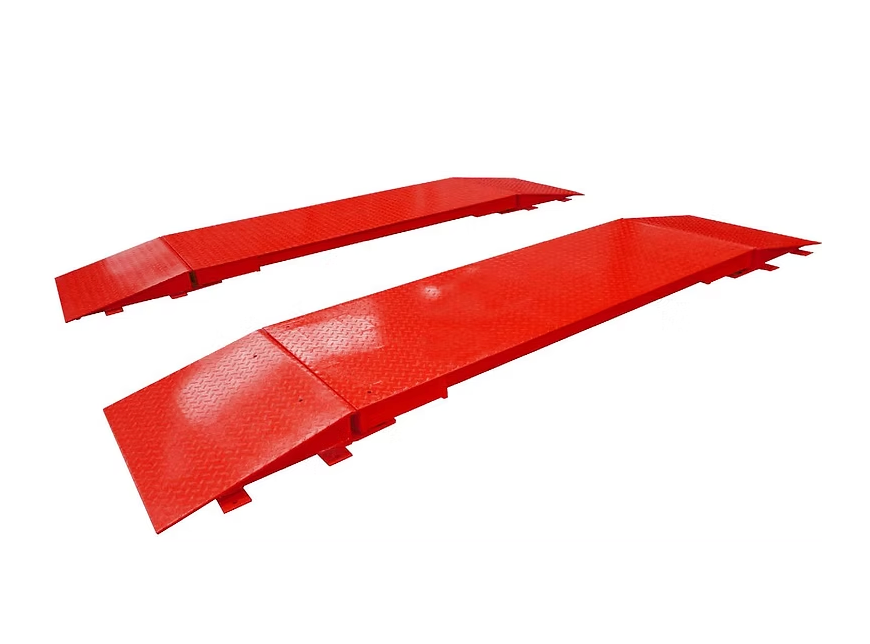

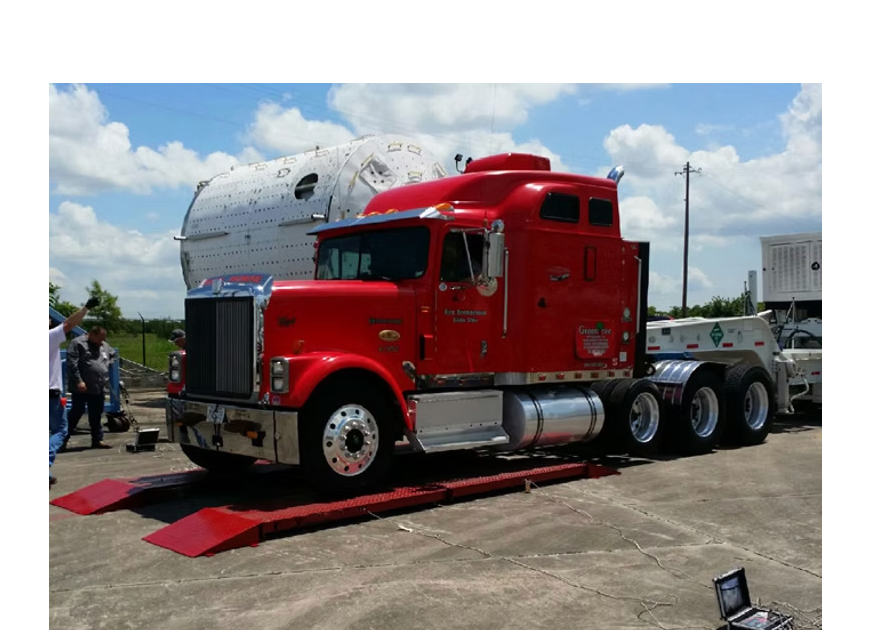

The TUF-AX Axle Scale built with a large weighing surface, low 5.75” profile, and treaded top plate, it allows smooth and secure vehicle weighing for trucks, trailers, and heavy-duty equipment. Featuring four premium watertight alloy steel nickel-plated load cells with overload protection, this axle scale is designed for both permanent pit installations or portable above-ground setups with ramps. Durable, forklift-portable, and powder-coated for longevity, it delivers consistent accuracy even in tough environments.
FEATURES
- Helps prevent overweight fines and ensures safe optimum loading
- Large weighing surface and low profile for easy vehicle weighing
- Heavy-duty durable platform with treaded top plate for tire grip
- Four premium watertight alloy steel nickel-plated load cells
- Low profile 5.75” height for smooth drive on/off
- Load cell capacity is 2.2 times the scale capacity for overload protection
- 50’ quick connecting cables (2) for hostile environments
- Can be used with ramps for above ground installations or flush with
concrete for a pit-installed permanent application
- Powder coating finish
- Forklift portable
SPECIFICATION
|
MODEL NUMBER
|
Capacity
|
Platform Length
|
Overall Dimensions
|
|
TAX-607
|
60,000 lb x 10 lb / 30 ton
|
7 ft
|
32” W x 137” L x 5.75” H
|
|
TAX-8012
|
80,000 lb x 10 lb / 40 ton
|
12 ft
|
32” W x 194” L x 5.75” H
|
|
TAX-8025
|
80,000 lb x 10 lb / 40 ton
|
25 ft
|
32” W x 350” L x 5.75” H
|
-
MATERIAL: Powder Coated Steel
(Aluminum plates available)
-
OVERLOAD PROTECTION: 200%
-
INDICATOR: T900 NTEP approved
-
POWER: AC/DC, built-in rechargeable
battery (100 hrs)
-
CAPACITY:60,000 lbs - 80,000 lbs
-
RAMP LENGTH: 2.1 ft (25 in)
-
WARRANTY: 1 year limited warranty on electronics
2 year limited warranty on platform
INCLUDES
- NEMA 4 stainless steel NTEP LCD display
- Rechargeable battery (up to 100hrs)
- NEMA 4 stainless steel junction box
OPTIONS
- Scoreboard
- Wireless
- Data logging software
- Ticket printer
- Indicator stand
