TC97 Tension Link Scale

by Optima Scale

$1,209.00 - $3,649.00

$1,209.00

$1,209.00 - $3,649.00

$1,209.00

Quantity

FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer warranty varies by model; see the product description or contact us for exact coverage.

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

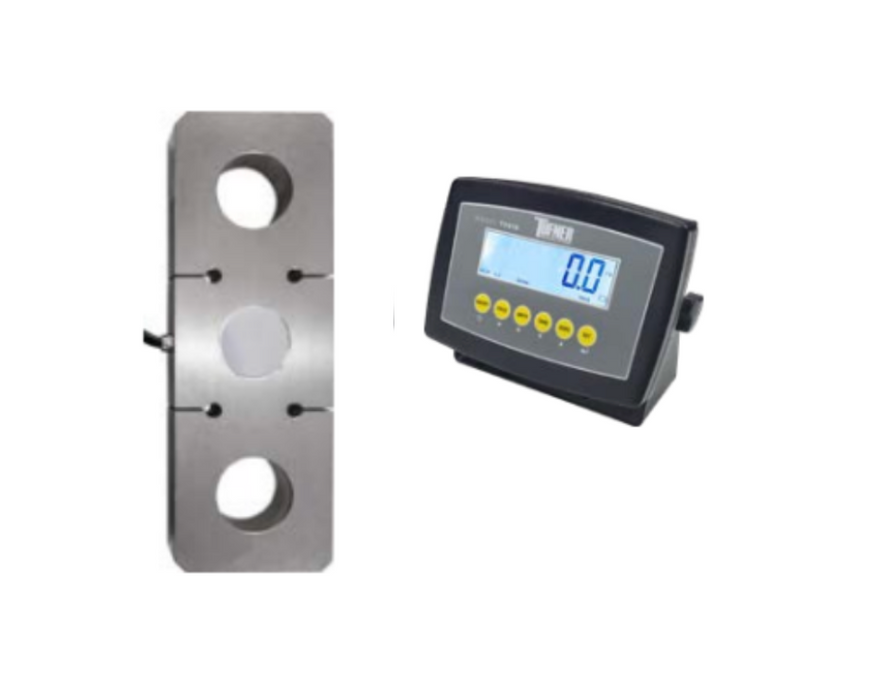

The TC97 Tension Link Scale is a cost-effective and durable solution for processing, monitoring, and controlling overhead loads. Designed for use with cranes, hoists, and winches, it measures high-capacity loads with precision. Featuring a nickel-plated IP67 corrosion-resistant load cell, sealed indicator with LED or LCD display, and rechargeable battery, this scale ensures dependable performance in demanding environments. With selectable weighing units (lb/kg) and peak/average hold functions, the TC97 delivers consistent and accurate readings for industrial lifting applications.

FEATURES

Cost-effective solution for processing, monitoring and controlling over-
head loads
Used with shackles to measure force
Designed to measure high-capacity load for cranes, hoists and winches

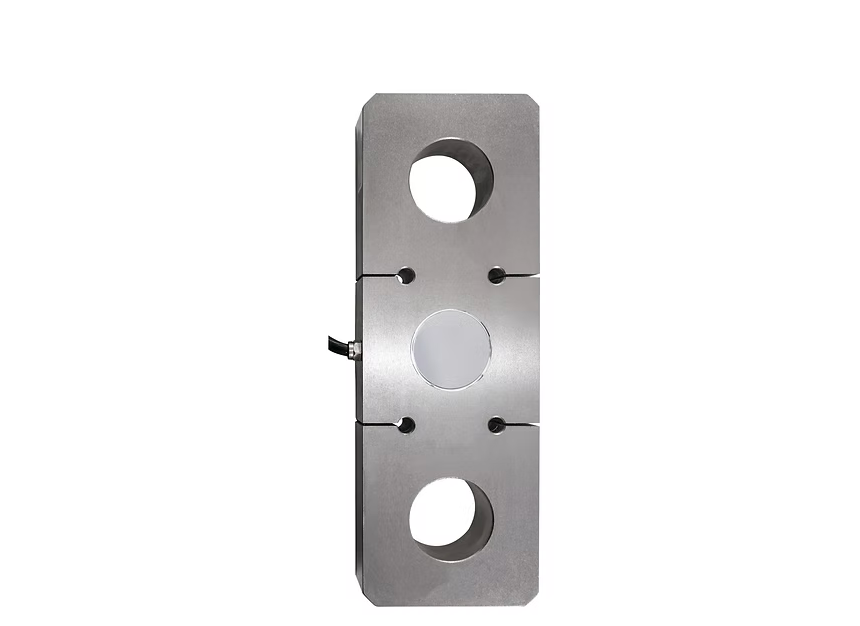

Nickel plated IP67 corrosion resistant load cell
ABS sealed indicator with LED or LCD display and rechargeable battery
Peak hold and average hold features
Selectable weighing units: lb and kg
26’ load cell cable (longer options available)

SPECIFICATION

MODEL NUMBER	CAPACITY
TC97-20	20,000 lb x 5 lb
TC97-50	50,000 lb x 10 lb
TC97-100	100,000 lb x 50 lb
TC97-150	150,000 lb x 75 lb
TC97-200	200,000 lb x 100 lb

ACCURACY CLASS: 5000e
TIME TO STABLE READING: <8 seconds
OVERLOAD PROTECTION: 200%
OVERLOAD ALARM: 100% F.S.+9e
DISPLAY: 6 digit LCD
POWER: 100~240VAC @ 50/60Hz
OPERATING TEMPERATURE: 14 °F to 104 °F ≤90%RH
WARRANTY: 1 year limited warranty

OPTIONS/ ACCESSORIES

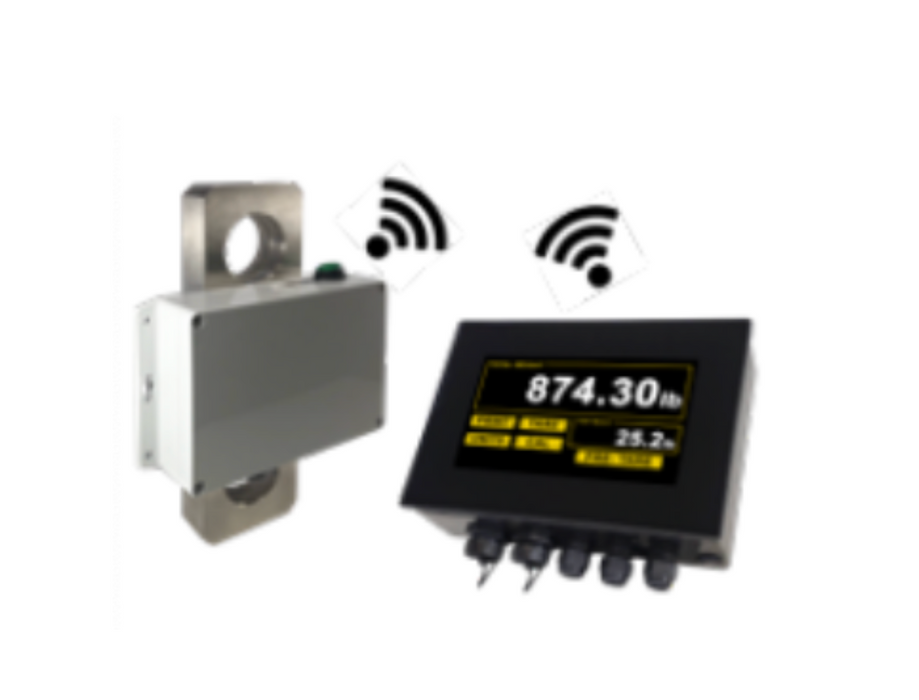

Wireless communication
Indicator Upgrade
Stainless Steel waterproof upgrade

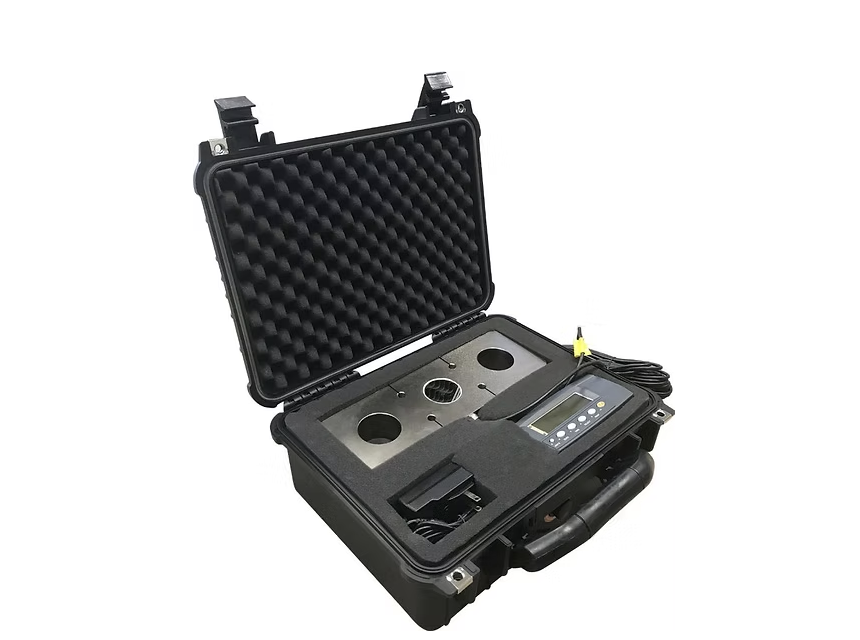

Waterproof hard case
Scoreboard
Indicator stand
Software

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Compare available configurations

Compare configurations and prices below. Select a configuration to view that option above before adding it to your cart.

Configuration	Price	Select configuration
20000 lb x 5 lb	$1,209.00	Select
50000 lb x 10 lb	$1,559.00	Select
100000 lb x 50 lb	$2,129.00	Select
150000 lb x 75 lb	$2,719.00	Select
200000 lb x 100 lb	$3,649.00	Select

Need help choosing the right configuration?

Tell us what you are weighing, the required capacity and accuracy, and how the scale will be installed. We can help narrow the options before you order.

Call (941) 257-3293 Email product support
