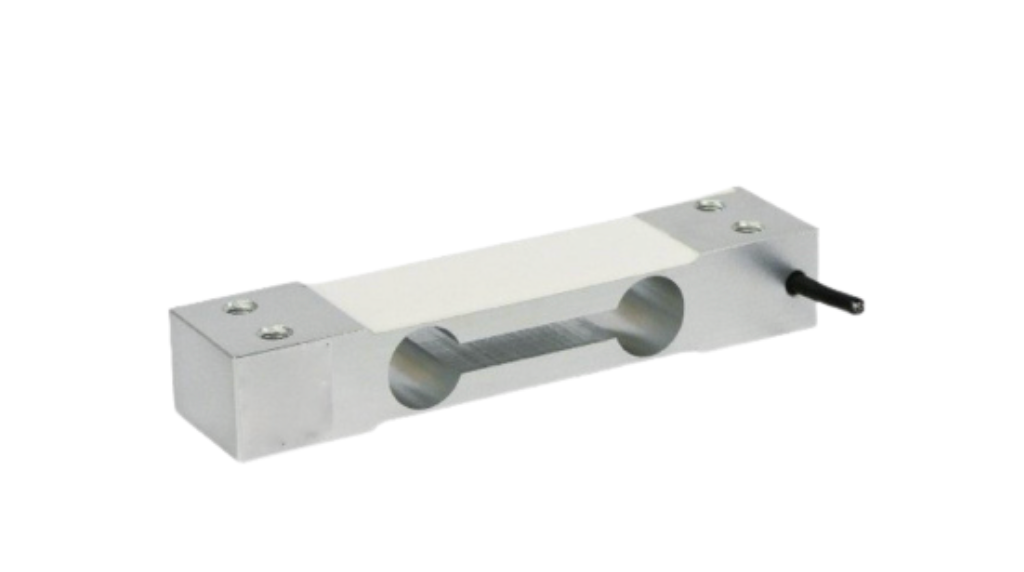

T373 Single-Ended Beam, Aluminum Load Cell

T373 Single-Ended Beam, Aluminum Load Cell

by Optima Scale
$179.00 - $179.00
$179.00
$179.00 - $179.00
$179.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T373 Single-Ended Beam Load Cell is crafted from lightweight yet durable aluminum, delivering accurate and consistent performance without unnecessary bulk. Designed for platform scales, bench scales, and other compact weighing systems, it provides both efficiency and precision. With its reliable design, the T373 ensures stable measurement results, making it the practical solution for modern weighing needs.

SPECIFICATION



MODEL NUMBER

CAPACITY

T373-3

3 kg

T373-5

5 kg

T373-6

6 kg

T373-10

10 kg

T373-15

15 kg

T373-20

20 kg

T373-30

30 kg

T373-40

40 kg

T373-50

50 kg

T373-60

60 kg

T373-100

100 kg

T373-120

120 kg


  • Rated Capacity: KG:3/5/6/10/15/20/30/40/50/60/100/120
  • Rated Output: 2.0±0.2 mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.02% F.S.
  • Repeatability: ±0.02% F.S.
  • Creep (30 minutes): ±0.017% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 405±10Ω
  • Output Impedance: 350±3Ω
  • Safe Overload: 150% F.S
  • Excitation Recommended: 9-12V AC/DC
  • Material/Finish: Aluminum
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard: 10ft/3m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Celtron : 41150
  • Celtron : LPS-LE 100 kg
  • Coti Global Sensors : CG-22
  • Tedea : 1022 100 kg
  • Virtual : VLC-134

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
