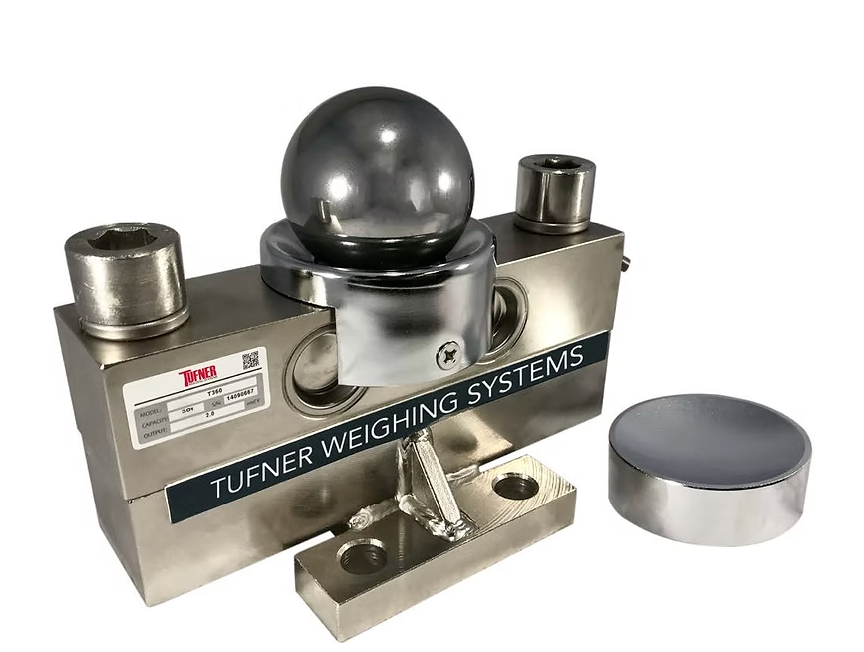

T360 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

T360 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

by Optima Scale
$699.00 - $899.00
$699.00
$699.00 - $899.00
$699.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T360 Double-Ended Beam Load Cell delivers dependable strength and precision even in harsh industrial environments. With an IP67 rating, it ensures protection against dust and water, making it ideal for heavy-duty weighing systems that demand long-lasting reliability. Imagine seamless, consistent performance in your truck scales, tank weighing, or industrial platforms—this load cell is designed to be the solution for accurate and durable measurement.

SPECIFICATION



MODEL NUMBER

CAPACITY

T360-5

5 tons

T360-10

10 tons

T360-15

15 tons

T360-20

20 tons

T360-25

25 tons

T360-30

30 tons

T360-40

40 tons

T360-50

50 tons


  • Rated Capacity: tons: 5/10/15/20/25/30/40/50
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.02% F.S.
  • Hysteresis: ±0.02% F.S.
  • Repeatability: ±0.2% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S./C
  • Insulation Resistance: >5000 MEGOHMS
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Input Impedance: 700±10Ω
  • Output Impedance: 700±5Ω
  • Safe Overload: 150% F.S
  • Destructive Overload: 200% F.S.
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel
  • Cable Length: STANDARD/DOUBLE SHIELDED
    5t - 20t: 40ft/12m
    25t- 50t: 60ft/18m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Anyload: 102AH

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
