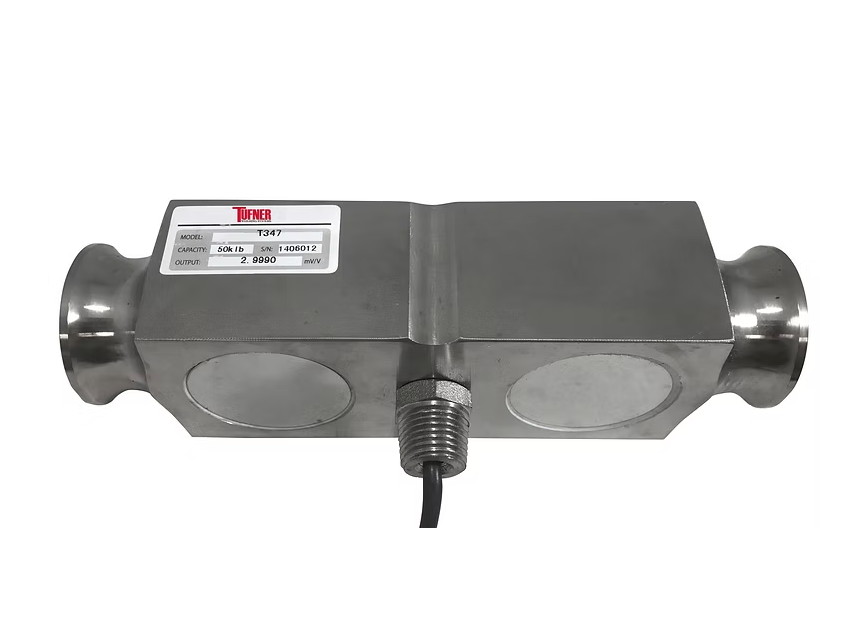

T347 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

T347 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

by Optima Scale
$649.00 - $649.00
$649.00
$649.00 - $649.00
$649.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T347 Double-Ended Beam, Nickel-Plated Alloy Steel Load Cell | IP67 is engineered to deliver dependable accuracy in tough industrial conditions. With its nickel-plated finish and IP67 protection, this load cell provides excellent resistance against moisture and dust, ensuring long-lasting performance. Ideal for truck scales, floor scales, and heavy-duty weighing systems, the T347 gives you confidence that your operations run smoothly and efficiently with precise weight readings.

SPECIFICATION



MODEL NUMBER

CAPACITY

T347-50

50,000 lbs

T347-60

60,000 lbs


  • Rated Capacity: lb: 50K/60K
  • Rated Output: 3.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.2% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S./C
  • Insulation Resistance: >5000 MEGOHMS
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Input Resistance: 700±10Ω
  • Output Resistance: 700±5Ω
  • Safe Overload: 150% F.S
  • Destructive Overload: 300% F.S.
  • Excitation Recommended: 10-20V AC/DC
  • Approval: CC 15-022
  • Material/Finish: Alloy Steel
  • Cable Length: Double-Shielded: 60ft/18m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Airweigh: AW900 (50K SE)
  • Airweigh: AW900B (60K SE)
  • NV Technology: BLC-1 60K-N
  • Revere: 9423
  • Sensortronics: 65040-1134
  • Sooner Scale: 80210

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
