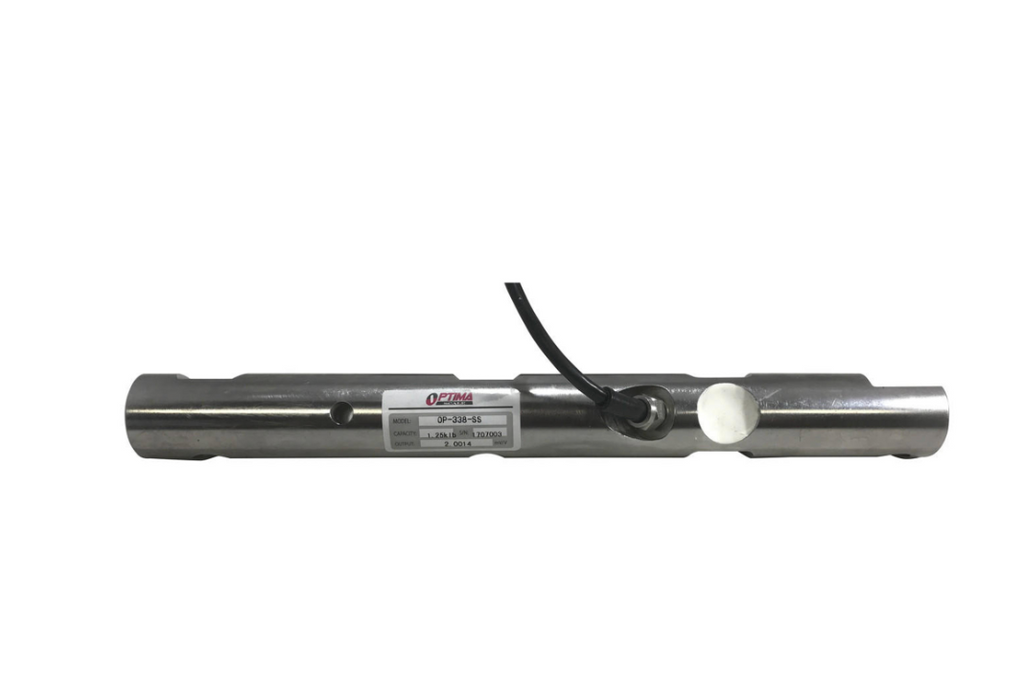

T338 Single-Ended Beam, Alloy Steel, & Stainless Steel Load Cell | IP67, Welded Sealed

T338 Single-Ended Beam, Alloy Steel, & Stainless Steel Load Cell | IP67, Welded Sealed

by Optima Scale
$499.00 - $529.00
$499.00
$499.00 - $529.00
$499.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T338 Single-Ended Beam combines the strength of alloy steel and the corrosion resistance of stainless steel, making it a reliable choice for both rugged and sensitive applications. With IP67 welded sealing, it ensures protection against dust and moisture, delivering accurate performance even in challenging industrial conditions. Ideal for platform scales, hopper systems, and process weighing, this load cell provides durability, precision, and long-term dependability in your weighing operations.

SPECIFICATION



MODEL NUMBER

MATERIAL

CAPACITY

T338-1.25

Alloy Steel

1.25K lb

T338-2.5

Alloy Steel

2.5K lb

T338SS-1.25

Stainless Steel

1.25K lb

T338SS-2.5

Stainless Steel

2.5K lb


  • Rated Capacity: lb:1.25K/2.5K kg: 2,268/4,536
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.02% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 385±20Ω
  • Output Impedance: 350±3Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel /Stainless Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Weigh-Tronix: WBL
  • Weigh-Tronix: CG-WBL-SS

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
