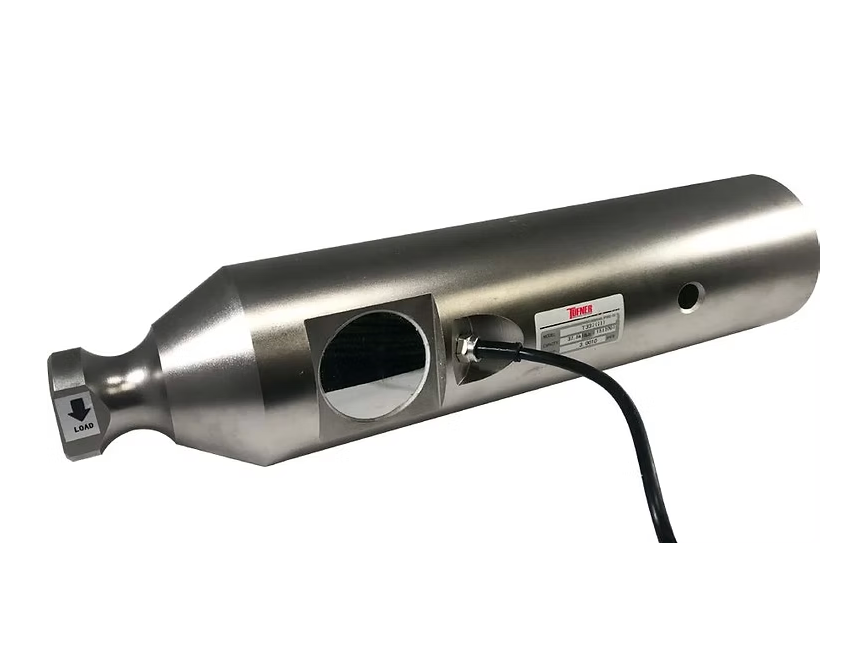

T337 Single-Ended Beam, Alloy Steel Load Cell

T337 Single-Ended Beam, Alloy Steel Load Cell

by Optima Scale
$399.00 - $899.00
$399.00
$399.00 - $899.00
$399.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T337 Single-Ended Beam, engineered from durable alloy steel, is designed for precise performance under heavy loads. With its rugged construction and dependable accuracy, this load cell is ideal for industrial floor scales, tank weighing, and other demanding applications. Picture smoother operations and reliable measurements every time—this alloy steel load cell is the solution for both strength and precision in your weighing systems.

SPECIFICATION



MODEL NUMBER

CAPACITY

T337-1.25

1.25K lb

T337-2.5

2.5K lb

T337-5

5K lb

T337-10

10K lb

T337-25

25K lb

T337-37.5

37.5K lb

T337-50II

50K lb

T337-50IV

50K lb

T337-60IV

60K lb

T337-60I

60K lb

T337-75

75K lb


  • Rated Capacity: lb:1.25K/2.5K/5K/10K/25K/37.5K/50K/60K/75K
    kg: 567/1,134/2,268/4,536/11,340/17,010/22,680/22,680/27,216/27,216/34,020
  • Rated Output: 2.0mV/V: 1.25K/2.5K/5K/10K/25K
    3.0mV/V: 37.5K/50K/60K/75K
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.02% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 385±20Ω
  • Output Impedance: 350±3Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Coti Global Sensors: CG-WB-SS
  • Rice Lake: RL75000 SS
  • Weigh-Tronix: 13498-0127 5K
  • Weigh-Tronix: WBT Series Chainlink Style
  • Weigh-Tronix: Weighbar

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
