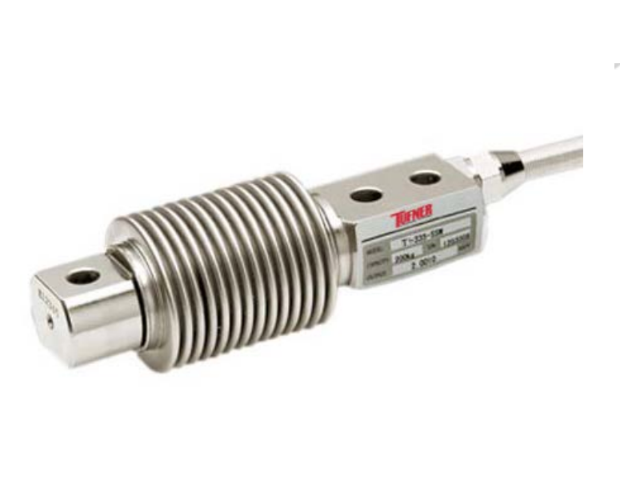

T335-SSW Single-Ended Beam, Stainless Steel Load Cell | IP68 NTEP 1:5,000 Class III Multiple Cell

T335-SSW Single-Ended Beam, Stainless Steel Load Cell | IP68 NTEP 1:5,000 Class III Multiple Cell

by Optima Scale
$399.00 - $399.00
$399.00
$399.00 - $399.00
$399.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T335-SSW Single-Ended Beam, crafted from stainless steel, is built to withstand the toughest environments while delivering precise and consistent results. With its IP68 welded seal and NTEP 1:5,000 Class III certification, this load cell ensures accuracy even in demanding multiple-cell weighing applications. Imagine the confidence of knowing your measurements stay reliable, whether for industrial scales, floor scales, or process weighing. The T335-SSW is your solution for dependable performance and long-lasting durability in stainless steel weighing technology.

SPECIFICATION



Model Number

Capacity

T335-SSW-5

5 kg

T335-SSW-10

10 kg

T335-SSW-20

20 kg

T335-SSW-50

50 kg

T335-SSW-100

100 kg

T335-SSW-200

200 kg


  • Rated Capacity: lb: 11/22/33/44/110/220/440
    kg: 5/10/15/20/50/100/200
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.01% F.S.
  • Creep (30 minutes): ±0.02% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 380±20Ω
  • Output Impedance: 350±3Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Stainless Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Cardinal: CB6
  • Celtron: HBB
  • Coti Global Sensors: CG-Z6
  • HBM: Z6
  • Mettler-Toledo: MTB
  • Revere: SHB
  • Rice Lake: RLHBB
  • Tedea: 335
  • Totalcomp: TZ6

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
