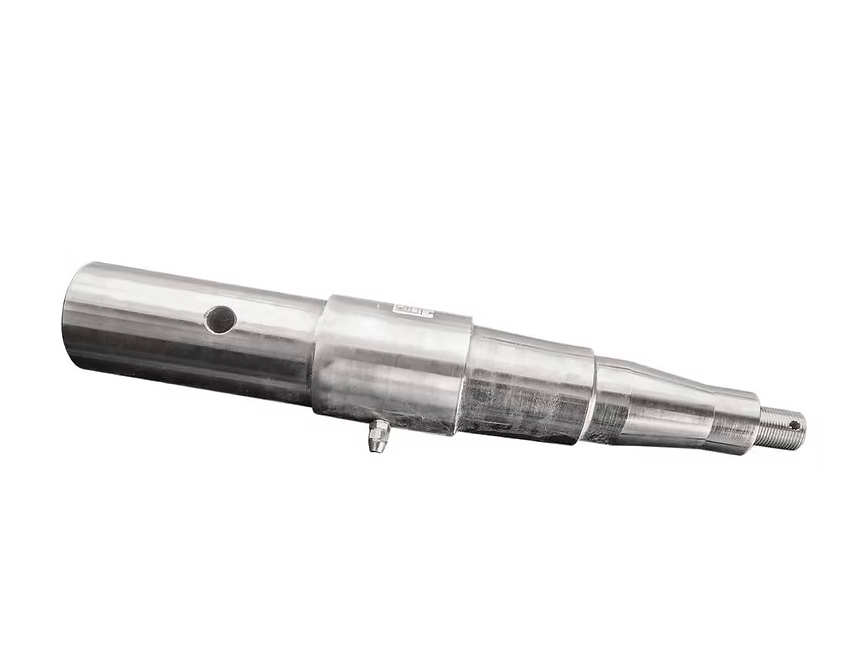

T318 Single-Ended Beam, Alloy Steel Load Cell

T318 Single-Ended Beam, Alloy Steel Load Cell

by Optima Scale
$949.00 - $949.00
$949.00
$949.00 - $949.00
$949.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T318 Single-Ended Beam, Alloy Steel is designed to deliver reliable performance under demanding industrial conditions. Built with high-strength alloy steel, this load cell ensures long-lasting durability and accurate weight measurement, even in environments where heavy loads are an everyday challenge.

Ideal for floor scales, tank weighing, and other multiple-cell applications, the T318 provides precise and stable readings you can depend on. If you’ve been searching for a dependable alloy steel single-ended beam load cell, this is the solution that keeps your weighing system strong, consistent, and efficient.

SPECIFICATION

MODEL NUMBER

CAPACITY

T318-5

5,000 lbs


  • Rated Capacity: 5K lb
  • Rated Output: 1.5mV/V
  • Non-Linearity: ±0.01% F.S.
  • Hysteresis: ±0.01% F.S.
  • Repeatability: ±0.05% F.S.
  • Creep (30 minutes): ±0.05% F.S.
  • Temperature Effect on Span: ±0.03% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 385±20Ω
  • Output Impedance: 350±3Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-15V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Digi-star: DA&SA

    SHIPPING & SUPPORT

    We offer FREE SHIPPING to Lower 48 United States

    This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

    Have questions or need help choosing the right model and scale accessories?
    Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
