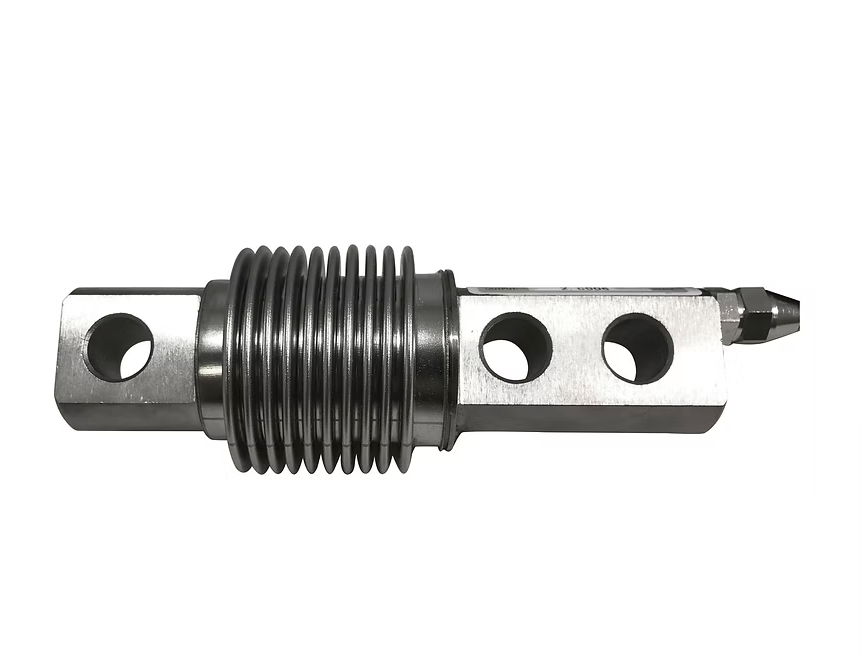

T316 Single-Ended Beam, Alloy Steel Load Cell

T316 Single-Ended Beam, Alloy Steel Load Cell

by Optima Scale
$399.00 - $399.00
$399.00
$399.00 - $399.00
$399.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T316 Single-Ended Beam, Alloy Steel delivers precision and durability for demanding weighing applications. Its robust alloy steel construction ensures strength and long-lasting reliability, while its engineered design provides consistent and accurate weight readings.

Imagine running your operations with confidence, knowing every load is measured with accuracy and stability. The T316 single-ended beam load cell is the dependable solution for industries that require both performance and durability. Perfect for scales, tanks, and hopper systems, it helps ensure precise results every time.

SPECIFICATION



MODEL NUMBER

CAPACITY

T316-15

15 kg

T316-30

30 kg

T316-50

50 kg

T316-75

75 kg

T316-150

150 kg

T316-250

250 kg

T316-300

300 kg


  • Rated Capacity: lb: 30/50/100/250/500/600
    kg: 15/30/50/75/150/250/300
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.02% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 385±20Ω
  • Output Impedance: 350±3Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-15V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

    • Coti Global Sensors: CG-LC22
    • First Weigh: LC22

    SHIPPING & SUPPORT

    We offer FREE SHIPPING to Lower 48 United States

    This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

    Have questions or need help choosing the right model and scale accessories?
    Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
