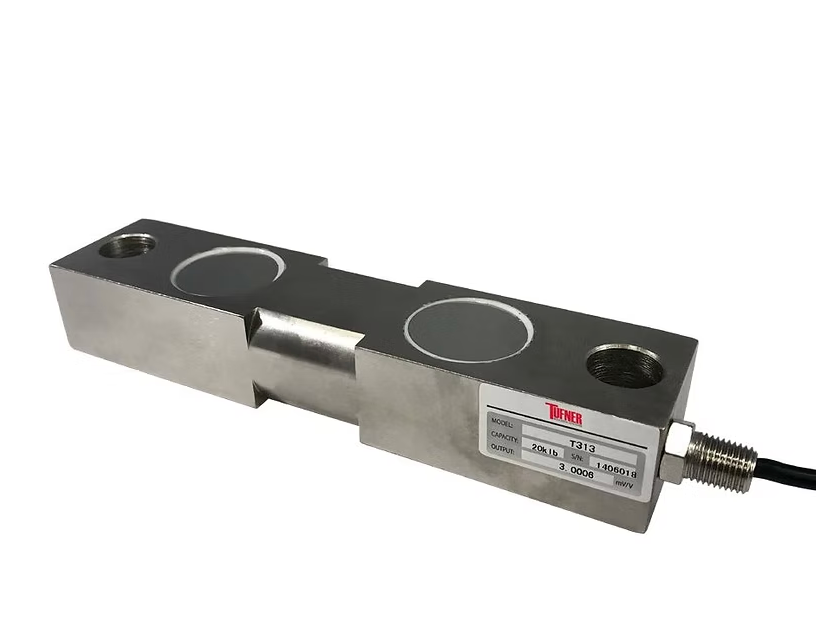

T313 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

T313 Double-Ended Beam, NICKEL-PLATED Alloy Steel Load Cell | IP67

by Optima Scale
$499.00 - $999.00
$499.00
$499.00 - $999.00
$499.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T313 Double-Ended Beam Load Cell, built from nickel-plated alloy steel, is engineered for durability and dependable accuracy. With an IP67 protection rating, it withstands tough environments while delivering consistent weight readings. Perfect for truck scales, heavy-duty platforms, and industrial weighing systems, this load cell provides the long-lasting performance you need for demanding applications.

SPECIFICATION



MODEL NUMBER

CAPACITY

T313-1

1,000 lbs

T313-1.5

1,500 lbs

T313-2

2,000 lbs

T313-2.5

2,500 lbs

T313-3

3,000 lbs

T313-5

5,000 lbs

T313-10

10,000 lbs

T313-15

15,000 lbs

T313-20

20,000 lbs

T313-25

25,000 lbs

T313-35

35,000 lbs

T313-50

50,000 lbs

T313-75

75,000 lbs

T313-100

100,000 lbs

T313-125

125,000 lbs


  • Rated Capacity: lb:  1K/1.5K/2K/2.5K/3K/5K/10K/15K/20K/25K/35K/50K/75K/100K/125K
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.03% F.S.
  • Hysteresis: ±0.03% F.S.
  • Repeatability: ±0.02% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S.
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 700±20Ω
  • Output Impedance: 700±3Ω
  • Safe Overload: 150% F.S
  • Destructive Load: 300% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Material/Finish: Alloy Steel
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
    White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Artech: 70510
  • Celtron: DSR
  • Coti Global Sensors: CG-16
  • Revere: 5203
  • Rice Lake: RL75016
  • Sensortronics: 65016
  • Totalcomp: DBS
  • Totalcomp: GDE16
  • Totalcomp: TDE16

WEIGHING MODULE AVAILABLE

  • T313-TM

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
