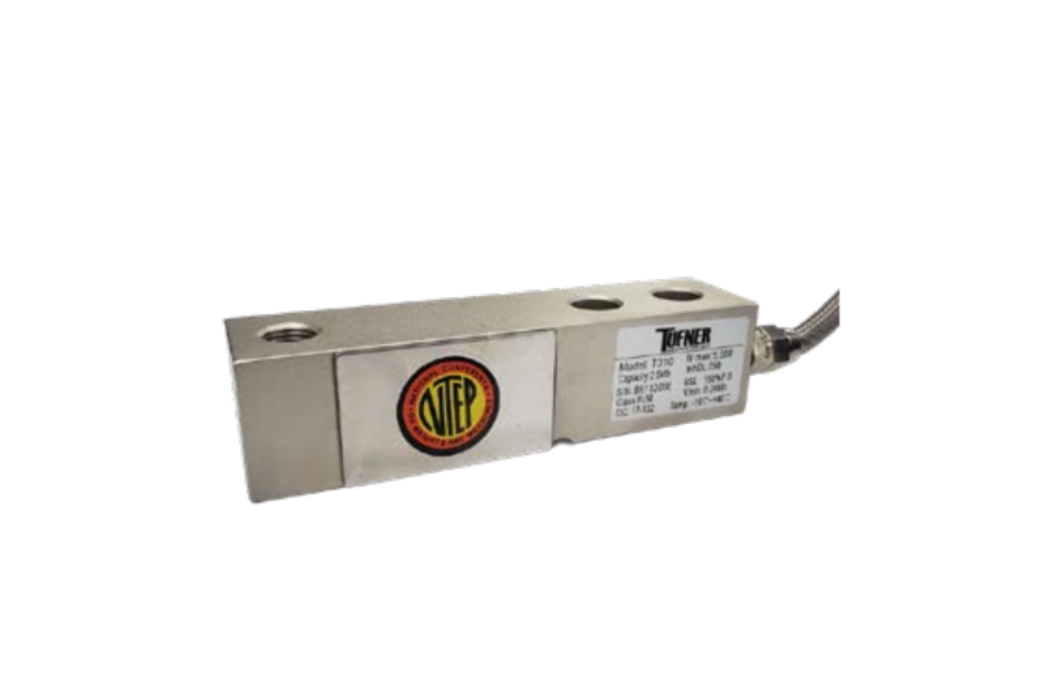

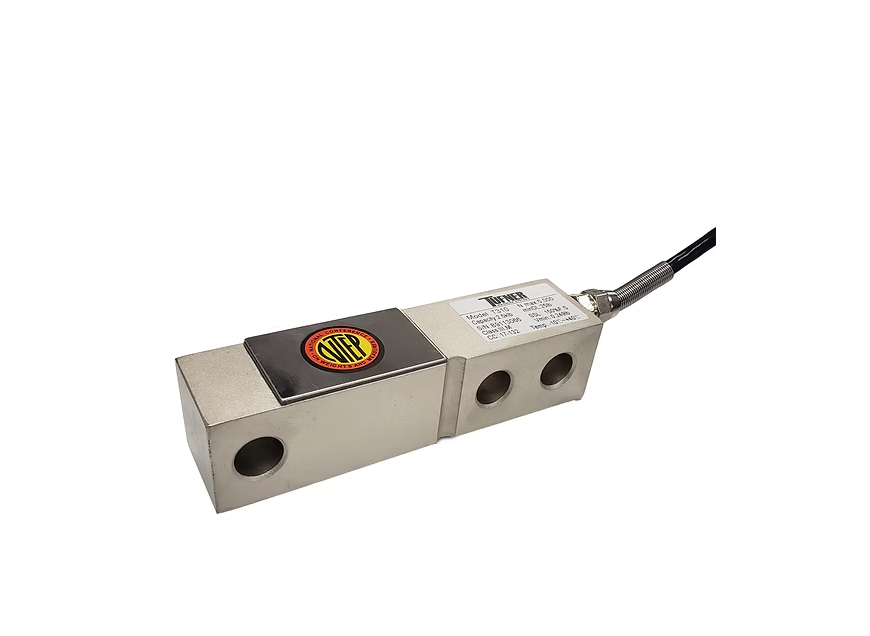

Name: T310 Single-Ended Beam, alloy Steel IP67 | NTEP 1:5,000 Class III Multiple Cell Load Cell
Brand: Optima Scale
SKU: T310-0.1
Price: 179.0 USD
Availability: InStock

T310 Single-Ended Beam, alloy Steel IP67 | NTEP 1:5,000 Class III Multiple Cell Load Cell

by Optima Scale

$179.00 - $399.00

$179.00

$179.00 - $399.00

$179.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

Quantity

The T310 Single-Ended Beam is crafted from high-quality alloy steel and features IP67 protection, ensuring reliable performance even in harsh environments. With NTEP 1:5,000 Class III multiple cell technology, it delivers precise measurements for industrial and commercial weighing applications. Designed for seamless integration and long-lasting accuracy, this load cell allows you to maintain confidence in every weight measurement.

SPECIFICATION

MODEL NUMBER	CAPACITY	ENVELOPE
T310-0.1	100 lbs*	Small
T310-0.25	250 lbs*	Small
T310-0.5	500 lbs*	Small
T310-0.75	750 lbs*	Small
T310-1	1,000 lbs	Small
T310-1.5	1,500 lbs	Small
T310-2.5	2,500 lbs	Small
T310-4	4,000 lbs	Small
T310-5	5,000 lbs	Small
T310LE-5	5,000 lbs	Large
T310-10	10,000 lbs*	Large
T310-15	15,000 lbs*	Large
T310-20	20,000 lbs*	Large

* Capacities under 1,000 lbs and over 10K not NTEP-approved

Rated Capacity: lb: 100/250/500/750/1K/1.5K/2K/2.5K/4K/5K/5K LE/10K/15K/20K
kg: 50/100/200/300/500/1,000/1,500/2,000/2,500/3,000/5,000/7,000/10,000
Rated Output: 3.0mV/V
Non-Linearity: ±0.03% F.S.
Approval: CC 17-132
Hysteresis: ±0.03% F.S.
Repeatability: ±0.02% F.S.
Creep (30 minutes): ±0.02% F.S.
Temperature Effect on Span: ±0.0015% F.S./C
Temperature Effect on Zero: ±0.0027% F.S./C
Zero Balance: ±1.00% F.S.
Insulation Resistance: >5000 MEGOHMS
Input Impedance: 385±20Ω
Output Impedance: 350±3Ω
Safe Overload: 150% F.S
Destructive Load: 300% F.S
Excitation Recommended: 10-15V AC/DC
Material/Finish: Alloy Steel
Operation Temperature: -10°C - + 40°C (14°F - 104°F)
Cable Length: Standard Cable - 20ft/6m
Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal
White...... -Signal

INTERCHANGEABLE PRODUCTS

Artech: 30310
Celtron: SQB
Coti Global Sensors: CG-23
HBM: A35
Revere: 5123

WEIGHING MODULES AVAILABLE

T310-TM

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
