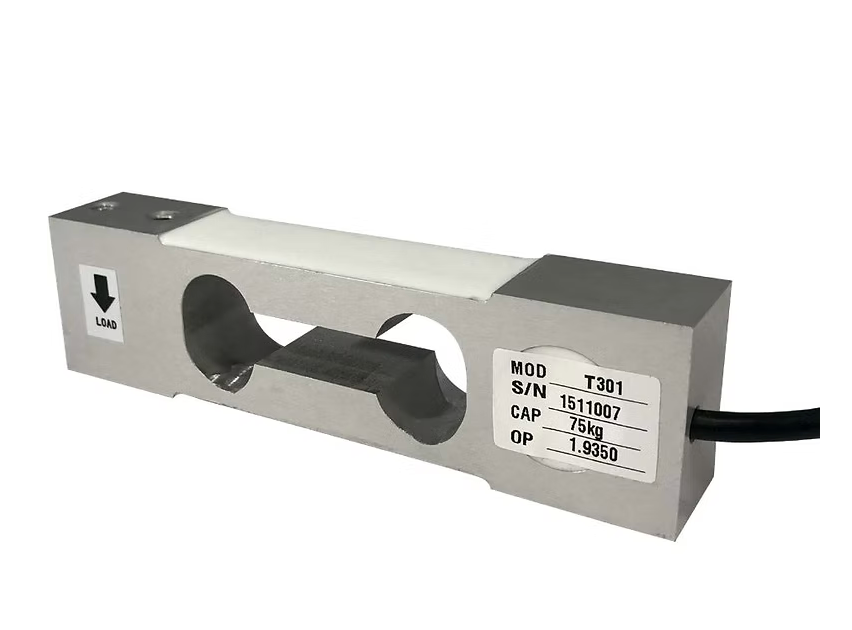

T301 Single Point Beam, Aluminum Load Cell | IP67

T301 Single Point Beam, Aluminum Load Cell | IP67

by Optima Scale
$169.00 - $189.00
$169.00
$169.00 - $189.00
$169.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The T301 Single Point Beam Load Cell is built from lightweight aluminum, making it ideal for compact platform scales and bench-scale applications. With IP67 sealing, it provides solid protection against dust and water, ensuring dependable accuracy in everyday weighing environments. Imagine a reliable, easy-to-integrate load cell that keeps your weighing system precise and consistent—the T301 delivers the performance you need with durability you can trust.

SPECIFICATION

MODEL NUMBER

CAPACITY

T301-3

3 kg

T301-5

5 kg

T301-7

7 kg

T301-10

10 kg

T301-15

15 kg

T301-20

20 kg

T301-30

30 kg

T301-50

50 kg

T301-75

75 kg

T301-100

100 kg


  • Rated Capacity:kg: 3/5/7/10/15/20/30/50/75/100
  • Rated Output: 2.0mV/V
  • Non-Linearity: ±0.02% F.S.
  • Hysteresis: ±0.02% F.S.
  • Repeatability: ±0.2% F.S.
  • Creep (30 minutes): ±0.03% F.S.
  • Temperature Effect on Span: ±0.0015% F.S./C
  • Temperature Effect on Zero: ±0.0027% F.S./C
  • Zero Balance: ±1.00% F.S./C
  • Insulation Resistance: >5000 MEGOHMS
  • Input Impedance: 410±10Ω
  • Output Impedance: 350±3Ω
  • Safe Overload: 150% F.S
  • Destructive Overload: 200% F.S.
  • Excitation Recommended: 4-12V AC/DC
  • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
  • Material/Finish: Aluminum
  • Cable Length: Standard Cable - 20ft/6m
  • Load Cell Wiring: Red........ +Excitation Black...... -Excitation Green..... +Signal White...... -Signal

INTERCHANGEABLE PRODUCTS

  • Cardinal: TSP



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
