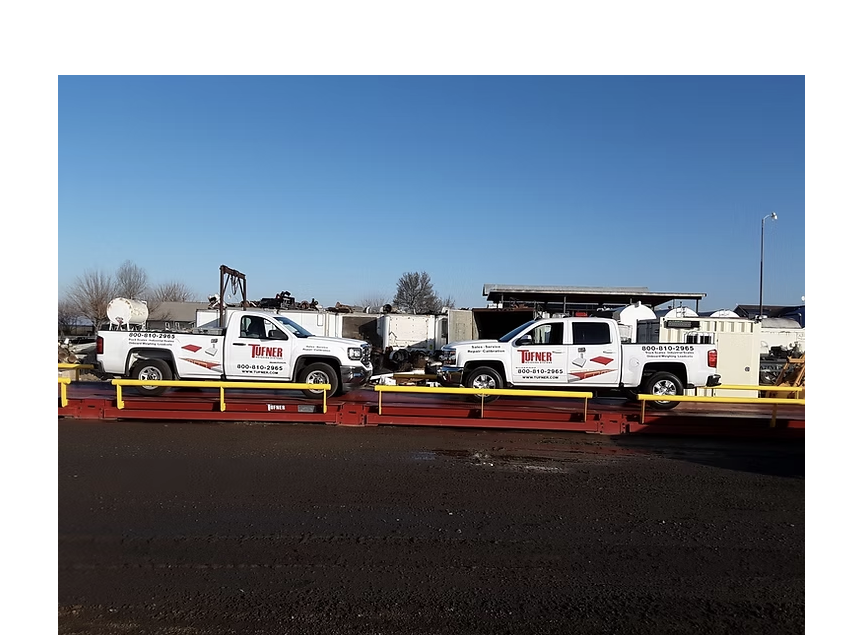

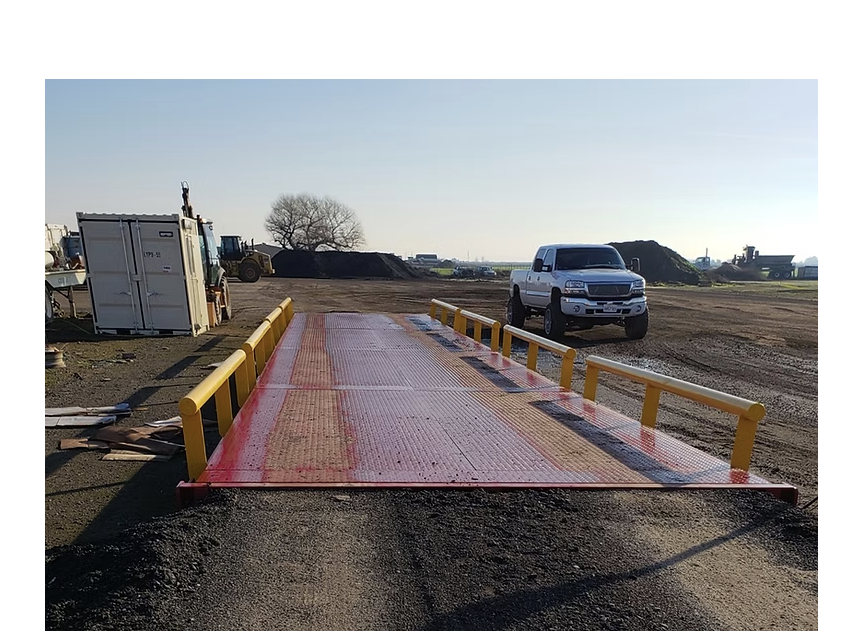

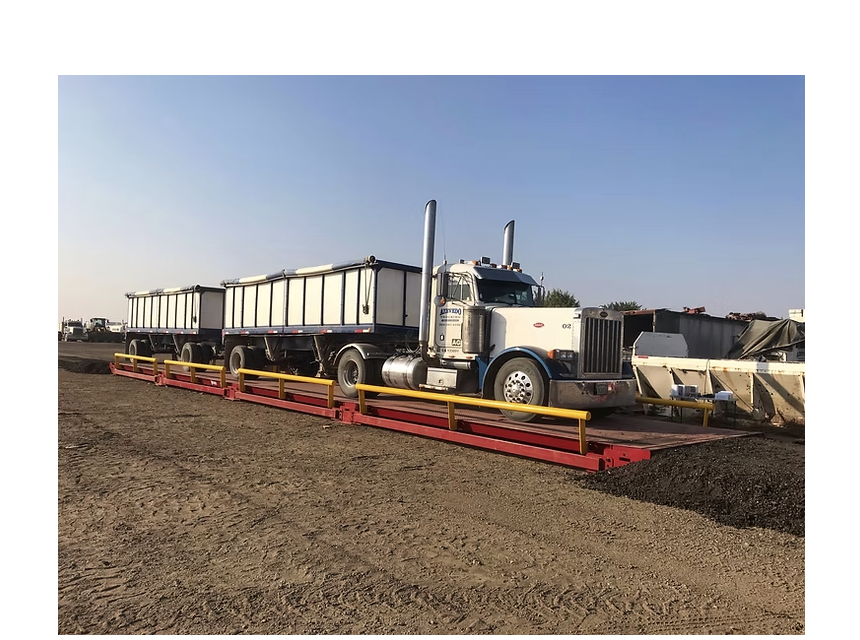

STEEL DECK Truck Scale

STEEL DECK Truck Scale

by Optima Scale
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

CALL FOR PRICE

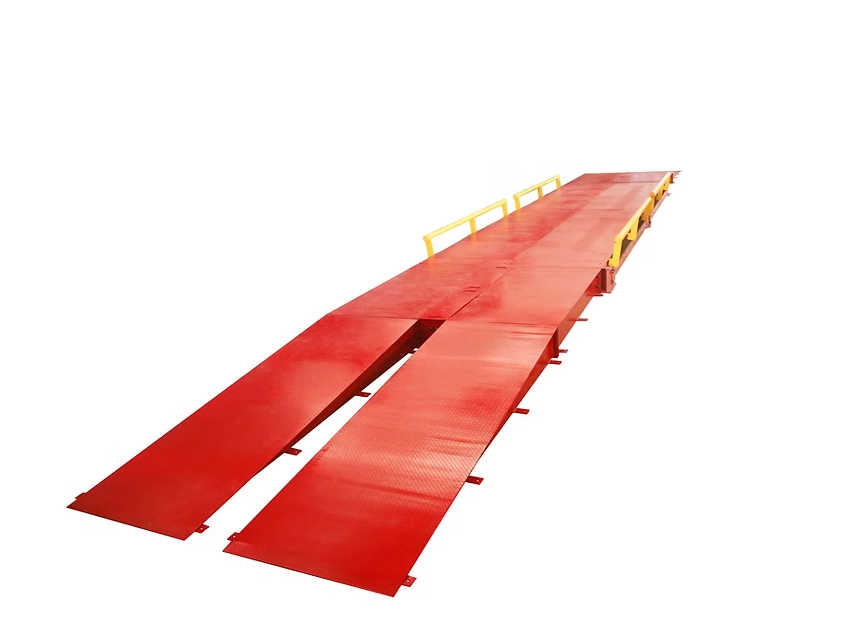

The Steel Deck Truck Scale is engineered with up to 7/16” tread plate decking and fully welded orthotropic U-beam ribs that provide unmatched durability and load distribution. Unlike I-beam designs, its 100% airtight, continuously welded seal prevents moisture penetration, protecting the scale from rusting inside out. Backed by over two decades of expertise, this truck scale delivers the reliability, accuracy, and strength you need for demanding vehicle weighing applications.

FEATURES

  • Utilizes up to 7/16” tread plate decking for increased durability and strength.
  • Supported by orthotropic ribs that are completely sealed by continuous welds
  • Build with an airtight seal that eliminates the potential for rusting from the inside
  • The ribs are shaped to distribute concentrated loads better than I-beam designs, for a longer life
  • Interchangeable modular design
  • Each scale is build in a fully rotatable clipping to ensure proper fit and finish
  • Rotation of the scale module during assembly guarantees uniform and precise welds
  • The platform is designed with special tabs and wheels for easy loading and unloading, especially when shipping with box trucks
  • Baked powder coated finish all over, proven to be as much as 10 times more effective in resisting wear and corrosion in the roughest environment
  • Contains no solvent and is safe in operation and environment friendly with zero pollution

SPECIFICATION

Specification

TUF-BRIDGE (H.D. Industrial Applications)

EVERLAST (Light to Medium Applications)

Model

TUF-BRIDGE

EVERLAST

Gross Capacity

270,000 lbs (135 tons)

160,000 lbs (80 tons)

Concentrated Load Capacity (CLC)

120,000 lbs (60 tons)

80,000 lbs (40 tons)

Width

10’ – 14’

10’ – 14’

Length

Module: 10’ – 20’ Total: 20’ – 120’

Module: 10’ – 20’ Total: 20’ – 120’

Scale Profile

16.5”

14.5”

Scale Clearance

5.5”

4.5”

Deck Plate Thickness

Up to 9/16”

5/16”

Weigh-bridge End Plates

3/4” x 11” plate

1/2” x 11” plate

Inner Supports

1” thick slab plates (6 per module)

3/4” thick slab plates (6 per module)

Finish

Baked Primer & Powder Coating or Hot Dipped Galvanized

Baked Primer & Powder Coating or Hot Dipped Galvanized

Load Cell Type

Double-ended, Analog, NTEP Alloy Steel

Double-ended, Analog, NTEP Alloy Steel

Load Cell Numbers

10 pcs (70ft and 80ft reference)

10 pcs (70ft and 80ft reference)

Load Cell Capacity

75,000 lbs, LE (Large Envelope)

75,000 lbs, SE (Small Envelope)

Load Cell Cable

Stainless Steel Sheathed + Rodent Protection

Stainless Steel Sheathed + Rodent Protection

Junction Box

NEMA 4X Stainless Steel, Cable strain reliefs

NEMA 4X Stainless Steel, Cable strain reliefs

Summing Card

10-cell boards w/ surge protection & sectional adjustment (70ft/80ft only)

10-cell boards w/ surge protection & sectional adjustment (70ft/80ft only)

Surge Protection

Lightning/Surge Protection

Lightning/Surge Protection

Installation Type

Above or In-ground

Above or In-ground

Est. Shipping Weight

33,400 lbs (70ft x 11.2ft reference)

24,500 lbs (70ft x 11.2ft reference)

Warranty

5 Years (weighbridge, junction box, load cells)

5 Years (weighbridge, junction box, load cells)

Certification

NTEP, Class III L, CC# 17-034

NTEP, Class III L, CC# 17-034



OPTIONS

  • Indicator Stand
  • Scoreboard
  • Stoplight
  • Software
  • Printer

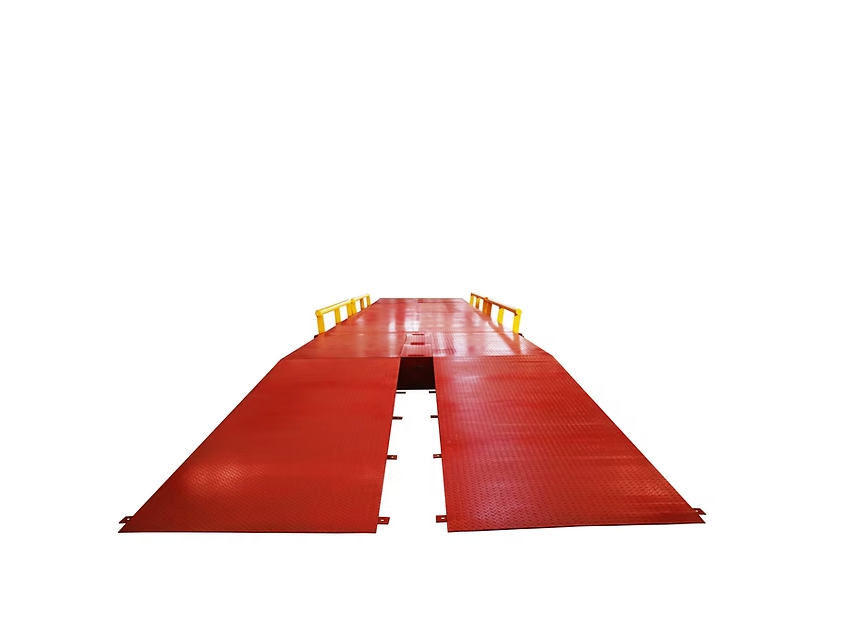

  • Steel ramps

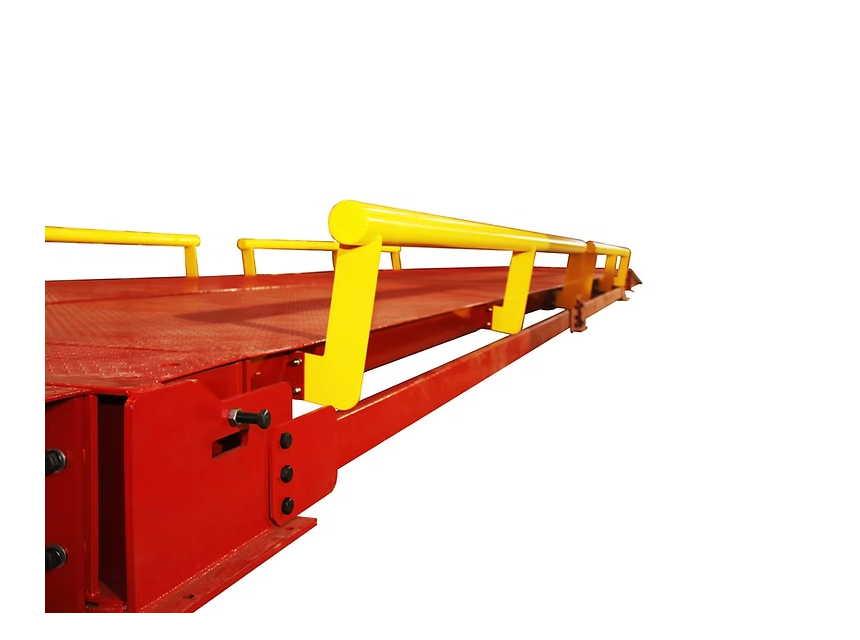

  • Guide rails (for above ground)
  • Frame (for portable truck scales)

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
