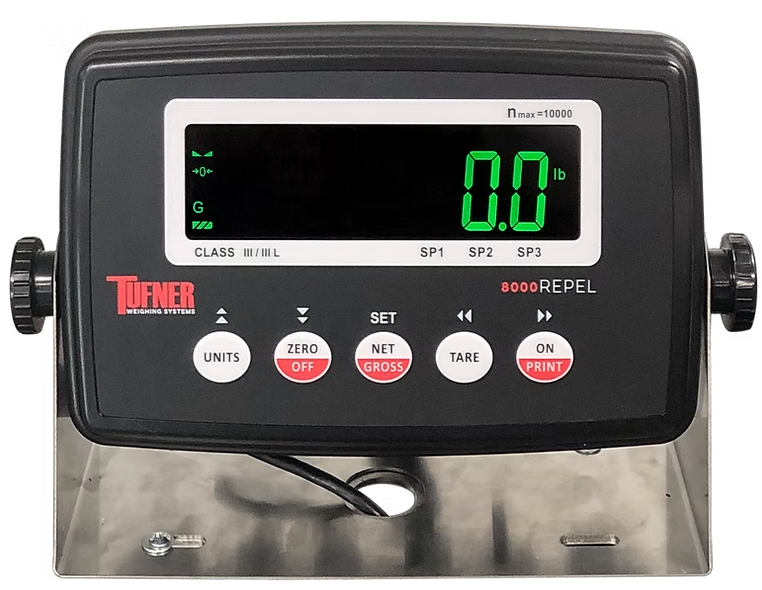

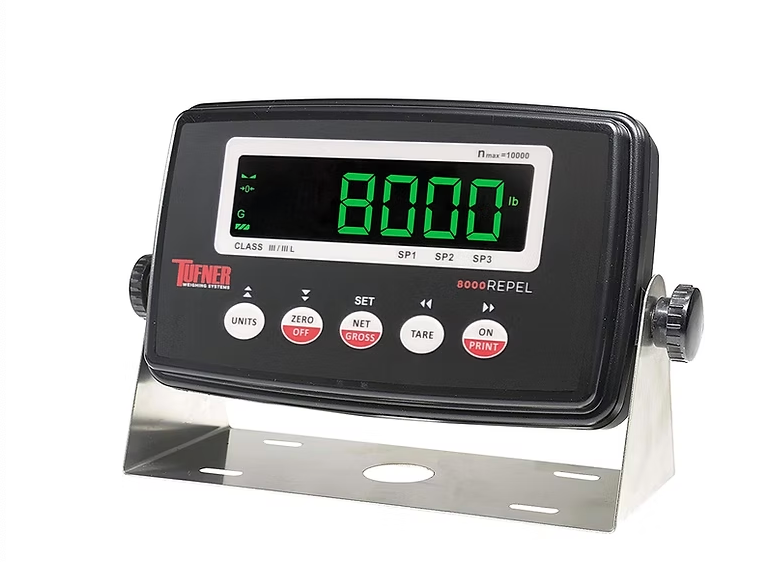

The 8000 Repel Indicator is engineered to withstand harsh environments while delivering consistent and accurate weighing results. With its rugged construction and easy-to-read display, it ensures reliable performance even in heavy-duty industrial settings. Imagine having a weighing indicator that keeps working smoothly despite dust, moisture, or constant use — the 8000 Repel is the durable solution that keeps your operations running efficiently.

FEATURES

• NTEP and Canadian certified digital indicator
• The front half of the enclosure is made of Polycarbonate, and the rear half of
  the enclosure is made of durable and waterproof ABS
• Units: lb, kg
• It is equipped with a large easy-to-read reverse LCD display and capacitive
  touch keypad
• It is capable of driving eight 350Ω resistive strain gage load cells
• Functions include Peak, Totalizing (Accumulation), Hold, and Live Weight
• Applications: Piece Counting, Remote Display, Animal/Peak Hold, Checkweigher,
  Accumulation, Self-diagnostics
• Time / Date
• Internal power supply
• ARM Microprocessor
• USB port for firmware update
• Full front panel configuration
• Gross/Net/Tare: Print Ticket mode with 6 digit ID number
• FIR Filter + Averaging Filter
• Programmable Print Format
• Automatic power-off
• Multi-point calibration
• Sealed ABS enclosure is rated for IP67
• Standard communications include one RS-232C port
• Load Cells: Drives up to eight 350 Ohm load cells
• Display: 1.0”, 7 Digit Reverse LCD
• Serial Port: Full Duplex RS-232
• Power: AC Adapter, rechargeable battery (optional)
• Construction: Durable ABS NEMA 4x / IP67
• NTEP certified for 10,000 divisions: 16-086

SPECIFICATIONS

• Display: 1.0”, 7-Digit Reverse LCD
• Units: lb, kg
• Accuracy Class: Class III at 10,000 divisions AM-6038C
• Display Resolution: Up to 100,000 external grads, selectable
• Excitation Voltage: +3.3 VDC
• Load Cell: 8 load cells of 350 Ω maximum
• A/D Conversion Rate: 10 Hz to 960Hz, selectable
• Current Consumption: 30mA + 15mA per 350-ohm load cell
• INPUT SIGNAL RANGE (mV/V): +/- 3.125
• A/D Resolution: Up to 260,000 internal counts at 2 mV/V
• Serial Output: Full duplex RS-232
• Power (Standard): 100-240 VAC, 50/60 Hz
• Power (Optional): 5 to 15 VDC
• NTEP CC: 16-086
• NIST Classification: H-44 Class III/IIIL at 10,000 divisions
• Operating Temperature: -4°F to 104°F (-20°C to 40°C)
• Warranty: 1 year limited warranty
