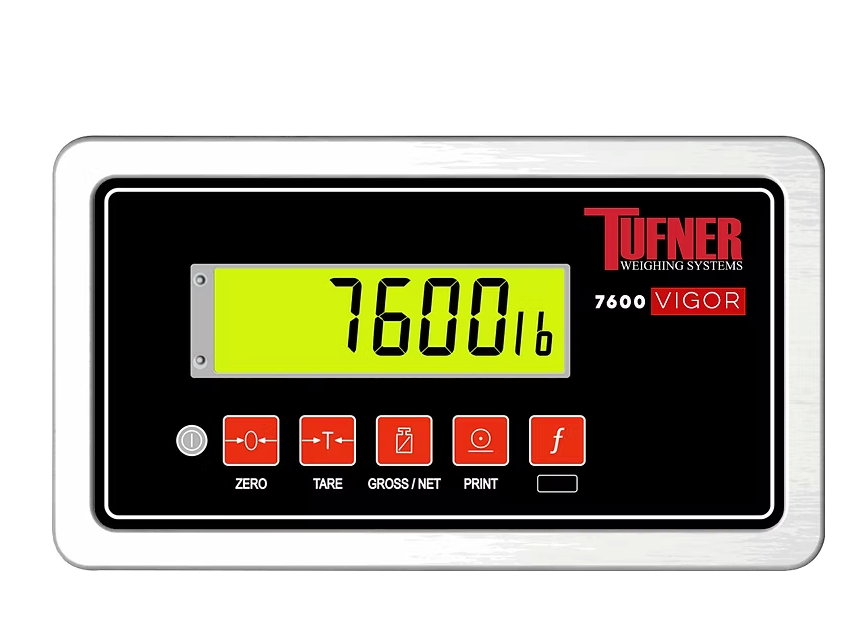

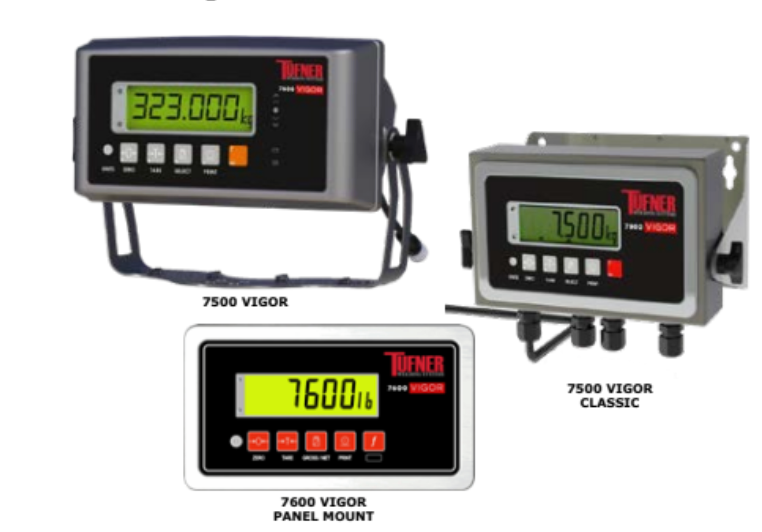

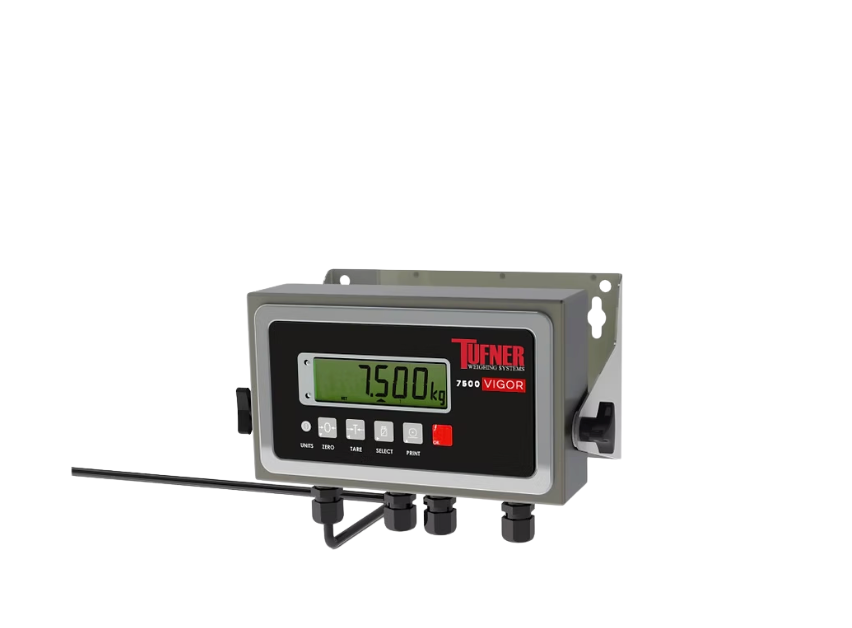

7500/7600 Vigor Indicator

The 7500/7600 Vigor Indicator is designed for operations that demand consistent accuracy and easy data management. Built for industrial and commercial applications, it offers clear displays, user-friendly controls, and dependable performance that supports efficient workflows. Imagine reducing errors and gaining confidence in every measurement — this digital weighing indicator provides the reliable solution for smooth, accurate, and stress-free weighing tasks.

FEATURES

• Ideal solution for baggage handling applications

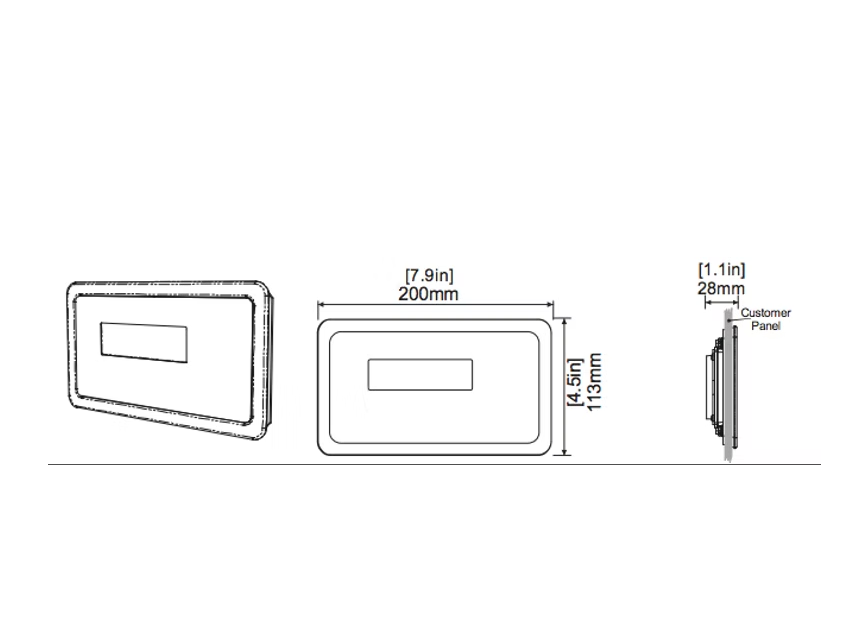

• Slimline panel mounting for on-counter display

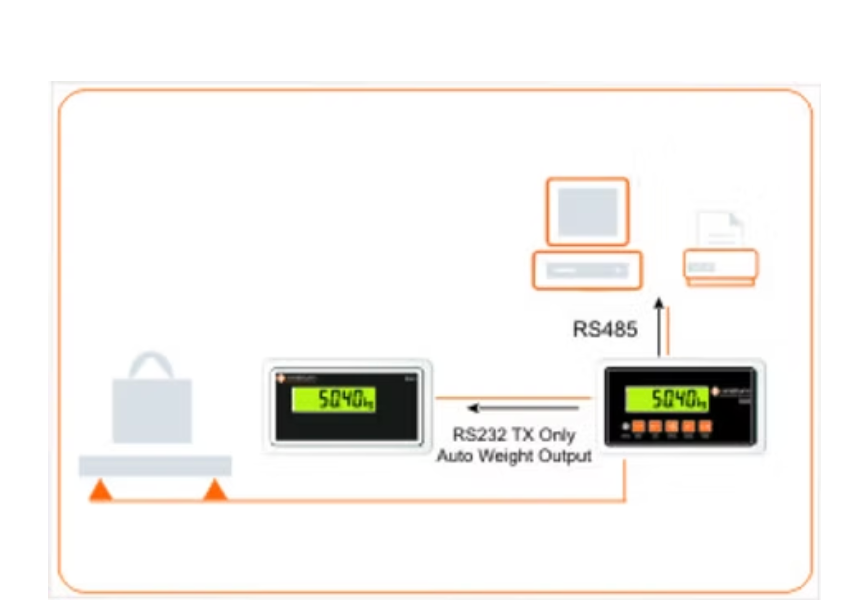

• Combine with remote displays for a complete luggage handling system
• Programmable bag and weight limits allow for easy monitoring of both the
  total weighing sum and the number of bags to ensure preset bag numbers
  and weight limits are not exceeded
• IP65 approved (dust-tight and protected against low-pressure water jets
  from any angle) for a long, reliable product life
• Dedicated keypad functions increase input capabilities and decreases the
  chance of operator error
• Functions keys: Add/Totals/Cancel/Finish
• Configurable printing
• Built in serial communications (RS232/RS485) to a remote display
  and PC or printer
• Set point function
• Totalizing

SPECIFICATIONS

• Materials: Stainless Steel panel mount
• Display: LCD; 6 digits numeric
• Setup and Calibration: Full digital with visual prompting
• Digital Filter: Sliding window average from 0.1 to 4.0 seconds
• Zero Range: Selectable from +/-2% to +/-100% full scale
• Resolution: Up to 30K divisions, minimum of 0.25μV/division
• Zero Cancellation: +/-2.0mV/V
• Span Adjustment: 0.1mV/V to 3.0mV/V full scale
• Excitation: 5V for up to 4x350 or 8x700 ohm load cells (4-wire or 6-wire plus shield)
• A/D Type: 24bit Sigma Delta with 8,388,608 internal counts
• Operating Environment: Temp: -10 to +50°C ambient
  Humidity: <90% non-condensing
• Standard Power Input: 7 to 24VDC, 4.8, 9.6,12 and 24V batteries - ON/OFF key with
  memory feature
• Variants: - AC Plug pack: 110/240VAC 50/60Hz in 12VDC 1.5A out
• Optical data communications: Magnetically coupled infrared communications
• Set Points: 1
• Function Keys: Zero, Add, Totals, Finish, Test
• Communications: - RS232 automatic transmit for remote display
  - RS485 network or printer connection
  - Transmission rate: 2400, 4800, 9600, 19200 baud
• Ratings: IP65 rated housing 4,000 d @0.8uV/d NMI (S-420), OIML R76
  FCC, CE, C-tick
