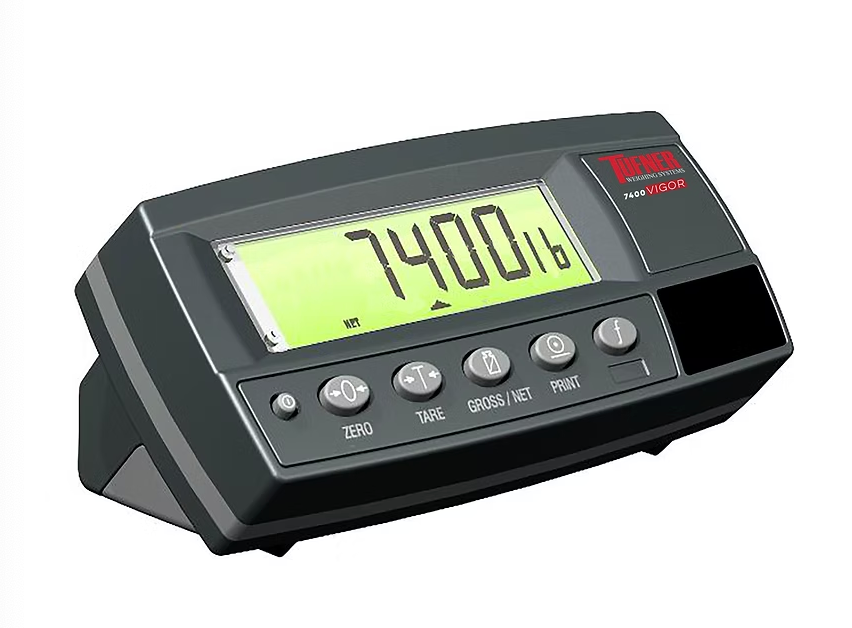

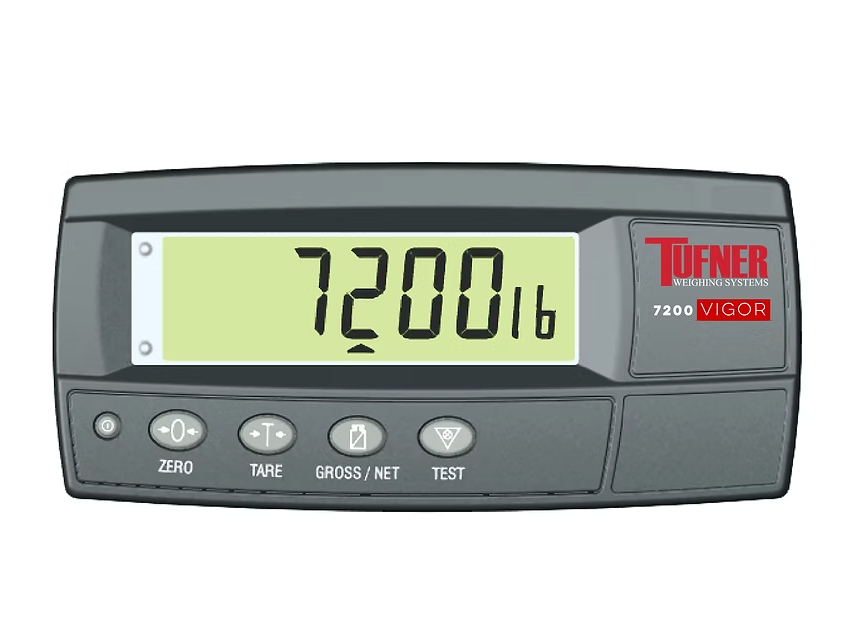

The 7200/7400 Vigor Indicator delivers fast, accurate, and dependable readings, making it ideal for industrial and commercial weighing applications. With its robust build, intuitive display, and advanced features, it ensures operators can manage weight data efficiently and with confidence. Imagine streamlining your workflow while maintaining accuracy in every measurement — this weighing indicator provides the trusted solution for consistent results and long-term performance.

FEATURES

• Ideal for mobile applications such as forklifts, platforms, inside truck cabs,
  crane scales and OEM applications
• The compact housing and versatile power supply makes it suitable for
  weighing through to OEM applications
• Basic weight control or level control functions
• Acrylonitrile Butadiene Styrene (ABS) housing construction
• Long-life rechargeable battery ideal for mobile installations
• Magnetically coupled link on front face for easy access in situ for updates/setup of indicator
• IP65 approved (dust-tight and protected against low-pressure water jets
  from any angle) for a long, reliable product life
• Wide DC operation (7-24V) to suit a variety of on-board OEM applications
• Trade-approved in Australia, Europe and USA

SPECIFICATIONS

PLEASE CALL FOR CONSULT ON PRICES AND OPTIONS.
DUE TO THE NATURE OF THIS PRODUCT AND ITS VARIOUS CUSTOMIZATIONS, PRICES VARY.

• Materials: ABS housing
• Display: LCD; 6 digits numeric
• Setup and Calibration: Full digital with visual prompting
• Digital Filter: Sliding window average from 0.1 to 4.0 seconds
• Zero Range: Selectable from +/-2% to +/-100% full scale
• Resolution: Up to 60K divisions, minimum of 0.25μV/division
• Zero Cancellation: +/-2.0mV/V
• Span Adjustment: 0.1mV/V to 3.0mV/V full scale
• Excitation: 5V for up to 4x350 or 8x700 ohm load cells (4-wire or 6-wire plus
  shield)
• A/D Type: 24bit Sigma Delta with 8,388,608 internal counts
• Operating Environment: Temp: -10 to +50°C ambient
  Humidity: <90% non-condensing
• Standard Power Input: 7 to 24VDC, 4.8, 9.6,12 and 24V batteries - ON/OFF key with
  memory feature
• Variants: - AC Plug pack: 110/240VAC
  50/60Hz in 12VDC 1.5A out
  - 12V battery pack
  (rechargeable NiMH)
  - 4 x AA batteries
• Serial Outputs: RS-232 automatic transmit, network or printer outputs.
  Transmission rate: 2400, 4800 or 9600 baud
• Input/ Outputs: 2 outputs - isolated transistor drive outputs (300mA total at 50VDC)
• Ratings: IP65 rated housing, 4,000 d@0.8uV/d NMI (S-420), OIML R76
  10,000d III/III L NTEP 08-072 A1
