Cardinal Harvester Livestock Scales

Original price $21,800.00 - Original price $51,710.00
Original price
$21,800.00
$21,800.00 - $51,710.00
Current price $21,800.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cardinal Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer Warranty

✔ Made in Webb City, Missouri, USA

✔ Ships From Missouri, USA

FEATURES

  • Agricultural Products
  • Etched Diamond Pattern Concrete Deck Provides Hoof-gripping Traction for Livestock
  • Four Hinge Points on Each Gate
  • High-Tensile-Strength Concrete Decks
  • Livestock Pens and Gates Included
  • NTEP Legal for Trade
  • Optional Dual Latches
  • Optional Horse Risers
  • Pre-cast Solid Concrete Deck
  • Rodent Protection is Standard
  • Stainless Steel Load Cells
  • Up to 30-Ton Weighing Capacity



SPECIFICATIONS

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

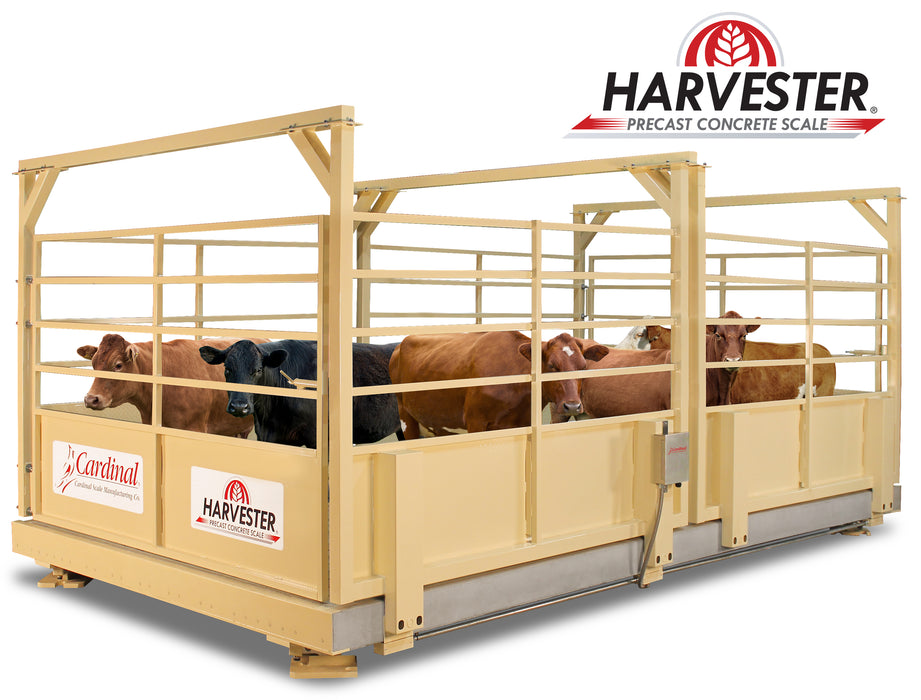

Ideal for stockyards, feed lots, and private farms, Cardinal’s fully-electronic Harvester livestock scales feature pre-cast concrete decks and include livestock pens and two-end swing gates with easy-close latches (arrives factory assembled). The diamond pattern concrete deck provides sure footing for livestock. The 0.8-inch-high gap between the concrete deck and steel livestock pen allows space for easy washout cleaning and is not visible to cattle from above. The NTEP legal-for-trade LSC series farm scale utilizes Cardinal’s 20,000-lb model SB stainless steel shear beam load cells which feature superior welded waterproof seals and protection against caustic, corrosive environments. Available in 12.5, 25, or 30 ton overall capacities. Sizes up to 52.5 ft long x 10 ft wide.

    FEATURES
    • Agricultural Products
    • Etched Diamond Pattern Concrete Deck Provides Hoof-gripping Traction for Livestock
    • Four Hinge Points on Each Gate
    • High-Tensile-Strength Concrete Decks
    • Livestock Pens and Gates Included
    • NTEP Legal for Trade
    • Optional Dual Latches
    • Optional Horse Risers
    • Pre-cast Solid Concrete Deck
    • Rodent Protection is Standard
    • Stainless Steel Load Cells
    • Up to 30-Ton Weighing Capacity



    SPECIFICATIONS

    Platform Width: 10 ft.
    Platform Length: 17.5 ft., 35 ft., or 52.5 ft.
    Overall Capacity: 12.5 tons, 25 tons, or 30 tons
    Concentrated Load Capacity: 12.5 tons
    Load Cells: Cardinal model SB 20,000-lb stainless steel shear beam
    Clearance Height: 81 in (from top of concrete deck to bottom of top bar)
    Gate and Cattle Pen Height: 66.5 in
    Construction: Pre-cast concrete deck and mild steel livestock pens




    Model

    Description

    1217-LSC

    Livestock Scale, 17'-6" x 10', 12 Ton Capacity, Concrete Deck

    2535-LSC

    Livestock Scale, 35'-0" x 10', 25 Ton Capacity, Concrete Deck

    3052-LSC

    Livestock Scale, 52'-6" x 10', 30 Ton Capacity, Concrete Deck
