US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb
US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb

US-LS5020 Portable Livestock Scale for Sheep, Pigs, Goats, and More 500 lb - 2,000 lb

by USA Measurements
$599.00 - $799.00
$599.00
$549.00
$549.00 - $749.00
$549.00

FREE Shipping on Most Orders (Lower 48 United States). Contact us for current availability and delivery timing.

✔ Authorized USA Measurements Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer warranty varies by model; see the product description or contact us for exact coverage.

✔ Made in The USA

✔ Ships From Cumberland, MD

USA Measurements US-LS5020 floor scale for use in a variety of applications. This model features a 50″ L x 20″ W x 4″ H weighing surface, 1,000 lb or 2,000 lb capacity, and accurate to 0.2 lb. Our package includes US-6011SS smart weighing indicator, 15′ stainless steel cable, and factory calibrated. Can be used for shipping, portable applications, small livestock weighing, veterinarians, and many more.

****PLEASE NOTE THIS ITEM WILL NOT WORK FOR CATTLE

FEATURES

  • Complete System with Everything you Need
  • Plug and Play right out of the box
  • Accurate to plus or minus 0.2 lb
  • Designed for Livestock Weighing
  • Smart Animal Hold Function
  • Heavy Duty Construction
  • Powder Coating Finish to Prevent Rust

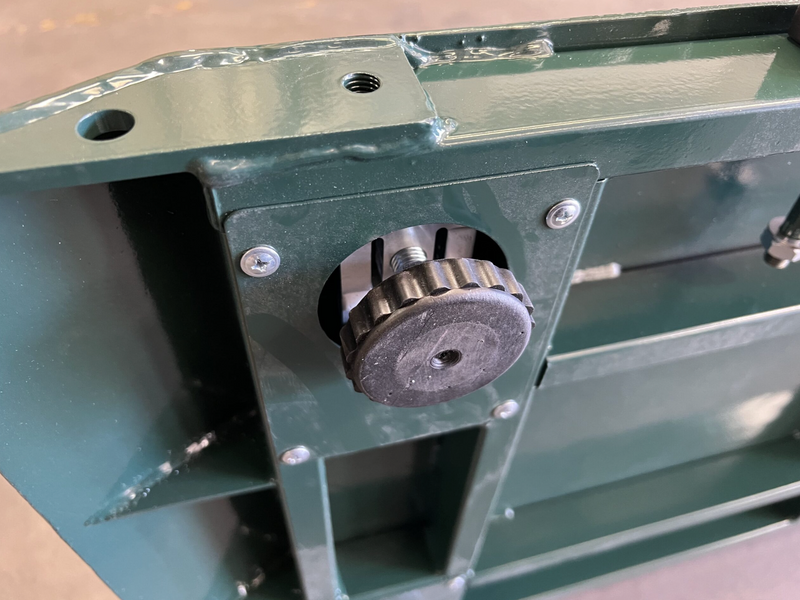

  • Four Adjustable Leveling Feet
  • Lightweight & Portable
  • Platform size: 50″ L x 20″ W x 4″ H
  • Capacity: 1,000 lb or 2,000 lb
  • Alloy Steel Nickel Plated Load Cells
  • 200% Overload Protection
  • 15′ Steel Braided Cables
  • 5 Year Warranty Steel Frame
  • 2 Year Warranty on Electronics

INDICATOR FEATURES

  • Stainless Steel Enclosure
  • 1” Digit bright LCD
  • Weighing Units: LCD lb, kg, oz, lb:oz, g
  • Gross Weighing
  • Multiple Tare Functions
  • Pre-Set Tare Option
  • Zero Button
  • Multiple Hold Functions
  • Counting Pieces Function
  • Accumulation / Batch weighing
  • Checking Weighing: Over/Under with alarm
  • Power saving mode
  • Automatic date and time update
  • Modify gravity based on location
  • 100% manual zero range setting
  • Automatic error warning alarm
  • Splash proof keyboard and display
  • RS-232 Port for optional Scoreboard
  • RS-232 Port for connecting to Printer
  • Displays up to 50,000 graduations
  • Includes Bracket & Mounting Hardware
  • 110V Power Adapter Included
  • Easy to Calibrate Indicator (5 Steps)
  • Full Duplex RS-232 Serial Port
  • Powers up to Six 350Ω load cells
  • 2 year Manufacturer warranty

INCLUDED WITH PURCHASE

  • 50″x20″ Steel Platform
  • Capacity 1,000 lb or 2,000 lb
  • US-6011SS Digital Indicator
  • Rechargeable Battery
  • Stainless Steel Mounting Bracket
  • (2) Adjustable Knobs for Bracket
  • Spare Connectors
  • Plastic Splash Guard
  • (1) 15′ Stainless Steel Braided Cables
  • Power Adapter
  • User Manual



RESOURCES

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.



Compare available configurations

Compare configurations and prices below. Select a configuration to view that option above before adding it to your cart.

Configuration Price
500 lb x 0.2 lb | 50″ L x 20″ W x 4″ H Platform size $549.00 Select
1000 lb x 0.2 lb | 50″ L x 20″ W x 4″ H Platform size $649.00 Select
2000 lb x 0.2 lb | 50″ L x 20″ W x 4″ H Platform size $749.00 Select

Need help choosing the right configuration?

Tell us what you are weighing, the required capacity and accuracy, and how the scale will be installed. We can help narrow the options before you order.
