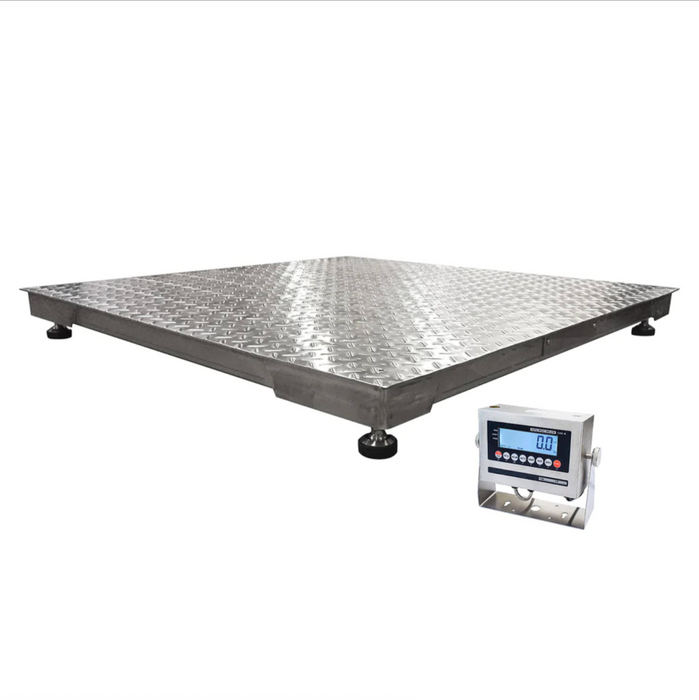

TUF-MADE SS Stainless Steel Floor Scales (Made in USA)

TUF-MADE SS Stainless Steel Floor Scales (Made in USA)

by Optima Scale
$2,199.00 - $5,399.00
$2,199.00
$2,199.00 - $5,399.00
$2,199.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

The TUF-MADE SS Stainless Steel Floor Scale (Made in USA) is engineered to deliver precision, strength, and long-lasting durability. Constructed with rigid 304 stainless steel and equipped with NTEP-certified, laser-welded sealed IP68 load cells, this scale provides dependable accuracy even in demanding environments. With a 200% overload protection capacity, adjustable stainless steel support feet, and side or optional top access to the junction box, it ensures reliability in industrial, food processing, and heavy-duty weighing applications.

This stainless steel floor scale is the ideal solution for operations requiring superior corrosion resistance and rugged performance. Its channel construction enhances structural integrity, while the heavy-duty metal shielded cable ensures lasting protection. Designed for efficiency and resilience, this scale is ready to support your most critical weighing tasks with accuracy and strength.

FEATURES

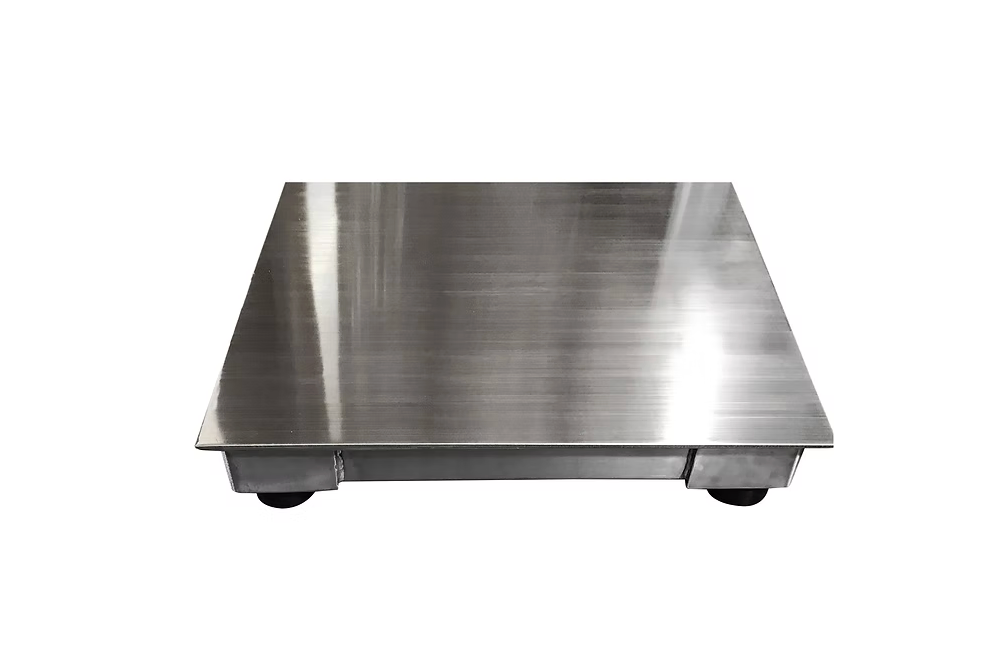

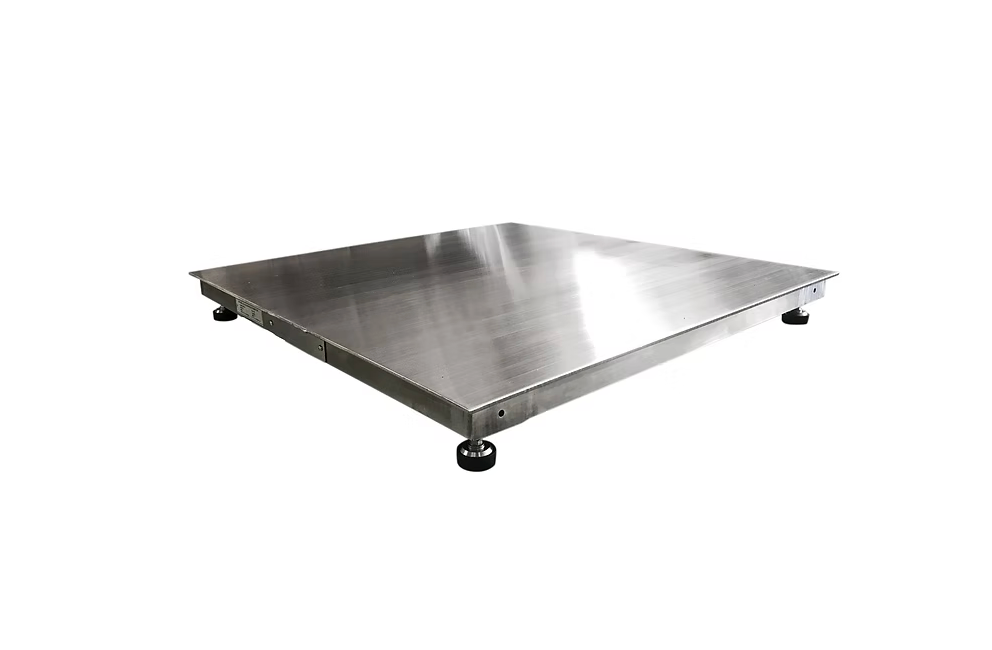

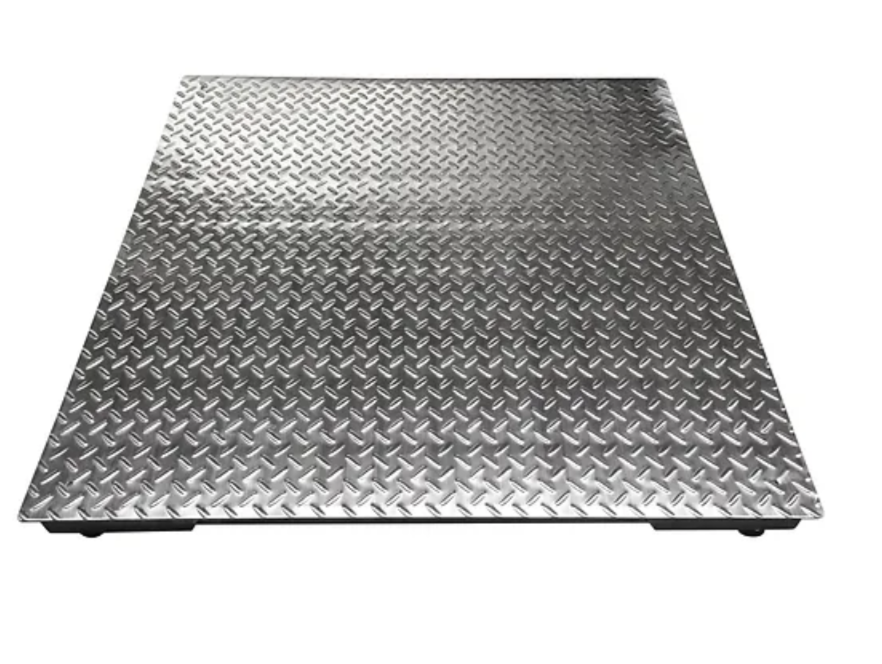

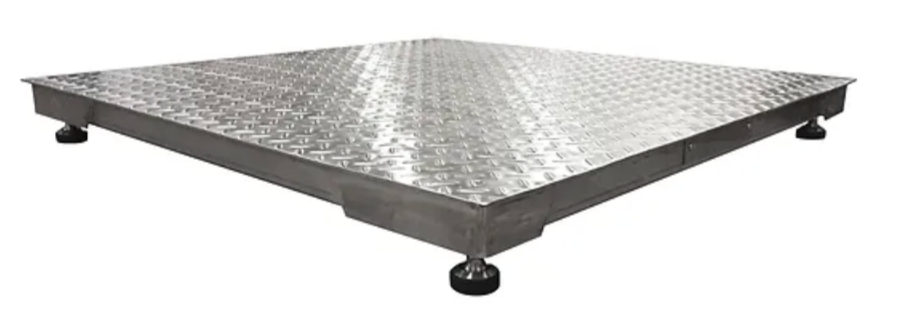

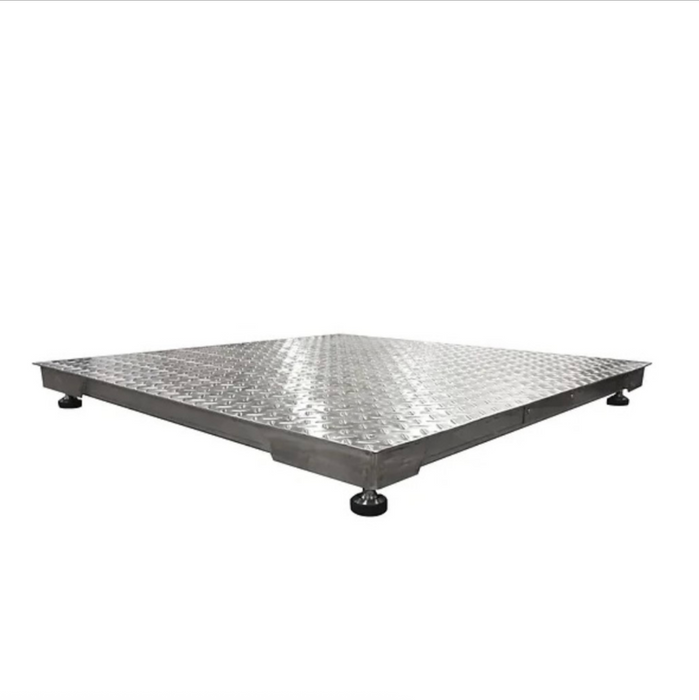

  • Diamond tread safety plate or smooth deck
  • Rigid 304 stainless steel
  • Channel construction for superior strength
  • Four NTEP certified laser-welded sealed IP68 stainless steel load cells
  • Four adjustable stainless steel support feet
  • Capacity is 2X the scale capacity for a 200% overload protection
  • 20’ heavy duty metal shielded cable
  • Side access to junction box (optional top access available depending on
    types of installation); Optional remote mounting for junction box; ideal
    for hostile environment applications

SPECIFICATIONS

MODEL NUMBER

PLATFORM SIZE

CAPACITY

SMOOTH TOP



TMSS-522

2’ x 2’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

TMSS-533

3’ x 3’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

TMSS-544

4’ x 4’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

TMSS-1044

4’ x 4’ x 4.2” H

10,000 lb x 2 lb / 5,000 kg

TMSS-545

4’ x 5’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

TMSS-555

5’ x 5’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

TMSS-1055

5’ x 5’ x 4.2” H

10,000 lb x 2 lb / 5,000 kg

DIAMOND PLATED TOP



TMSSDP-533

3’ x 3’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

TMSSDP-544

4’ x 4’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

TMSSDP-1044

4’ x 4’ x 4.2” H

10,000 lb x 2 lb / 5,000 kg

TMSSDP-545

4’ x 5’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

TMSSDP-555

5’ x 5’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

TMSSDP-1055

5’ x 5’ x 4.2” H

10,000 lb x 2 lb / 5,000 kg
  • MATERIAL: All Stainless Steel
  • OVERLOAD PROTECTION: 200%
  • IP RATING: IP65 to IP67
  • CAPACITY: 5,000 lbs - 10,000 lbs
  • CABLE LENGTH: 20 ft
  • WARRANTY: 2 year limited warranty
  • APPROVALS: NTEP Certified at 5,000 divisions, Class III

OPTIONS/ ACCESSORIES

  • Access ramps
  • Pit frames
  • Bump guards
  • Portability frames
  • Indicator
  • Label/Table printer
  • Indicator floor stand
  • Scoreboard
  • Data logging software

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
