TUF-MADE Heavy Duty Floor Scale package (Load Cells, Scale, and Indicator)

TUF-MADE Heavy Duty Floor Scale package (Load Cells, Scale, and Indicator)

by Optima Scale
$699.00 - $7,799.00
$699.00
$699.00 - $7,799.00
$699.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Optima Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Rancho Cucamonga, CA

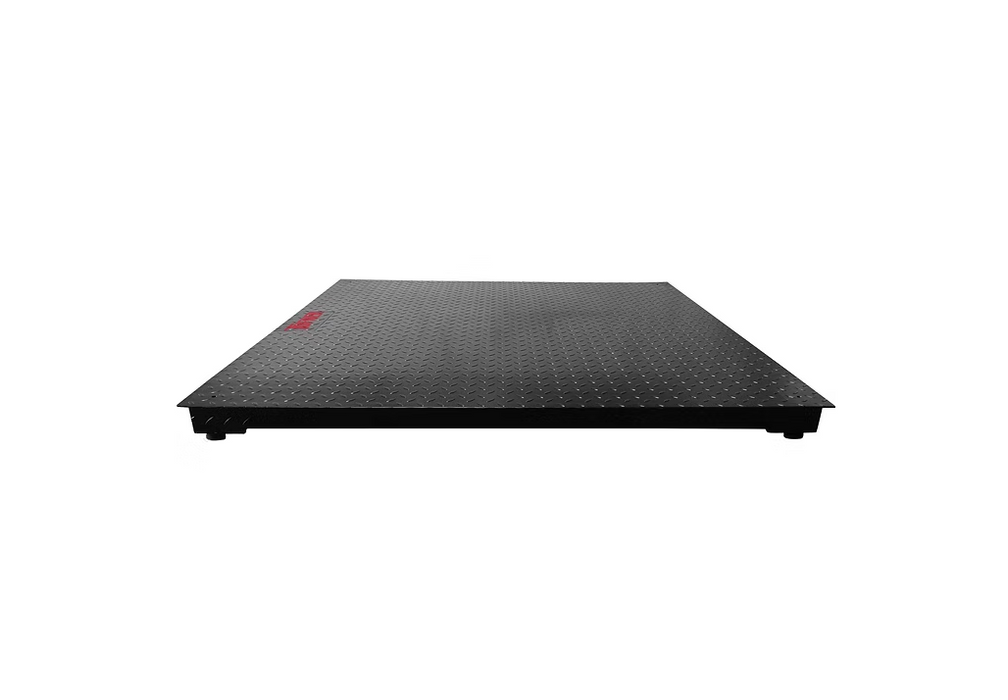

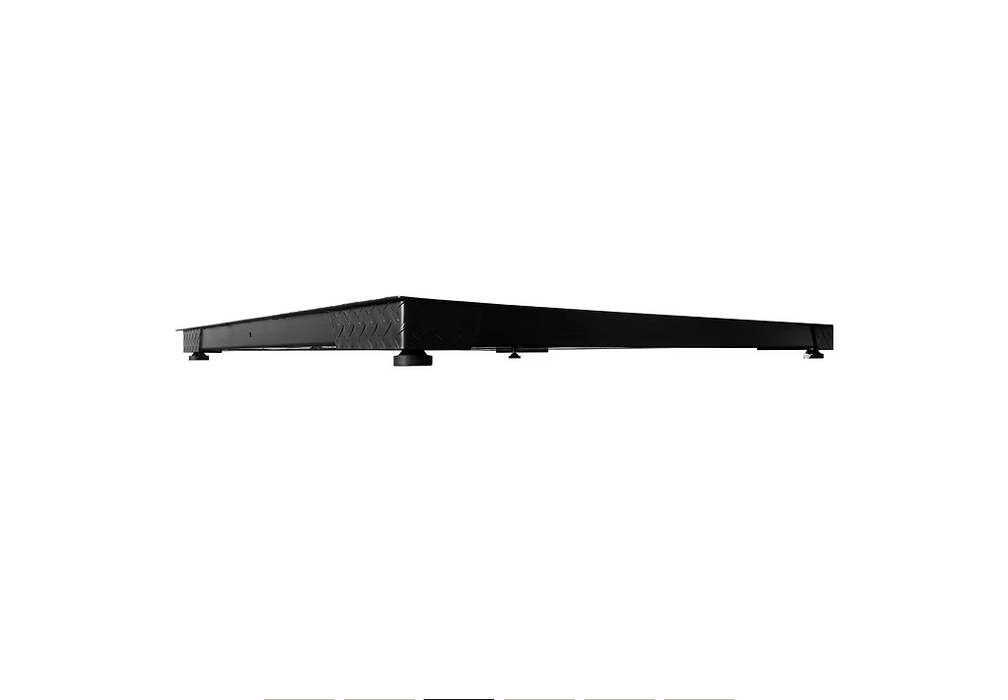

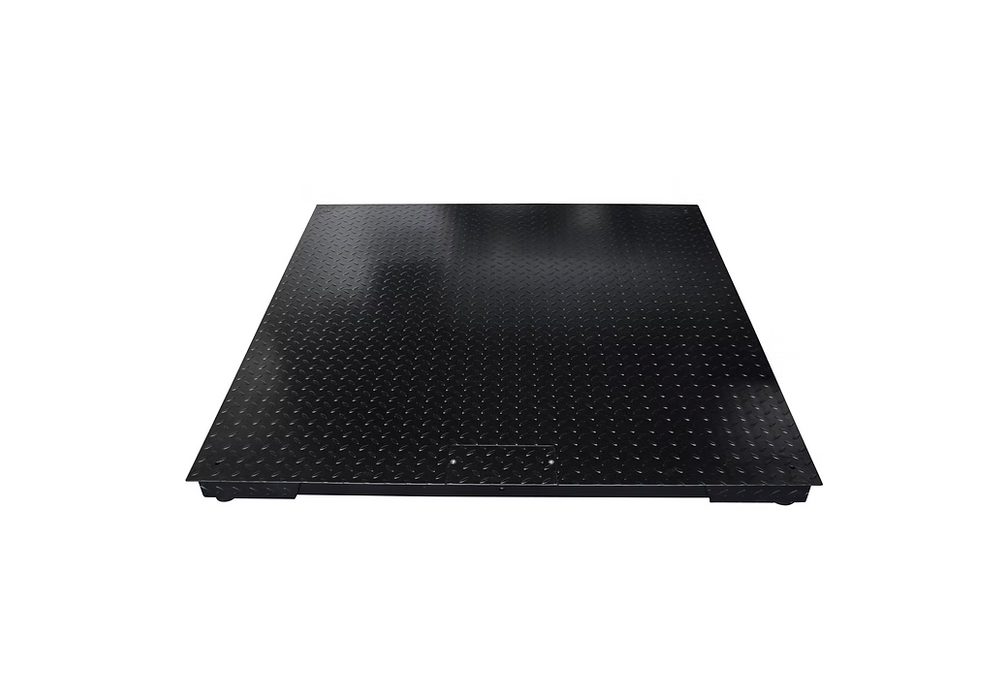

The TUF-MADE Heavy Duty Floor Scale Package is engineered for industrial environments where reliability and precision matter most. Featuring a rugged 1/4" diamond tread plate deck, height-adjustable leveling feet, and a durable channel steel frame, this scale is built to handle demanding applications with ease.

Equipped with four NTEP-certified alloy steel load cells, a 20ft heavy-duty shielded cable, and anti-corrosion powder-coated protection, this floor scale delivers long-lasting performance. Factory pre-calibrated for quick setup, it provides an all-in-one industrial floor scale solution that’s ready to work from day one.


FEATURES

  • Complete scale and indicator package
  • Rugged diamond tread safety deck or smooth stainless steel deck
  • Deck thickness: 1/4”

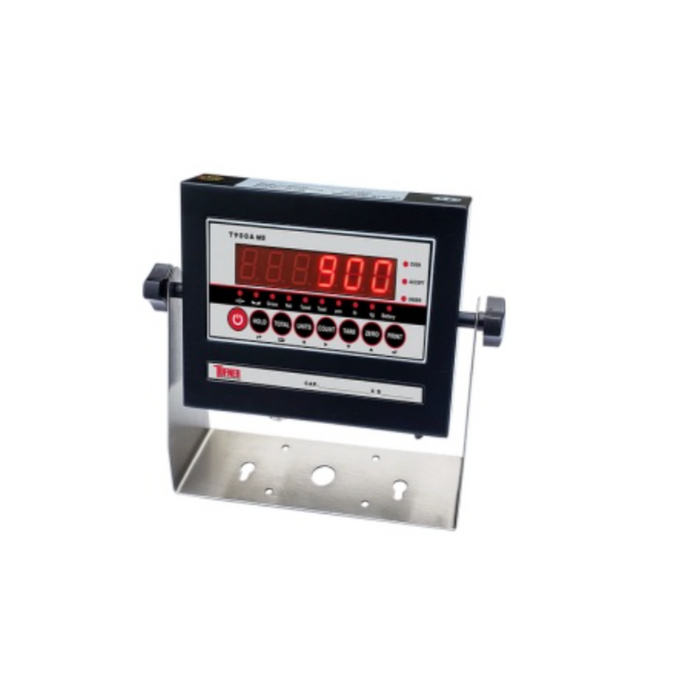

  • T900 NTEP indicator with 6 digit, 1” display
  • Height-adjustable ball and cup leveling feet
  • Top access to leveling feet and side access to junction box
  • Channel construction for superior strength
  • Standard: Four NTEP certified alloy steel load cells
  • 20’ heavy duty metal shielded cable
  • Anti-corrosion, powder coated steel (standard scales)
  • Factory pre-calibrated for quick setup

SPECIFICATIONS

MODEL NUMBER

PLATFORM SIZE

CAPACITY

NTEP

TM-11818

18” x 18” x 4.2” H

1,000 lb x 0.2 lb / 500 kg

Yes

TM-12424

2’ x 2’ x 4.2” H

1,000 lb x 0.2 lb / 500 kg

Yes

TM-52424

2’ x 2’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

Yes

TM-52436

2’ x 3’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

Yes

TM-53030

30” x 30” x 4.2” H

5,000 lb x 1 lb / 2,500 kg

Yes

TM-53636

3’ x 3’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

Yes

TM-24848

4’ x 4’ x 4.2” H

2,000 lb x 0.5 lb / 1,000 kg

Yes

TM-54848

4’ x 4’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

Yes

TM-104848

4’ x 4’ x 4.2” H

10,000 lb x 2 lb / 5,000 kg

Yes

TM-204848

4’ x 4’ x 4.75” H

20,000 lb x 5 lb / 10,000 kg

Yes

TM-54860

4’ x 5’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

Yes

TM-104860

4’ x 5’ x 4.2” H

10,000 lb x 2 lb / 5,000 kg

Yes

TM-56060

5’ x 5’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

Yes

TM-106060

5’ x 5’ x 4.2” H

10,000 lb x 2 lb / 5,000 kg

Yes

TM-206060

5’ x 5’ x 4.75” H

20,000 lb x 5 lb / 10,000 kg

Yes

TM-54872

4’ x 6’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

Yes

TM-104872

4’ x 6’ x 4.2” H

10,000 lb x 2 lb / 5,000 kg

Yes

TM-54896

4’ x 8’ x 4.2” H

5,000 lb x 1 lb / 2,500 kg

Yes

TM-104896

4’ x 8’ x 4.2” H

10,000 lb x 2 lb / 5,000 kg

Yes

TM-106084

5’ x 7’ x 4.2” H

10,000 lb x 2 lb / 5,000 kg

Yes

TM-206084

5’ x 7’ x 4.75” H

20,000 lb x 5 lb / 10,000 kg

Yes

TM-106096

5’ x 8’ x 4.5” H

10,000 lb x 2 lb / 5,000 kg

Yes

TM-207272

6’ x 6’ x 4.75” H

20,000 lb x 5 lb / 10,000 kg

Yes

TM-207296

6’ x 8’ x 4.75” H

20,000 lb x 5 lb / 10,000 kg

Yes

TM-208484

7’ x 7’ x 4.75” H

20,000 lb x 5 lb / 10,000 kg

Yes

TM-408484

7’ x 7’ x 5.25” H

40,000 lb x 5 lb / 20,000 kg

No

TM-2084120

7’ x 10’ x 4.75” H

20,000 lb x 5 lb / 10,000 kg

No

TM-209696*

8’ x 8’ x 5.25” H

20,000 lb x 5 lb / 10,000 kg

No

TM-20120120*

10’ x 10’ x 5.25” H

20,000 lb x 5 lb / 10,000 kg

No
  • MATERIAL: Mild Steel
  • OVERLOAD PROTECTION: 200%
  • IP RATING: IP65
  • INDICATOR: T900 NTEP approved
  • POWER: AC/DC, built-in rechargeable
    battery (100 hrs)
  • WARRANTY: 1 year limited warranty on electronics
    2 year limited warranty on platform
  • APPROVALS: NTEP Certified at 5,000 divisions, Class III

OPTIONS/ ACCESSORIES

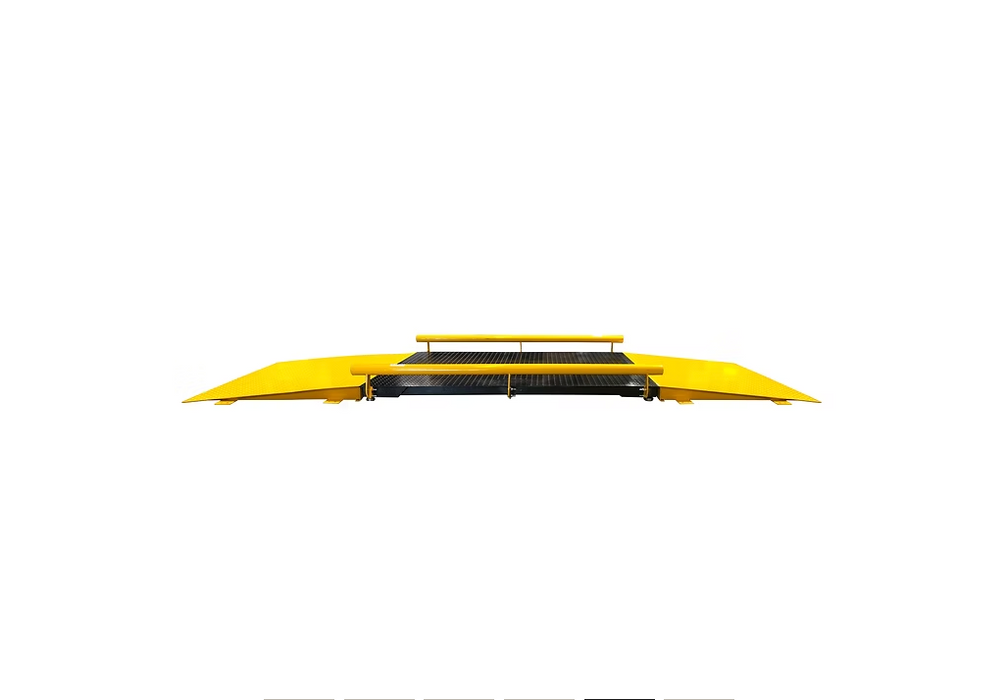

  • Access ramps
  • Pit frames
  • Bump guards
  • Portability frames
  • Indicator upgrade
  • Label/Table printer
  • Indicator floor stand
  • Scoreboard
  • Data logging software

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
