Guardian Hydraulic Scales with Gas-Assisted Lift Decks

Original price $14,450.00 - Original price $22,380.00
Original price $14,450.00
$13,005.00
$13,005.00 - $19,999.00
Current price $13,005.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cardinal Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer Warranty

✔ Made in Webb City, Missouri, USA

✔ Ships From Missouri, USA

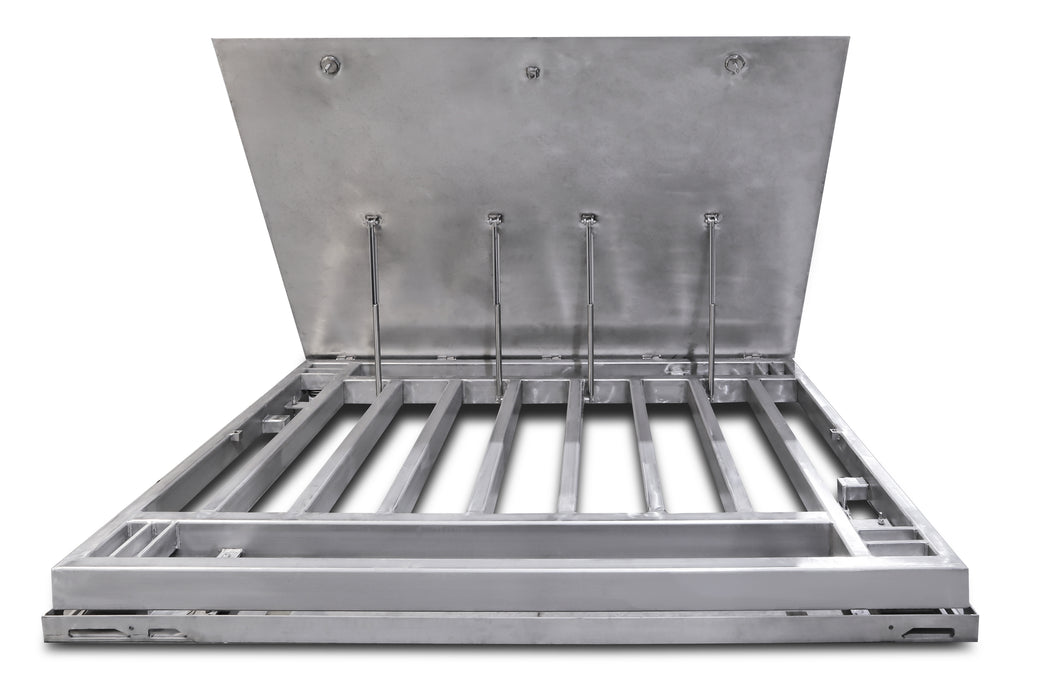

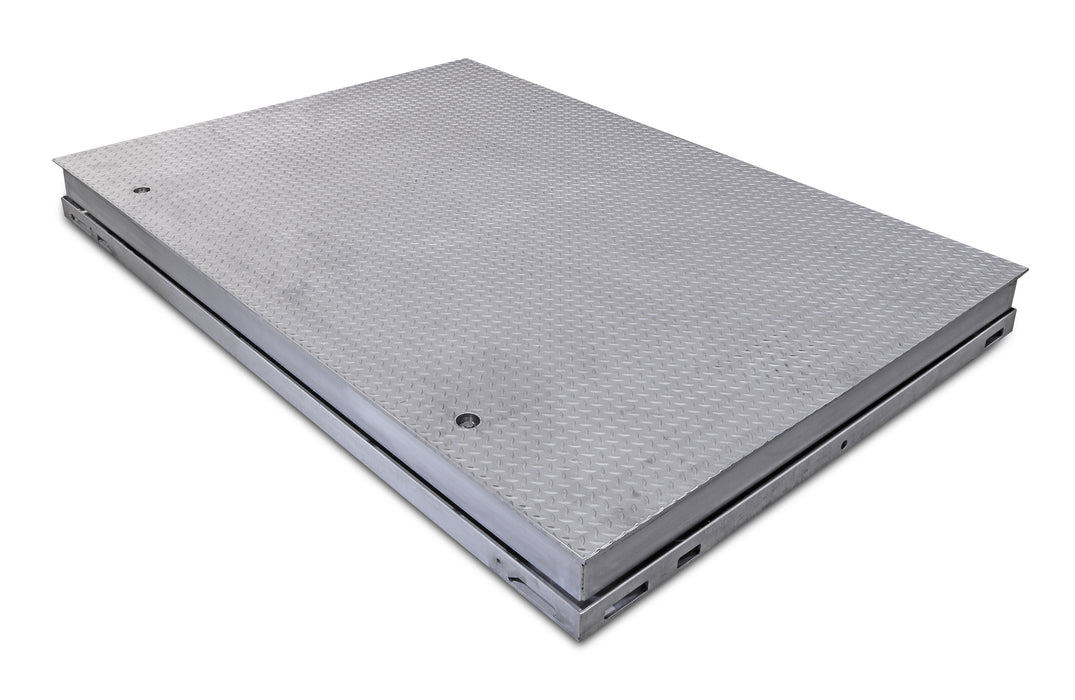

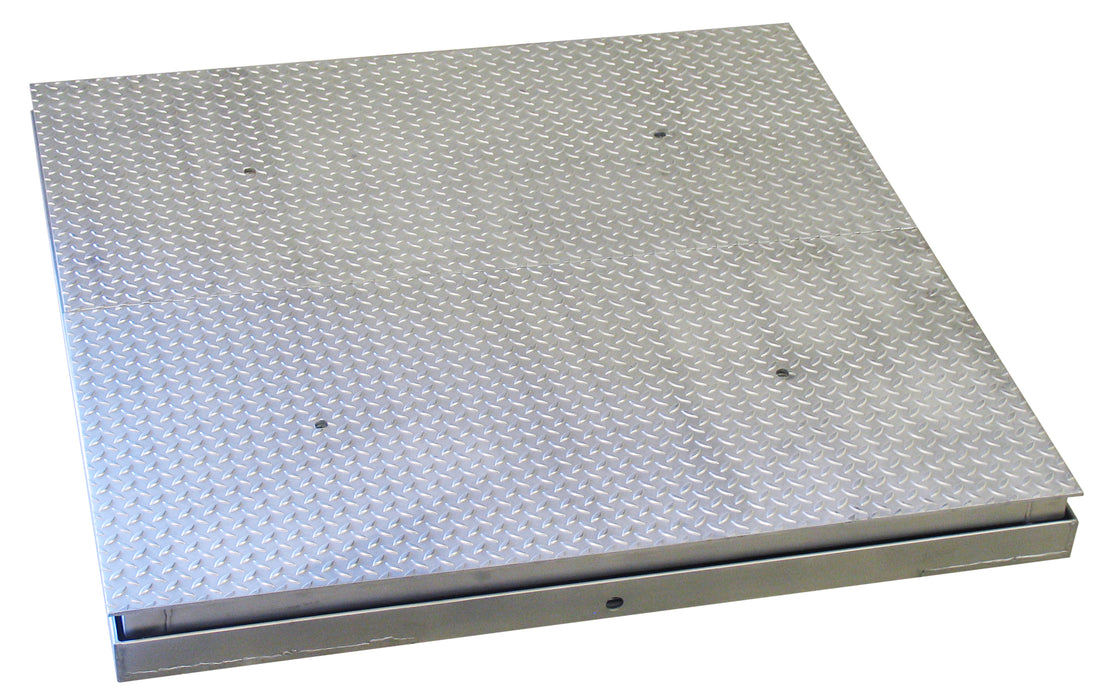

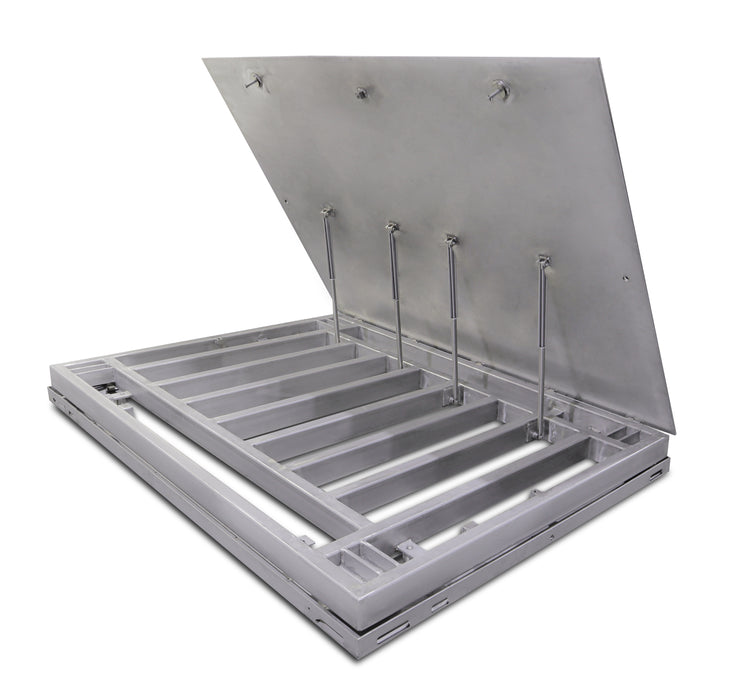

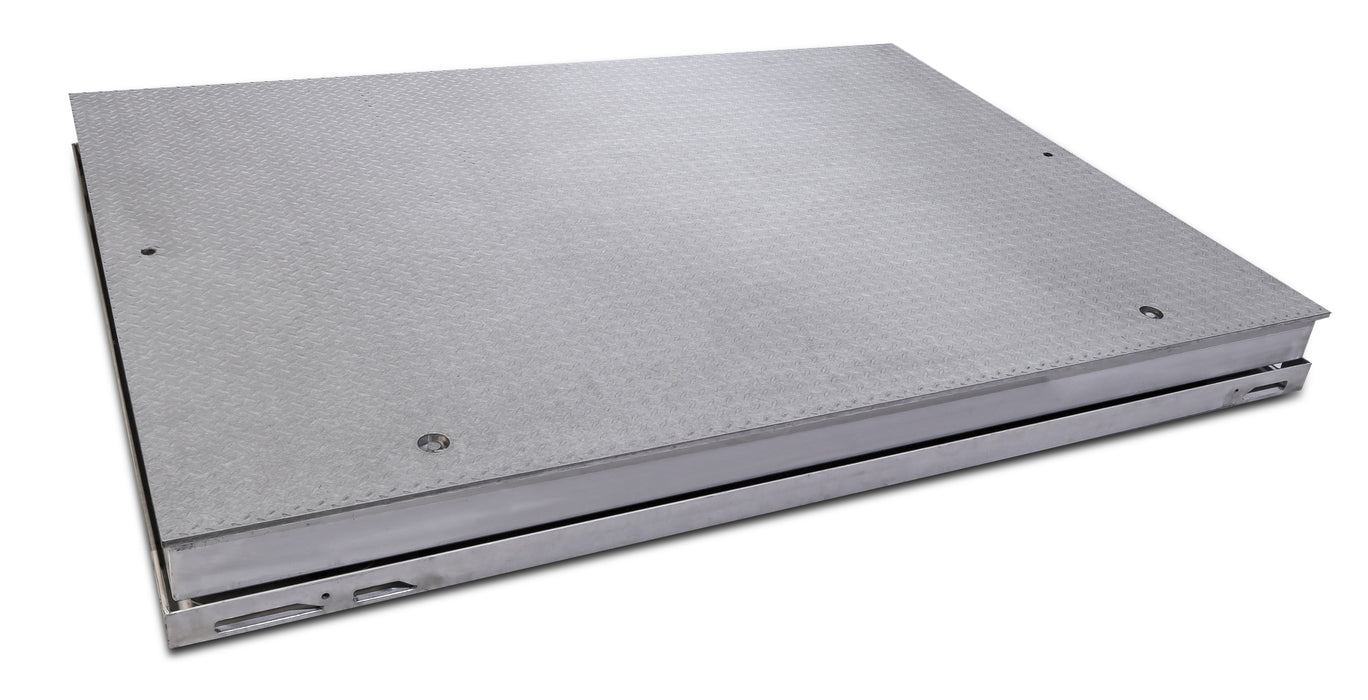

Cardinal Scale’s Guardian hydraulic HGA series floor scales feature a gas-assisted lift top deck with easy internal access for high-pressure wash-down cleaning, stainless steel hydraulic load cells that are impervious against water damage and electrical surges, 5,000 lb x 1 lb or 10,000 lb x 2 lb capacities, 4 x 4 ft and 5 x 5 ft platform sizes, and heavy-duty mild steel or stainless steel checkered decks. Cardinal Scale’s hydraulic load cells are the longest-lasting load cells on the market and carry a 10-year load cell warranty when purchased with the Guardian floor scale. The HGA floor scale’s gas-assisted cylinders do all of the heavy lifting for you and provide easy access to internal components and the floor below.



FEATURES

  • Checkered Deck for Rugged Transaction
  • Easy Internal Access for Washdown Cleaning
  • Gas-Assisted Cylinder Lifting Mechanism
  • 10-Year Load Cell Warranty
  • Longest-Lasting Load Cells on the Market
  • Mild or Stainless Steel Platforms
  • Washdown Extreme-Duty Rated

SPECIFICATIONS

  • Capacities Available: 5,000 lb x 1 lb or 10,000 lb x 2 lb
  • Platform Sizes Available: 4 x 4 ft and 5 x 5 ft
  • Platform Height: 4.7 in
  • Scale Construction: Stainless steel or mild steel
  • Deck: Checkered

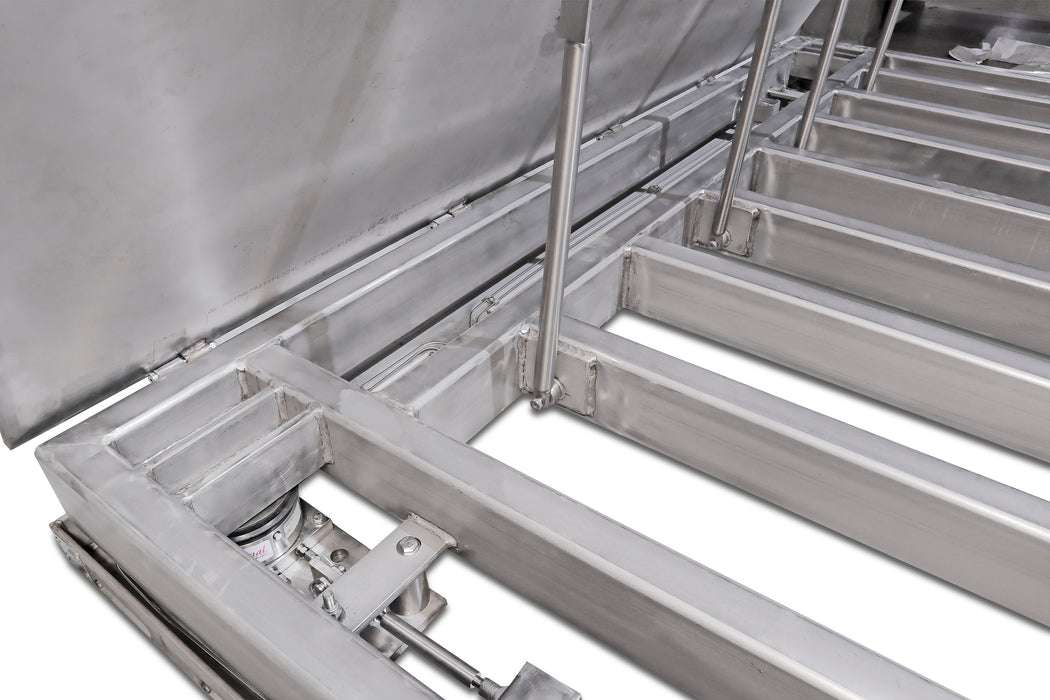

  • Lifting Mechanism: Stainless steel gas-assisted cylinder springs

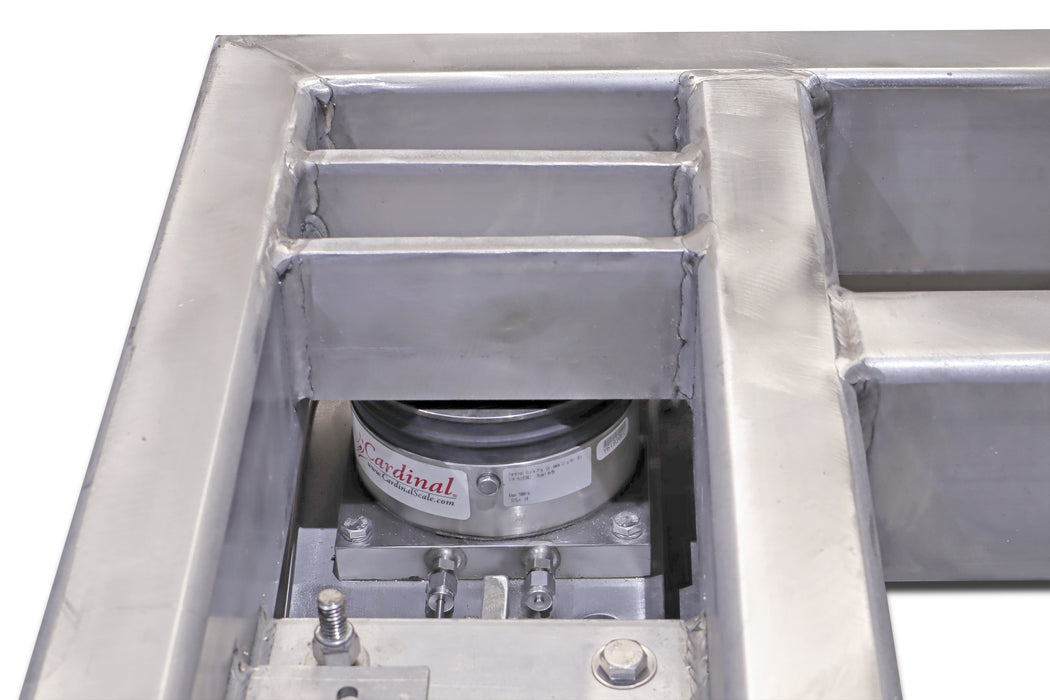

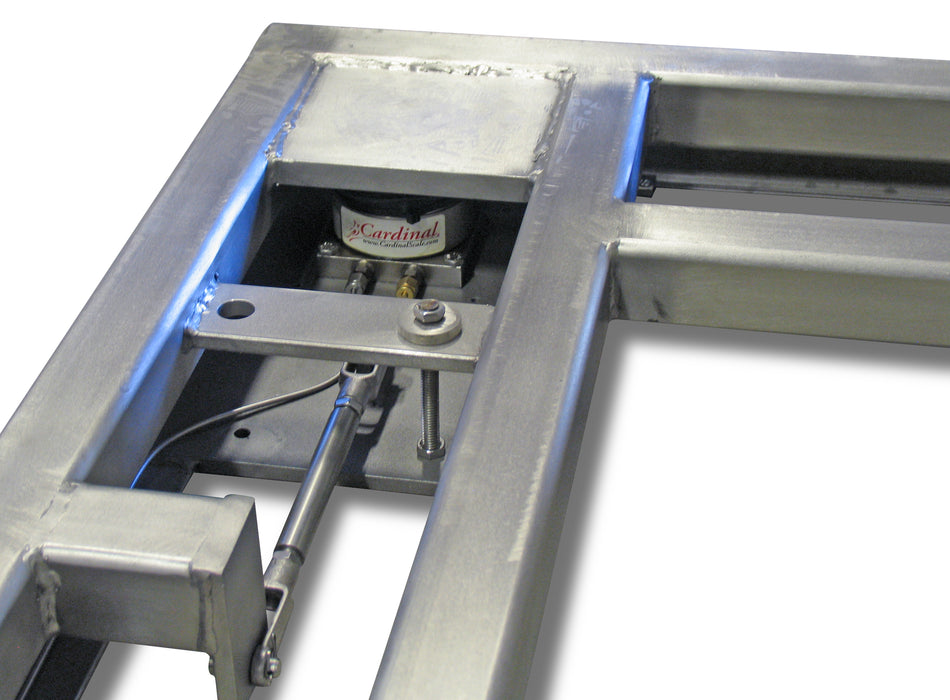

  • Load Cells: Stainless steel hydraulic waterproof load cells
  • Warranty: 10-year load cell warranty
  • Options: IP69K-rated indicators and food-grade hydraulic fluid is available for food processing facilities


Model

Description

HGA-544S

Floor Scale, Hydraulic, 4' x 4', 5,000 lb Capacity, Stainless Steel, Lift Top

HGA-555

Floor Scale, Hydraulic, 5' x 5', 5,000 lb Capacity, Mild Steel, Lift Top

HGA-555S

Floor Scale, Hydraulic, 5' x 5', 5,000 lb Capacity, Stainless Steel, Lift Top

HGA-1055

Floor Scale, Hydraulic, 5' x 5', 10,000 lb Capacity, Mild Steel, Lift Top

HGA-1055S

Floor Scale, Hydraulic, 5' x 5', 10,000 lb Capacity, Stainless Steel, Lift Top, Checker Deck



RESOURCES



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
