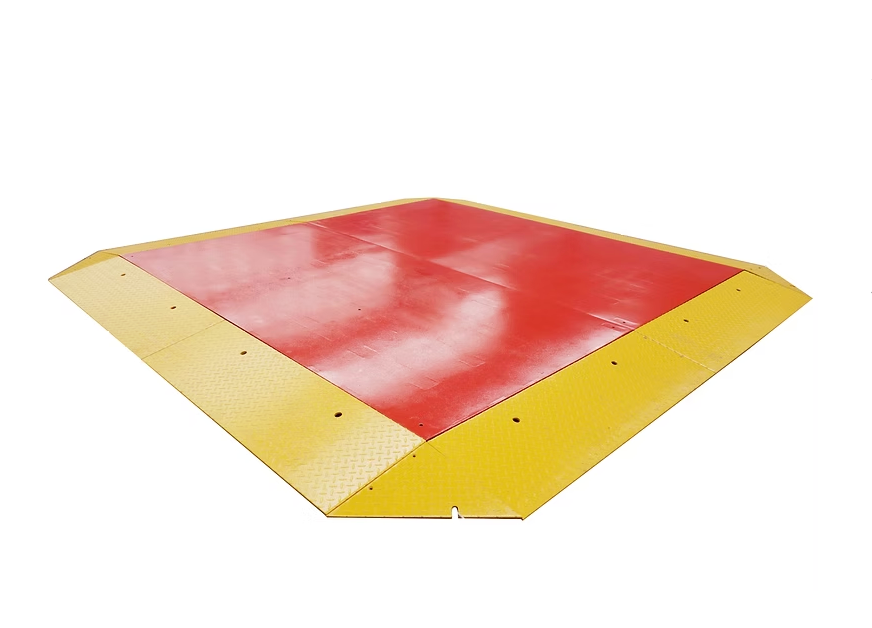

The ACP Air Cargo Pancake Scale provides a rugged, ultra-low-profile solution designed for effortless loading and unloading. With wrap-around ramps, steel deck construction, and built-in anchoring options, it ensures stability, safety, and reliability in high-demand environments.

Built for both indoor and outdoor use, this Made in USA cargo scale is ideal for weighing cargo dollies and other heavy loads with maximum efficiency. Equipped with NTEP-certified alloy steel load cells and 200% overload protection, it delivers durability and long-term accuracy. Perfect for air freight, logistics hubs, and warehouse applications where fast, precise cargo weighing is critical.

FEATURES

• Rugged steel deck construction

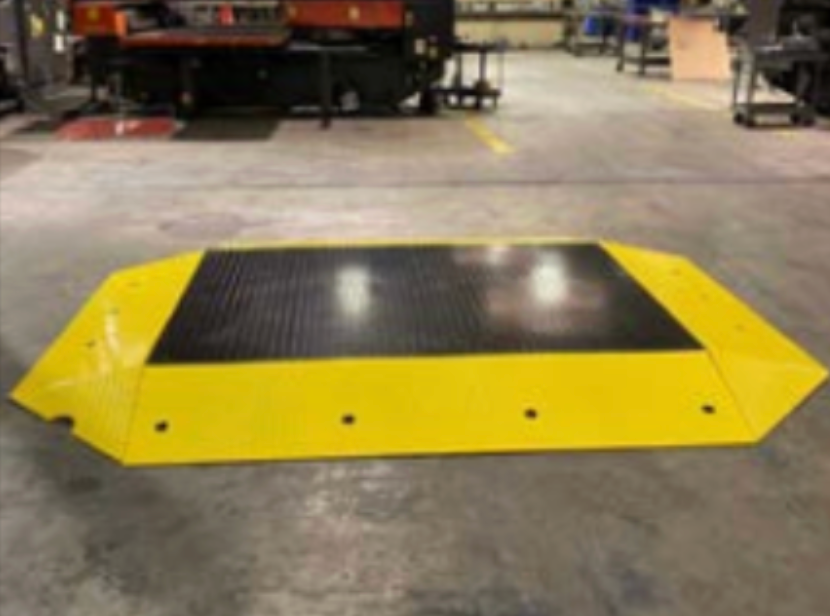

• Wrap-around ramps for easy access; eliminates
  the need for a scale pit

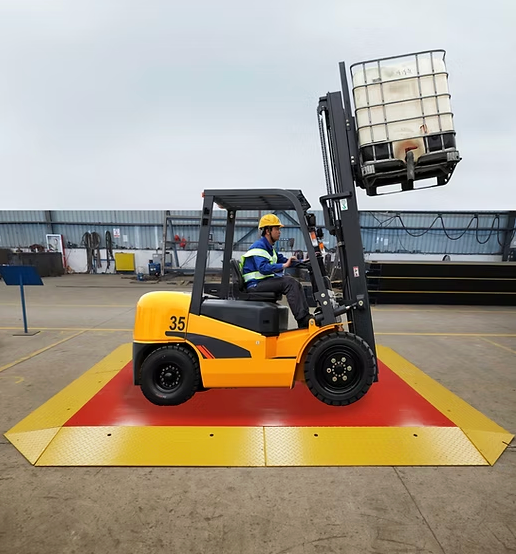

• Ultra-low profile allows easy loading of heavy items
• Holes on ramps for anchoring bolts

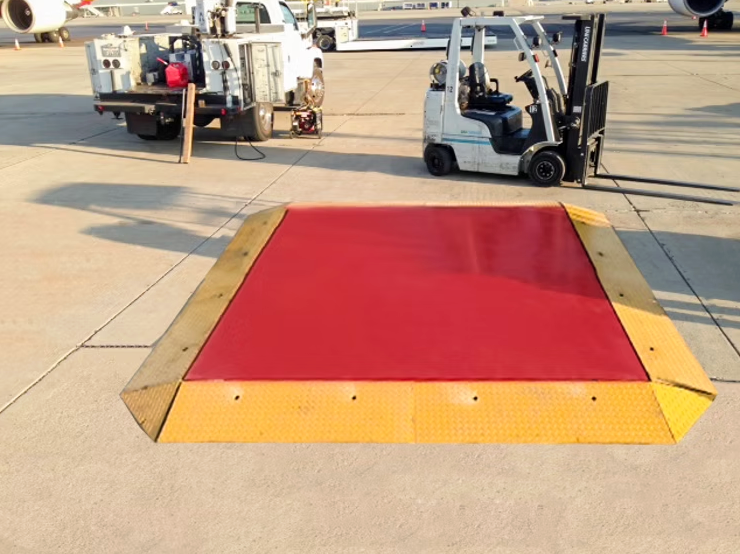

• For indoor or outdoor use

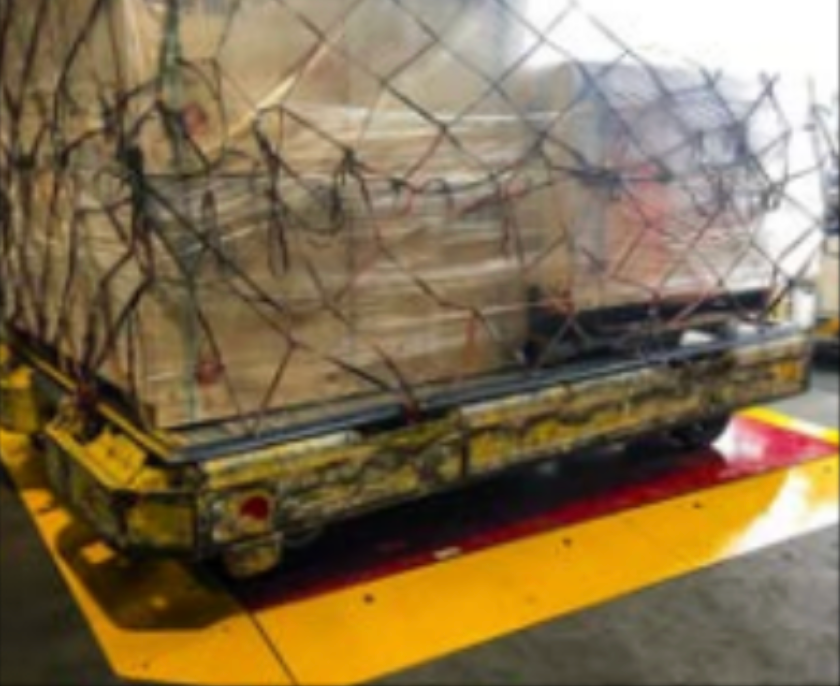

• Perfect for cargo dolly weighing
• Set up is simple for easy relocation
• Load cell capacity is 2X the scale capacity for a 200%
  overload protection
• Four NTEP certified alloy steel load cells
• Heavy duty metal shielded cable
• Custom capacity/sizes available

SPECIFICATION

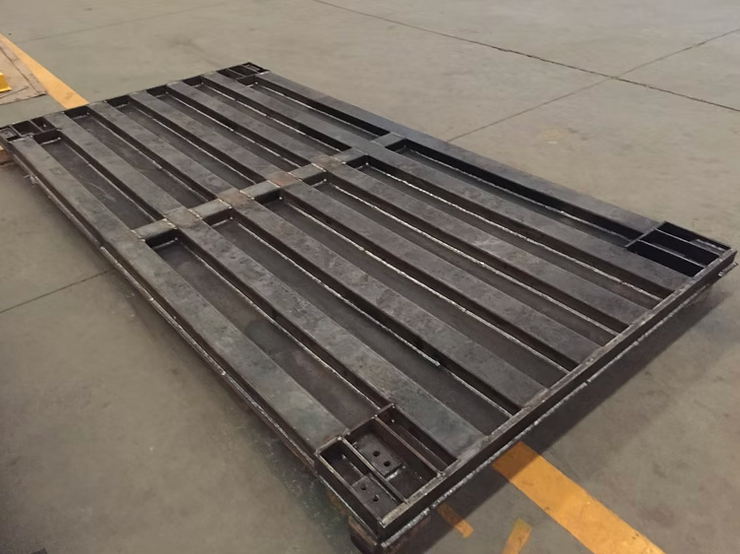

• MATERIAL: Mild Steel, powder coat finish
• WELDING: Continuous
• OVERLOAD PROTECTION: 200%
• POWER: AC/DC, built-in rechargeable
  battery (100 hrs)
• CAPACITY: 10,000 lbs - 20,000 lbs
• CABLE LENGHT: 25 ft to 45 ft
• WARRANTY: 2 years limited

OPTIONS/ ACCESSORIES

• Data logging software
• Label/Table printer
• Indicator upgrade
• Indicator stand
• Scoreboard
• Wireless communication
