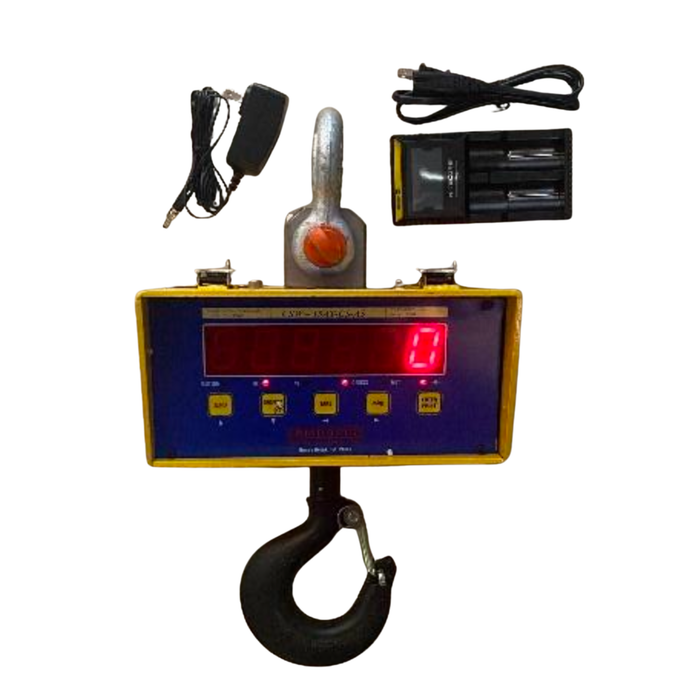

Cambridge Scale Works Model CSW-15AT-CS-AS Crane Scale Series

Cambridge Scale Works Model CSW-15AT-CS-AS Crane Scale Series

by Cambridge Scale
$2,300.00 - $3,200.00
$2,300.00
$2,300.00 - $3,200.00
$2,300.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

The Cambridge Scale Works Model CSW-15AT-CS-AS Crane Scale Series is designed for accurate overhead weighing in industrial lifting and material handling applications. Engineered for use with cranes and hoists, it provides dependable weight measurement for warehouses, manufacturing facilities, and logistics operations.

Using the CSW-15AT-CS-AS offers a stable and controlled weighing process—the suspended scale measures loads directly during lifting without interrupting workflow. This industrial crane scale is a practical solution for operations that require safe load monitoring, accuracy, and consistent performance in demanding environments.



FEATURES

  • All Steel Enclosure
  • AC/Battery Operation- 20 hrs. between charges Includes Battery Charger and External Wall Battery Charger
  • Selectable Sleep Mode to Conserve Battery Power
  • Weight Totalization
  • Net / Gross Display Modes
  • Full Range Auto Tare
  • Adjustable Sample Rate
  • Digital Filtering
  • All Pushbutton Controls
  • 1 1/2" LED Display with Selectable Brightness
  • On / Off Switch
  • Center of Zero Annunciator
  • Lb / Kg Conversion
  • Span Adjustment at Increasing or Decreasing Weights
  • 1 to 5 Points of Digital Calibration
  • Full Range Push Button Zero
  • Auto Zero Tracking
  • Adjustable Motion Detection
  • 150% Safe Overload of Load Cell
  • 300% Ultimate Overload of Load Cell
  • Light Weight for Easy Handling and Transport Approx 25 lbs depending on capacity
  • Keypad Calibration with Audit Trail
  • Wireless Remote Control



APPLICATIONS

  • Shipping & Receiving
  • General Purpose Weighing
  • Work - In Process
  • Anywhere an overhead crane is used and weight readings are desired

SPECIFICATIONS

All Steel Crane Scale WITHOUT Remote Handheld

Model Number

Capacity and Graduation

Standard Shackle & Hook

Approximate Ship Weight

CSW-15AT-CS-AS

1,000 lbs × 1 lb

(2) Ton Shackle / 1.5 Ton Hook

25 lbs

CSW-15AT-CS-AS

2,000 lbs × 2 lbs

(2) Ton Shackle / 1.5 Ton Hook

25 lbs

CSW-15AT-CS-5K-AS

5,000 lbs × 1 lb

¾-16 5T Shackle / 5 Ton Hook

30 lbs

CSW-15AT-CS-10K-AS

10,000 lbs × 2 lbs

¾-16 5T Shackle / 5 Ton Hook

30 lbs

All Steel Crane Scale WITH Remote Handheld

Model Number

Capacity & Graduation

Standard Shackle & Hook

Approx. Ship Weight

CSW-15AT-CS-AS

1,000 lb × 0.2 lb

(2) Ton Shackle / 1.5 Ton Hook

25 lb

CSW-15AT-CS-AS

2,000 lb × 0.5 lb

(2) Ton Shackle / 1.5 Ton Hook

25 lb

CSW-15AT-CS-AS

5,000 lb × 1 lb

(5) Ton Shackle / 5 Ton Hook

30 lb

CSW-15AT-CS-AS

10,000 lb × 2 lb

(5) Ton Shackle / 5 Ton Hook

30 lb


SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
