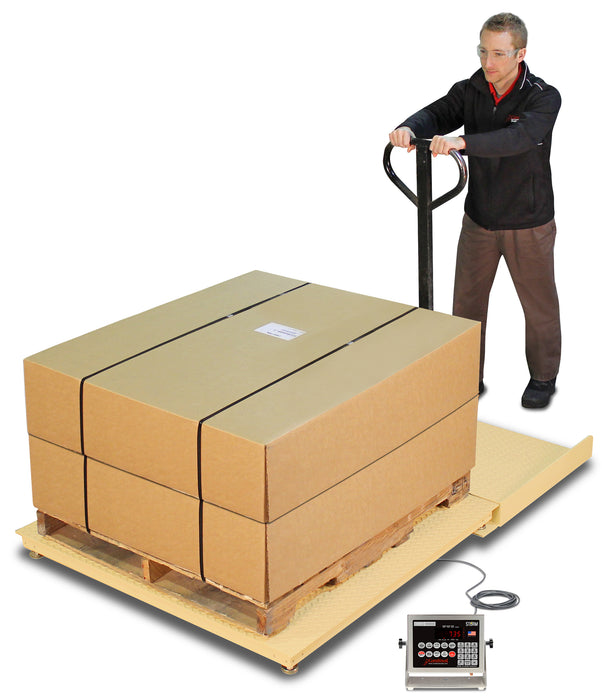

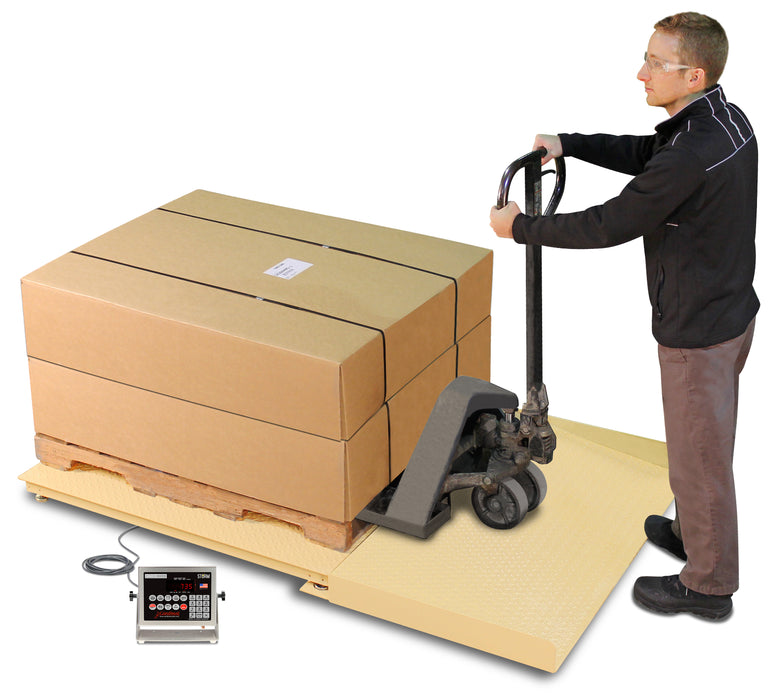

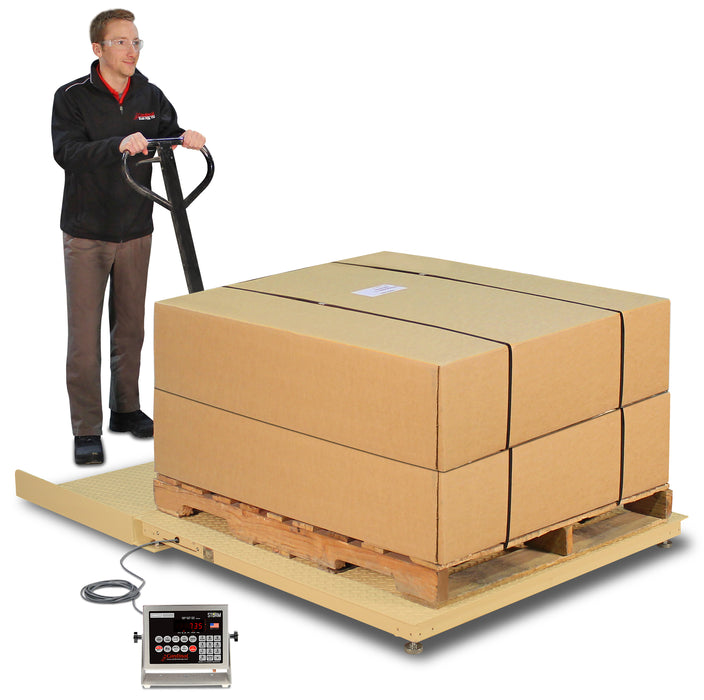

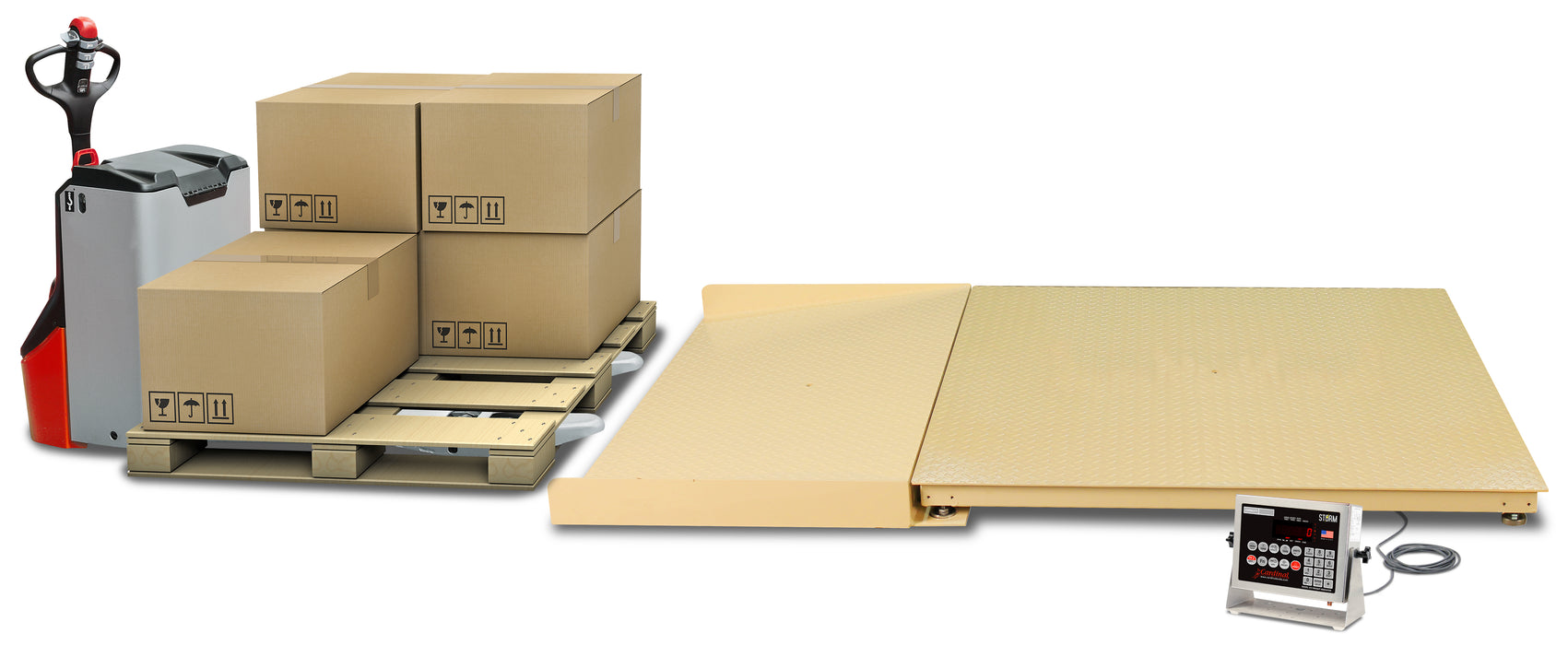

GroundForce Full-Frame Extra Heavy-Duty Floor Scales

GroundForce Full-Frame Extra Heavy-Duty Floor Scales

by Cardinal
$5,790.00 - $14,720.00
$5,790.00
$5,210.00
$5,210.00 - $13,240.00
$5,210.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cardinal Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer Warranty

✔ Made in Webb City, Missouri, USA

✔ Ships From Missouri, USA

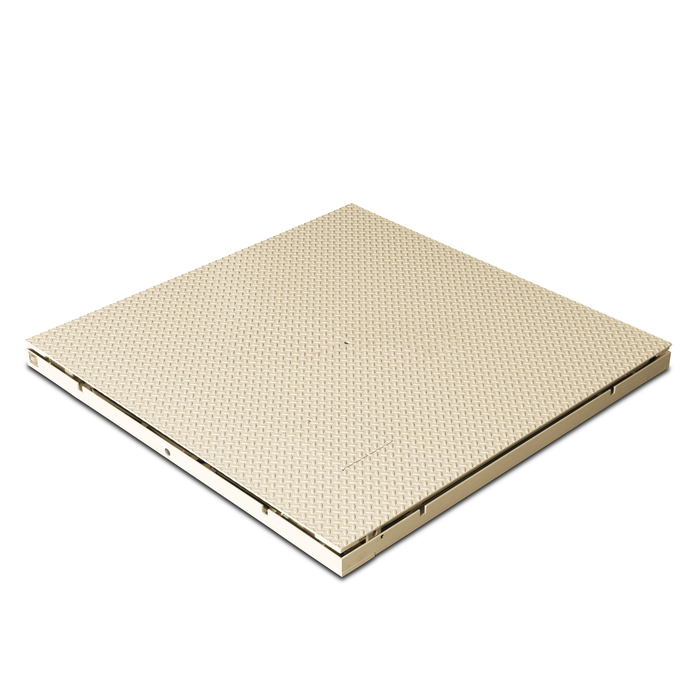

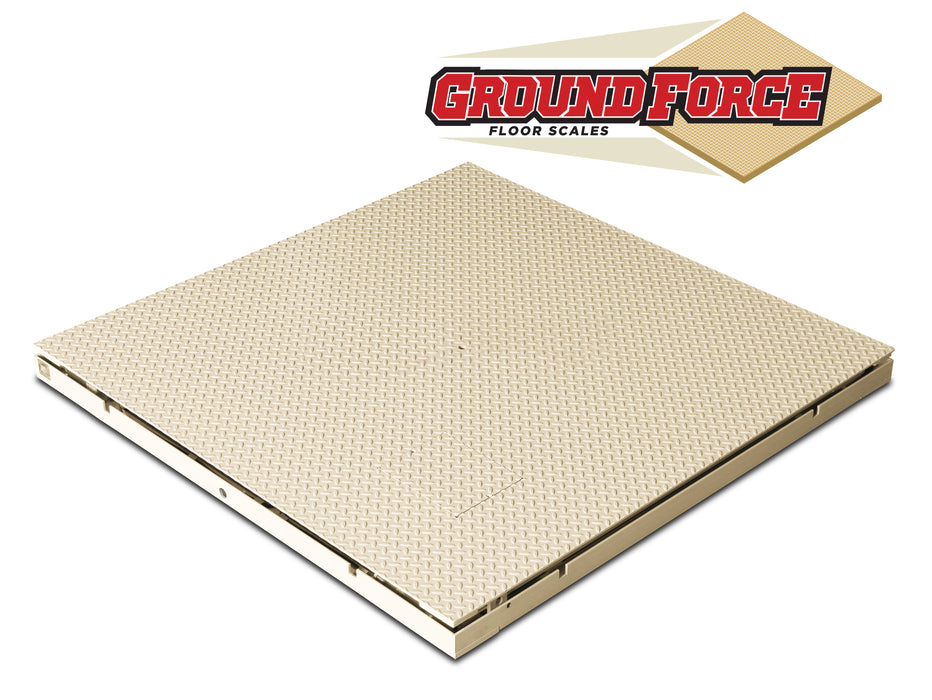

Cardinal Scale’s NTEP legal-for-trade GroundForce FH-II series electronic floor scales are ideal for easy pit installations flush-mounted with the floor surface due to their lower frame that surrounds the scale perimeter and top-side access to the junction box panel. The GroundForce features platform sizes ranging from 4 x 4 ft up to 12 x 10 ft, checkered steel scale decks for traction, anti-corrosion baked-on polyester powder paint, stainless steel hermetically-sealed waterproof load cells, optional checkered deck ramps, notched lower frame for easy ramp attachment, and capacities ranging from 5,000 lb x 1 lb up to 20,000 lb x 5 lb. Forklift runners are available for moving the scale.

FEATURES

  • Baked-on Polyester Tan Paint
  • Capacities up to 20000 lbs
  • Easy Pit Installation
  • Forklift Runner Available for Moving the Scale
  • Lower Frame Surrounds Scale Perimeter
  • Notched Lower Frame for Easy Ramp Attachment
  • NTEP Legal for Trade
  • Stainless Steel Load Cells
  • Top-Side Access Junction Box Panel


SPECIFICATIONS

  • Capacities Available:  5,000 lb x 1 lb, 10,000 lb x 2 lb, and 20,000 lb x 5 lb
  • Platform Sizes Available:  4 x 4 ft, 5 x 4 ft, 5 x 5 ft, 6 x 4 ft, 7 x 5 ft, 8 x 6 ft, 9 x 7 ft, 10 x 10 ft, and 12 x 10 ft
  • Platform Height:  Models up to 10,000 lb: 3.8 in - 20,000 models: 5.3 in
  • Scale Construction: Mild steel
  • Paint: Anti-corrosion baked-on polyester tan paint
  • Load Cells: Stainless steel hermetically-sealed waterproof load cells
  • NTEP Approval: 90-069

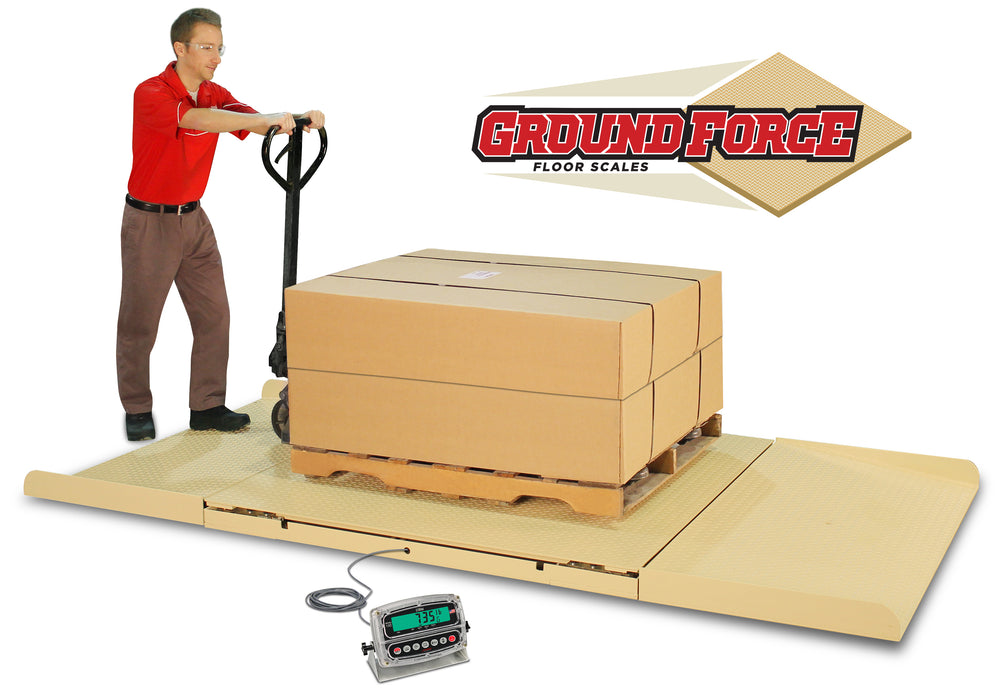

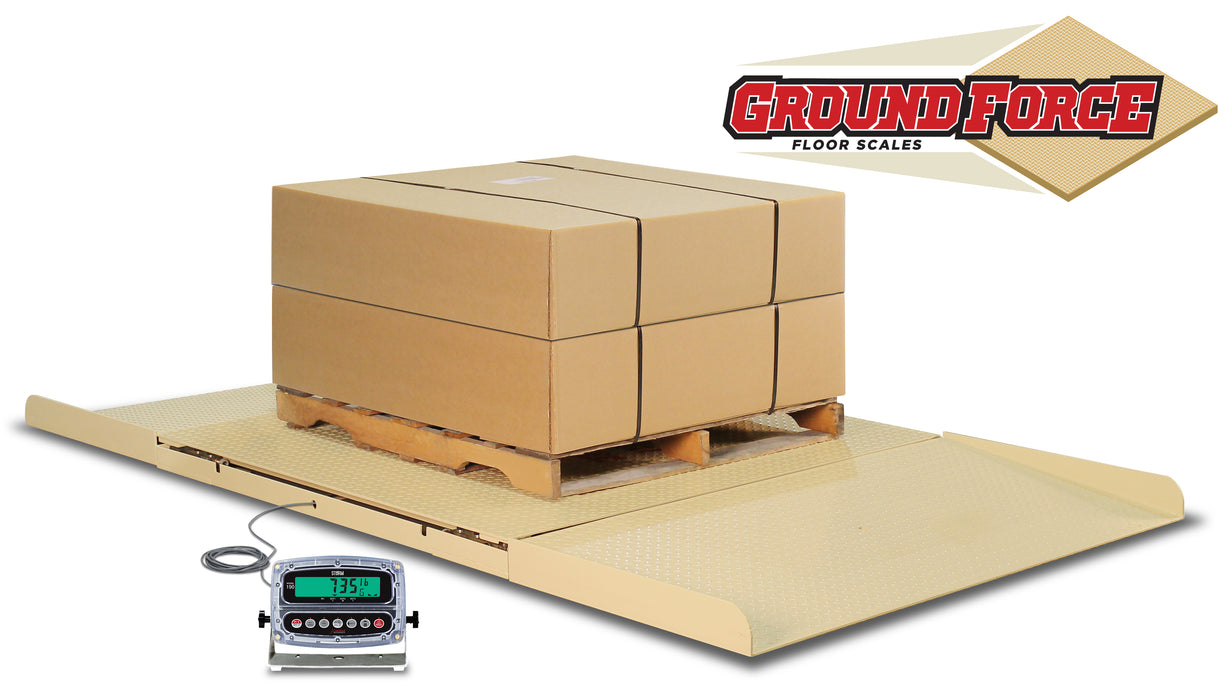

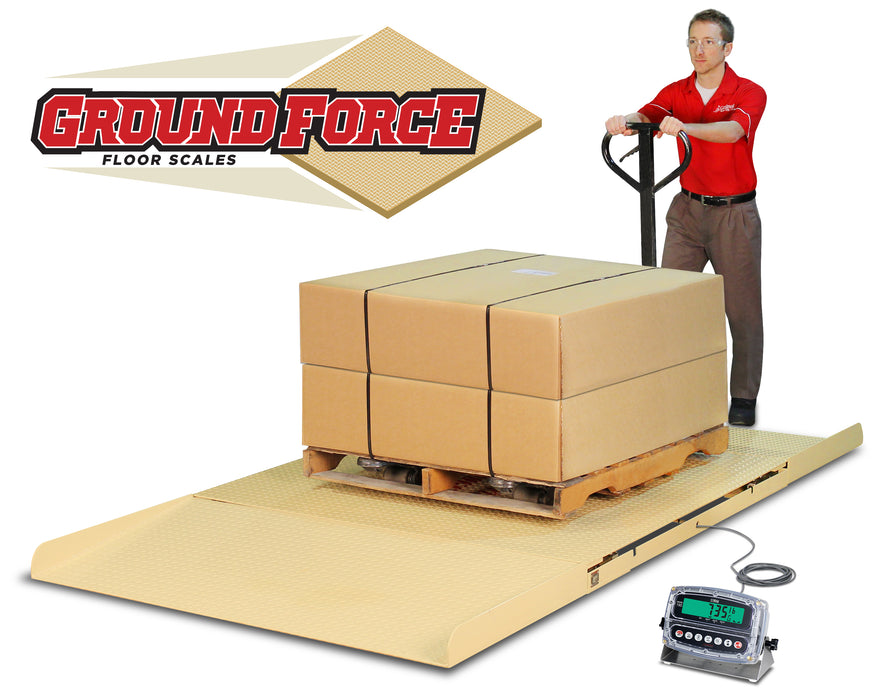

  • Options: Checkered deck ramps and digital weight indicators

Model

Description

FH-544-II

Floor Scale, Electronic, Hipless, 4' x 4', 5,000 lb Capacity, Mild Steel

FH-554-II

Floor Scale, Electronic, Hipless, 5' x 4', 5,000 lb Capacity, Mild Steel

FH-555-II

Floor Scale, Electronic, Hipless, 5' x 5', 5,000 lb Capacity, Mild Steel

FH-564-II

Floor Scale, Electronic, Hipless, 6' x 4', 5,000 lb Capacity, Mild Steel

FH-575-II

Floor Scale, Electronic, Hipless, 7' x 5', 5,000 lb Capacity, Mild Steel

FH-1044-II

Floor Scale, Electronic, Hipless, 4' x 4', 10,000 lb Capacity, Mild Steel

FH-1054-II

Floor Scale, Electronic, Hipless, 5' x 4', 10,000 lb Capacity, Mild Steel

FH-1055-II

Floor Scale, Electronic, Hipless, 5' x 5', 10,000 lb Capacity, Mild Steel

FH-1064-II

Floor Scale, Electronic, Hipless, 6' x 4', 10,000 lb Capacity, Mild Steel

FH-1075-II

Floor Scale, Electronic, Hipless, 7' x 5', 10,000 lb Capacity, Mild Steel

FH-2055-II

Floor Scale, Electronic, Hipless, 5' x 5', 20,000 lb Capacity, Mild Steel

FH-2064-II

Floor Scale, Electronic, Hipless, 6' x 4', 20,000 lb Capacity, Mild Steel

FH-2075-II

Floor Scale, Electronic, Hipless, 7' x 5', 20,000 lb Capacity, Mild Steel

FH-2086-II

Floor Scale, Electronic, Hipless, 8' x 6', 20,000 lb Capacity, Mild Steel

FH-2097-II

Floor Scale, Electronic, Hipless, 9' x 7', 20,000 lb Capacity, Mild Steel

FH-201010-II

Floor Scale, Electronic, Hipless, 10' x 10', 20,000 lb Capacity, Mild Steel

FH-201210-II

Floor Scale, Electronic, Hipless, 12' x 10', 20,000 lb Capacity, Mild Steel

OPTIONS


Model

Description

FH-1501

Ramp, 48" Wide, 20,000 Lb Capacity, Mild Steel

FH-1502

Ramp, 60" Wide, 20,000 Lb Capacity, Mild Steel

FH-1503

Ramp, 72" Wide, 20,000 Lb Capacity, Mild Steel

FH-1504

Ramp, 84" Wide, 20,000 Lb Capacity, Mild Steel

FH-1505

Ramp, 96" Wide, 20,000 Lb Capacity, Mild Steel

FH-1506

Ramp, 108" Wide, 20,000 Lb Capacity, Mild Steel

FH-1507

Ramp, 120" Wide, 20,000 Lb Capacity, Mild Steel

FH-501

Ramp, 48" Wide, 10,000 Lb Capacity, Mild Steel

FH-502

Ramp, 60" Wide, 10,000 Lb Capacity, Mild Steel

FH-503

Ramp, 72" Wide, 10,000 Lb Capacity, Mild Steel

FH-504

Ramp, 84" Wide, 10,000 Lb Capacity, Mild Steel

RESOURCES



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
