Echelon EH Series Economical Floor Scales

Echelon EH Series Economical Floor Scales

by Cardinal
$1,190.00 - $1,360.00
$1,190.00
$1,099.00
$1,099.00 - $1,220.00
$1,099.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cardinal Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer Warranty

✔ Made in Webb City, Missouri, USA

✔ Ships From Missouri, USA

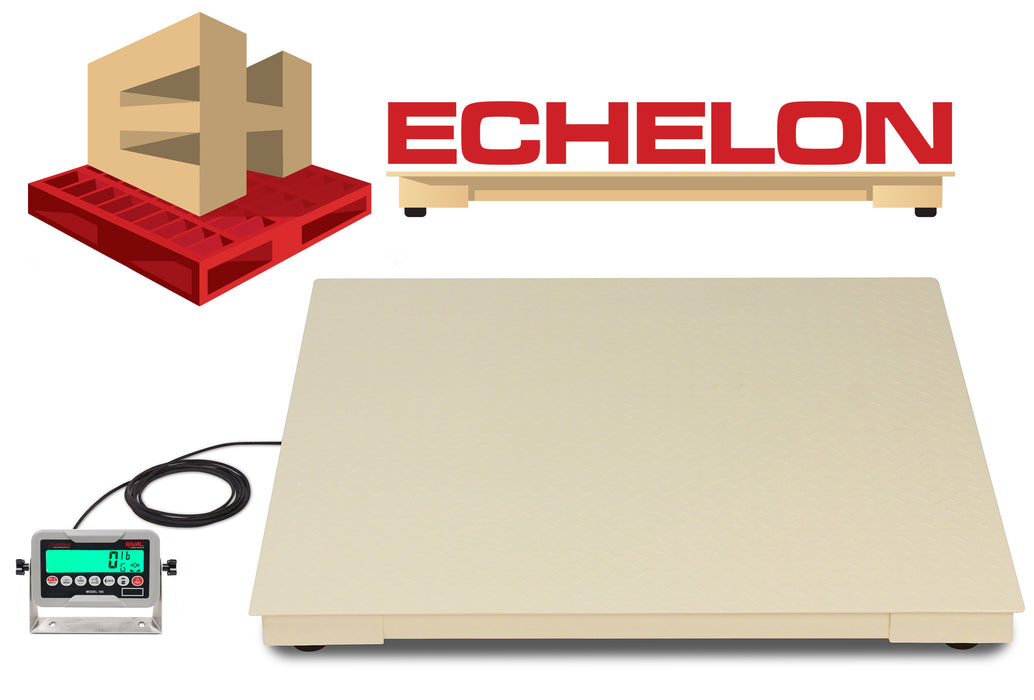

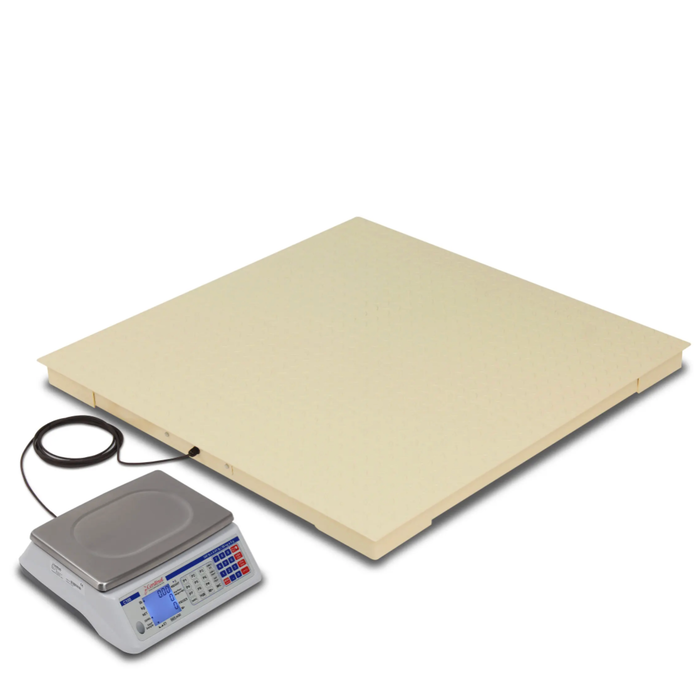

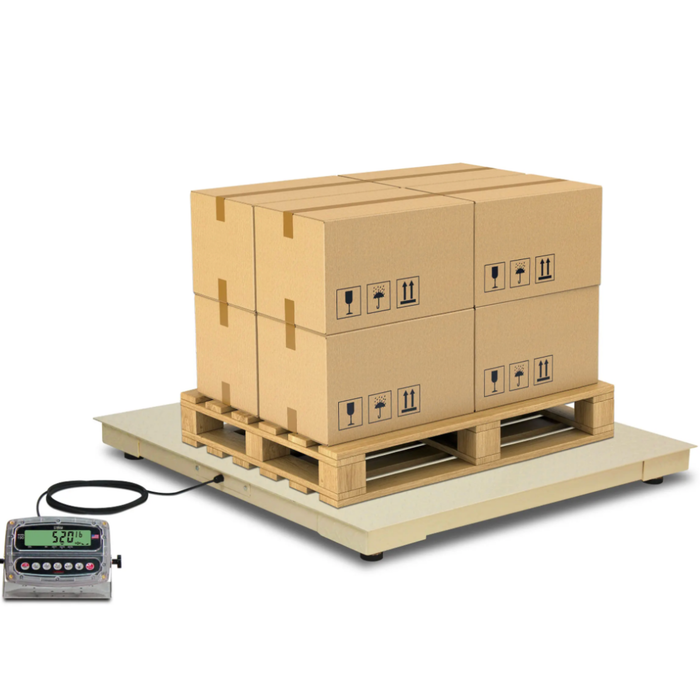

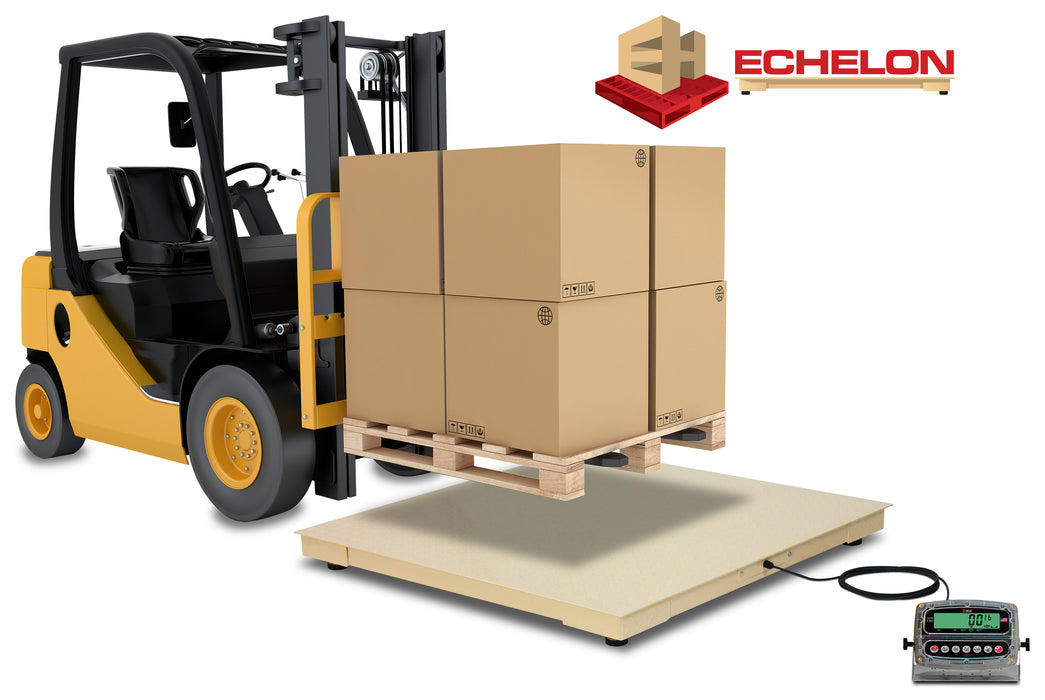

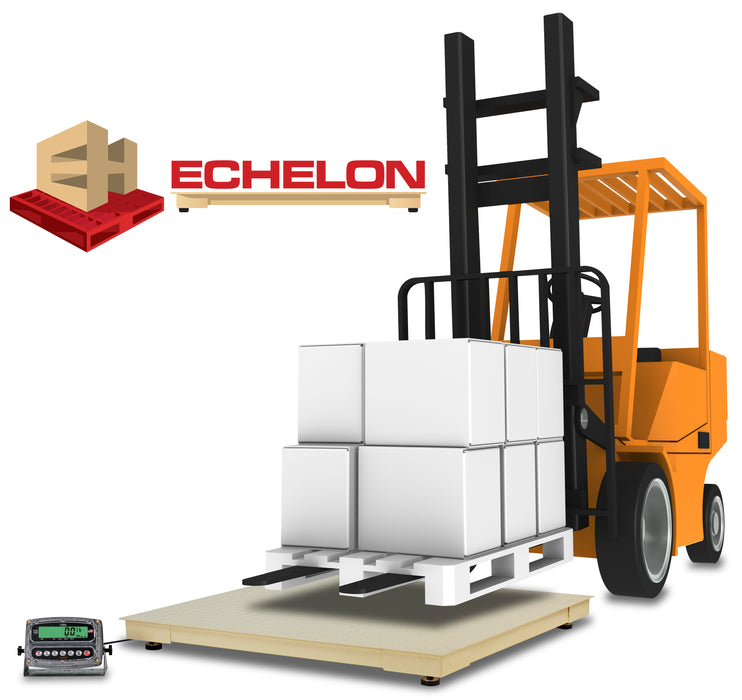

Cardinal Scale’s Echelon EH floor scales provide exceptional performance in light industrial and NTEP legal-for-trade applications for warehouses, logistics operations, processing plants, and shipping/ receiving departments. Ideally suited for pallet, drum, and package weighing, the Echelon’s checkered carbon steel deck tread-plate with powder-coat paint handles rugged industrial weighing use. The EH series features 4-ft-square platforms, 5,000 lb x 1 lb and 10,000 lb x 2 lb capacities, NTEP-approved IP67 waterproof anti-corrosion shear beam load cells, 3/16”-thick checkered steel deck, 2.2-in/5.6-cm diameter rubber feet, and durable structural steel channel.


FEATURES

  • 3/16 Inch-Thick Checkered Steel Deck Protection
  • 4 x 4 ft Checkered Steel Deck Platform
  • 5000 lb x lb or 10000 lb x 2 lb Capacity
  • Durable Structural Steel Channel
  • High-Quality Economical Floor Scales
  • Industrial Tan Powder Paint

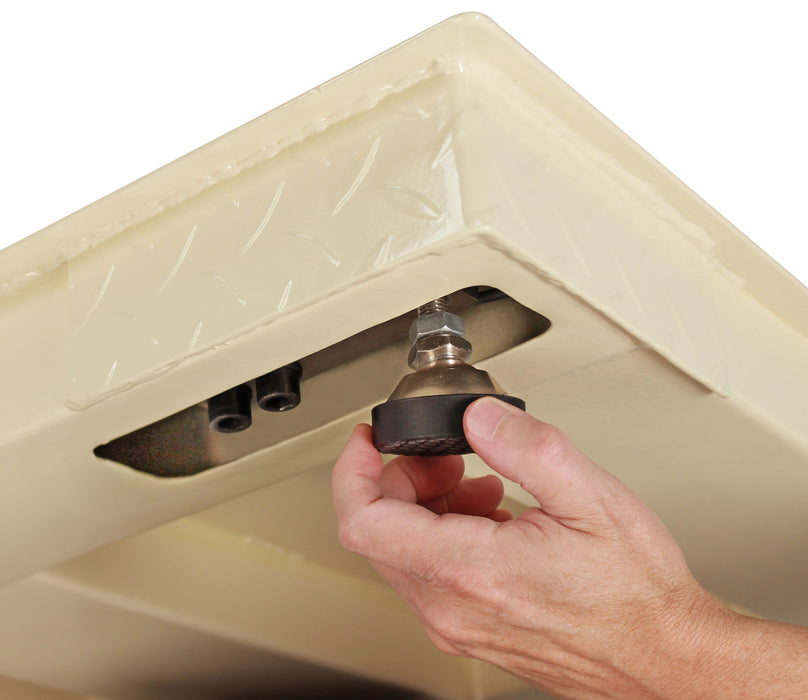

  • Load Cell Feet Swivel to Find Level Ground
  • NTEP Legal for Trade
  • NTEP-Approved Alloy Steel Shear Beam Load Cells
  • Ramps Available (model EH-501E)
  • Rubber Load Cell Footings

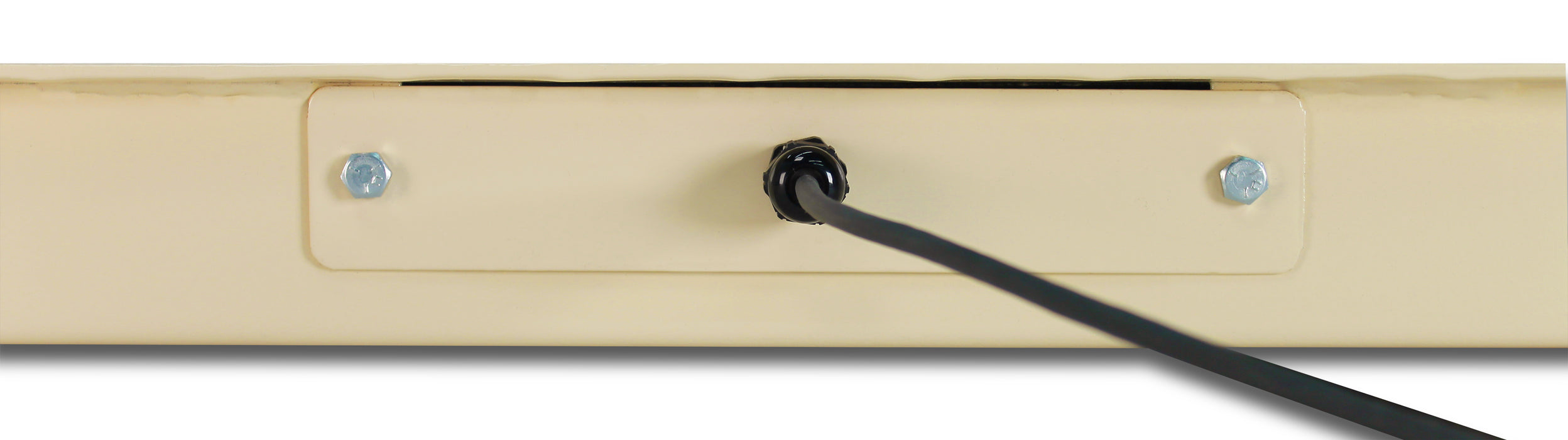

  • Side-Access Junction Box

SPECIFICATIONS

  • Capacity (EH-544): 5,000 lb x 1 lb
  • Capacity (EH-1044): 10,000 lb x 2 lb
  • Platform Size: 4 ft W x 4 ft D / 122 cm W x 122 cm D
  • Scale Height: 4 in H – 5.5 in H / 10 cm H – 14 cm H (adjustable height load cell feet)
  • Scale Construction: Painted carbon steel structure
  • Platform Surface: Checkered steel deck
  • Deck Thickness: 3/16” / 5 mm
  • Paint: Industrial tan powder paint
  • Load Cells: Four nickel-plated alloy steel IP67
  • Load Cell Cable Length: 15 ft / 4.5 m for connecting to indicator

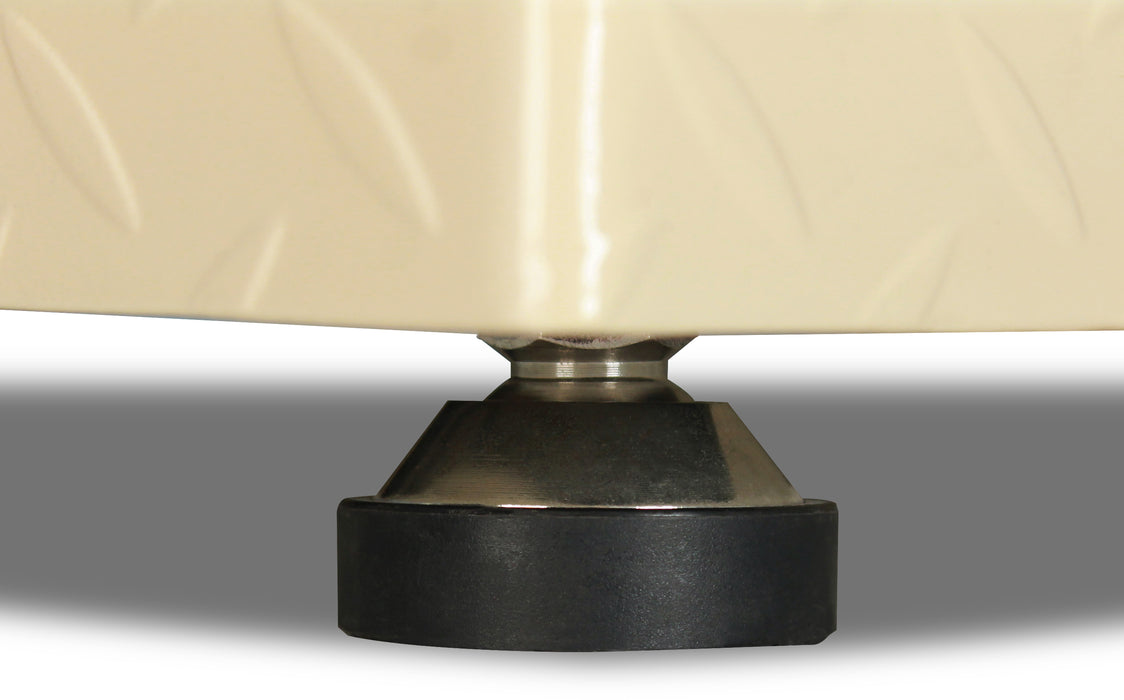

  • Load Cell Feet: Four 2.2 in / 5.6 cm diameter nickel-plated alloy steel, height adjustable
  • Junction Box: Side panel access
  • Certification: NTEP legal for trade, accuracy class III, certificate of conformance no. 15-085
  • Shipping Weight: 240 lb / 110 kg
  • LPAN: Sold without an indicator
  • Ramps (Optional): Model EH-501E (28.5 in L x 48 in W) checkered deck ramp

Model

Description

EH-544

Echelon EH Floor Scale, Electronic, 4' x 4', 5,000 lb capacity

EH-1044

Echelon EH Floor Scale, Electronic, 4' x 4', 10,000 lb capacity

OPTIONS

Model

Description

BA510K-EH

Base Anchors, EH Scale Ramp, 5K, 10K

EH-501E

Ramp, EH Series, 48" Wide, 5,000 lb Capacity, Mild Steel

RESOURCES


SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
