Detecto MCS Series, Hanging Dial Scales

Detecto MCS Series, Hanging Dial Scales

by Cardinal
$370.00 - $670.00
$370.00
$370.00 - $670.00
$370.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cardinal Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer Warranty

✔ Made in Webb City, Missouri, USA

✔ Ships From Missouri, USA

DETECTO’s MCS series hanging dial scales are built for commercial use in grocery store produce sections, farmers markets, butchers, and nut counters. DETECTO offers the MCS mechanical scale with a galvanized scoop and chains, bowl suspended by a steel bow, and also the dial by itself with two S-hooks. The large 8-inch-diameter dial is furnished with easy-to-read black graduations and numerals and a red knife pointer that indicates weight fast and accurately. The dial mechanism is protected by a clear lens while plastic housing eliminates dust and scratches. The MCS produce scale is offered in 20-lb and 40-lb capacities and includes two steel industrial-grade S-hooks (top and bottom). Double dials are available on some models, which offer viewing from either side of the dial. Designed for estimate weighing only (not legal for trade). Featured on TV’s “How It’s Made.”


    FEATURES

    • 20-lb and 40-lb Capacities
    • Accuracy Down to 1 oz
    • Available with Suspended Galvanized Scoop or Bowl
    • Dial Mechanism is Protected by the Lens
    • Double Dials Available for Viewing on Both Sides
    • Easy-to-Read Red Knife Pointer
    • Includes Two Steel S-Hooks (Top and Bottom)
    • Large 8-inch-Diameter Dial
    • No Power Required
    • Reliable Produce Estimate Weighing
    • Temperature-Compensated Springs

    SPECIFICATIONS


    RESOURCES

    Food Services Dept. Hospital Sell Sheet

    MCS Series Hanging Dial Scales Bulletin

    Dial Scale Pointer Zero Adjust Instructions

    MCS Series Parts Manual



    SHIPPING & SUPPORT

    We offer FREE SHIPPING to Lower 48 United States

    This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

    Have questions or need help choosing the right model and scale accessories?
    Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

    Compare products

    {"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

    Select first item to compare

    Select second item to compare

    Select third item to compare

    Compare
    OVERVIEW

    DETECTO’s MCS series hanging dial scales are built for commercial use in grocery store produce sections, farmers markets, butchers, and nut counters. DETECTO offers the MCS mechanical scale with a galvanized scoop and chains, bowl suspended by a steel bow, and also the dial by itself with two S-hooks. The large 8-inch-diameter dial is furnished with easy-to-read black graduations and numerals and a red knife pointer that indicates weight fast and accurately. The dial mechanism is protected by a clear lens while plastic housing eliminates dust and scratches. The MCS produce scale is offered in 20-lb and 40-lb capacities and includes two steel industrial-grade S-hooks (top and bottom). Double dials are available on some models, which offer viewing from either side of the dial. Designed for estimate weighing only (not legal for trade). Featured on TV’s “How It’s Made.”


      FEATURES
      • 20-lb and 40-lb Capacities
      • Accuracy Down to 1 oz
      • Available with Suspended Galvanized Scoop or Bowl
      • Dial Mechanism is Protected by the Lens
      • Double Dials Available for Viewing on Both Sides
      • Easy-to-Read Red Knife Pointer
      • Includes Two Steel S-Hooks (Top and Bottom)
      • Large 8-inch-Diameter Dial
      • No Power Required
      • Reliable Produce Estimate Weighing
      • Temperature-Compensated Springs
      SPECIFICATIONS

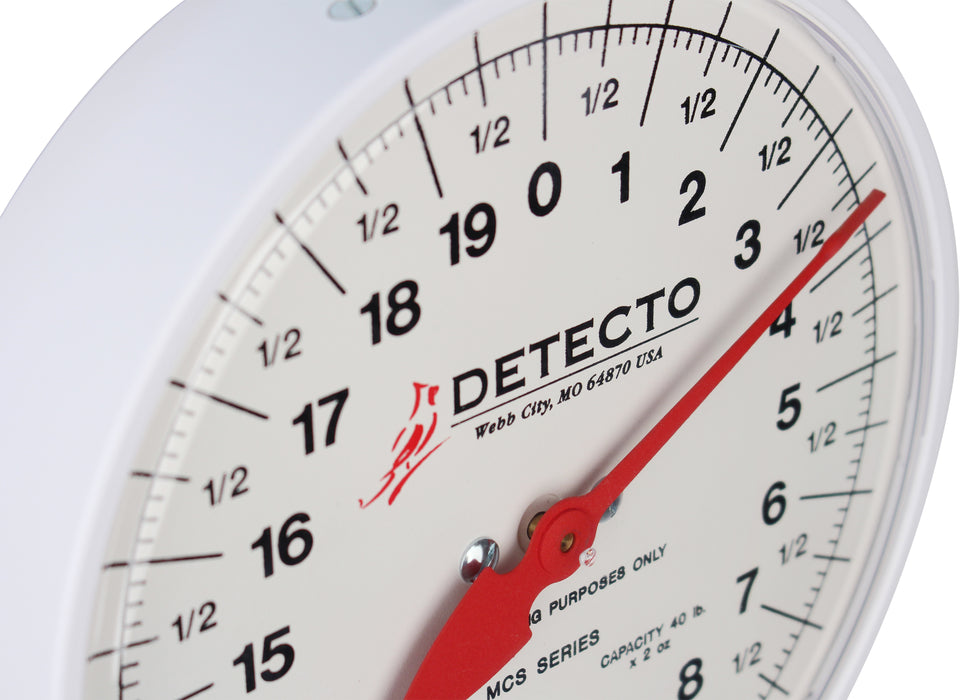

      Dial: 8-inch-diameter dial (either single or double revolution)

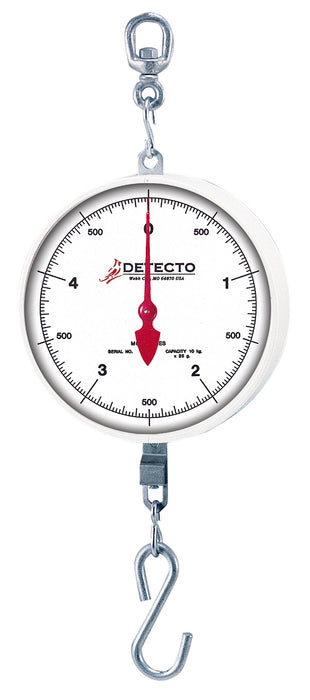

      S-hooks: Two industrial-grade steel S-hooks included with each scale (top and bottom of dial)
      Dial Dimensions (including S hook): 9.25 in W x 2 in D x 16.5 in H / 23.5 cm W x 5 cm D x 42 cm H

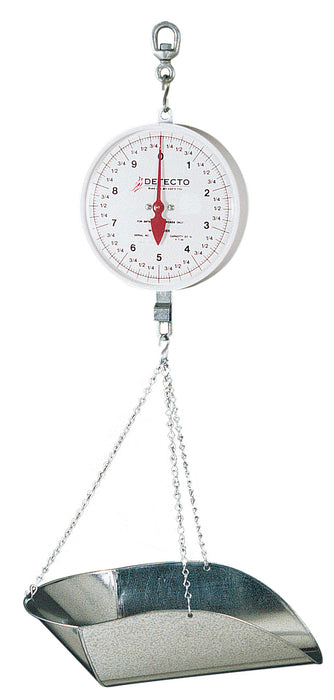

      Galvanized Scoop Dimensions: 13.75 in W x 6.4 in D x 20.5 in H / 35 cm W x 16.3 cm D x 52 cm H
      MCS-P Overall Dimensions (including S hook): 13.75 in W x 6.4 in D x 37 in H / 35 cm W x 16.3 cm D x 94 cm H

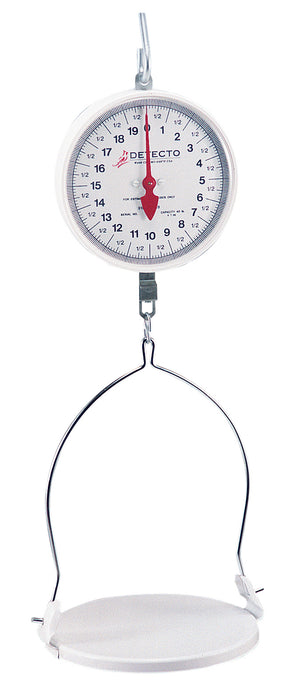

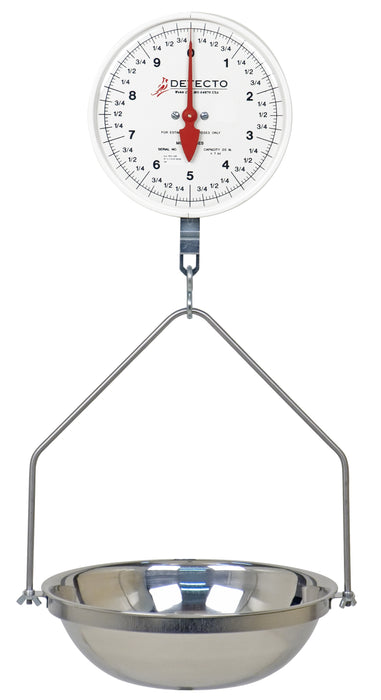

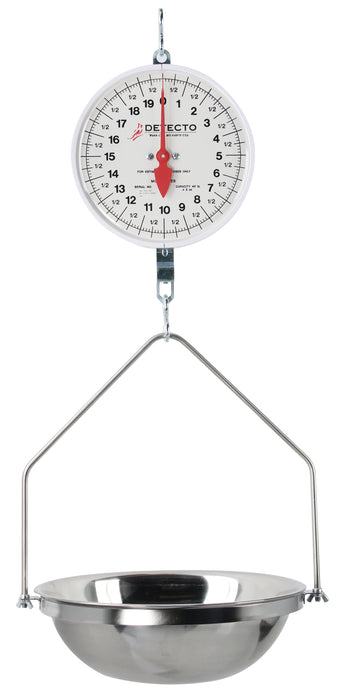

      Bowl Dimensions (with 3 drainage holes): 13.75 in W x 4.5 in D x 17 in H / 35 cm W x 11.4 cm D x 43 cm H
      MCS-F Overall Dimensions (including S hook): 13.75 in W x 4.5 in D x 33.5 in H / 35 cm W x 11.4 cm D x 85 cm H
      Capacity: Either 20 lb or 40 lb, depending upon model
      Accuracy: Either 1 oz or 2 oz, depending upon model

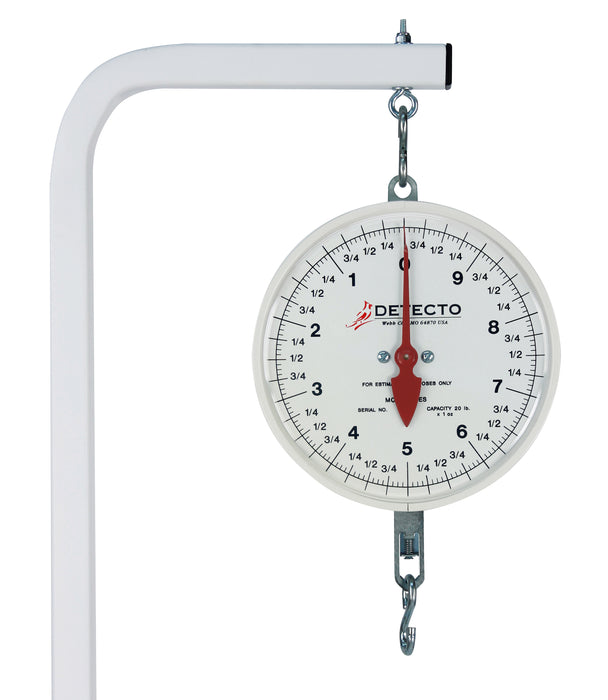

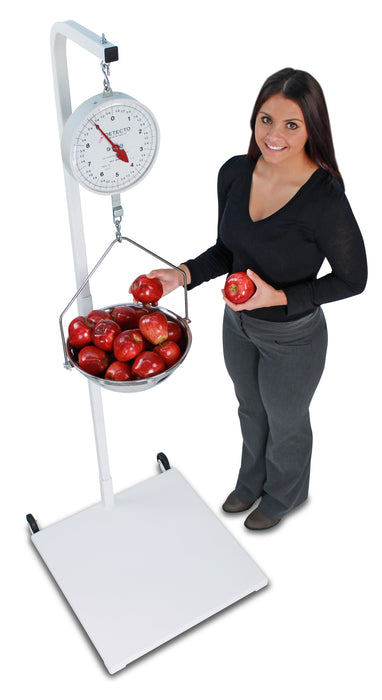

      Optional: HS-STAND hanging scale stand, also manufactured by DETECTO
      Zero Adjustment Screw: Located on the bottom of the dial
      Double Dial: Available on some models, allows viewing from both sides of the scale
      Country of Origin: USA
      For Estimation Only: Not legal for trade

      Please note that the H series models (MCS-20H, MCS-20DH, MCS-40H, MCS-40DH) cannot be used for weighing with the hook only and without a scoop or bowl due to how the scales are calibrated at the factory.




      Model

      Description

      MCS-20P

      Hanging Dial Scale, 20 Lb Capacity, Scoop

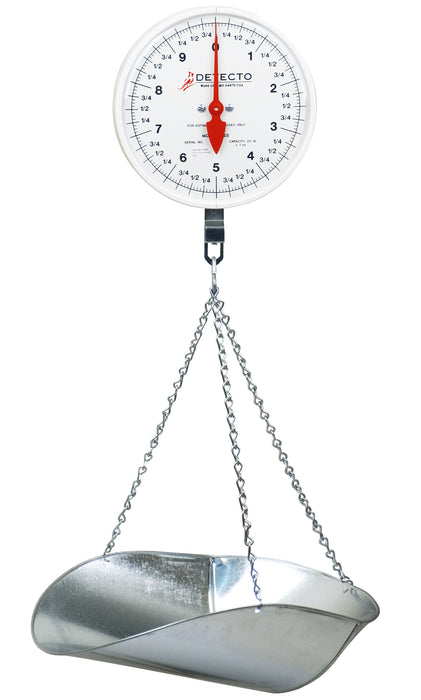

      MCS-20DP

      Hanging Dial Scale, 20 Lb Capacity, Scoop, Double Dial

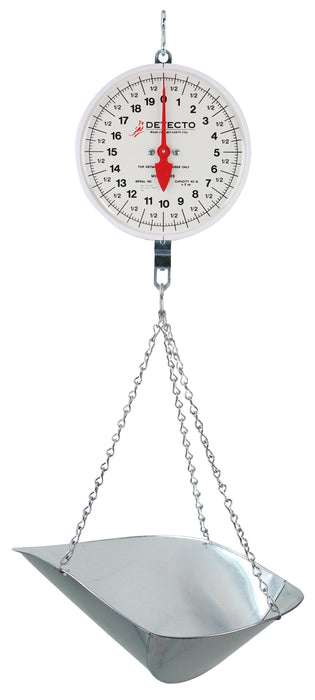

      MCS-40P

      Hanging Dial Scale, 40 Lb Capacity, Scoop

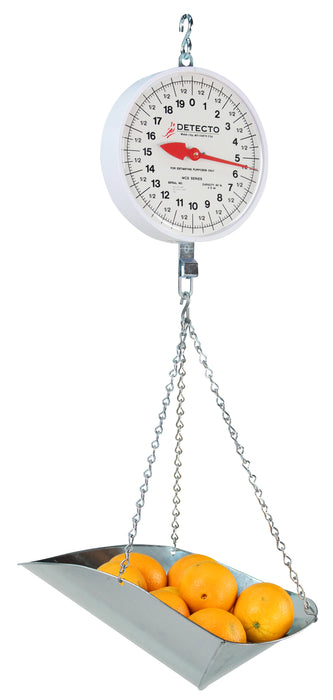

      MCS-40DP

      Hanging Dial Scale, 40 Lb Capacity, Scoop, Double Dial

      MCS-20F

      Hanging Dial Scale, 20 Lb Capacity, Fish Pan

      MCS-20DF

      Hanging Dial Scale, 20 Lb Capacity, Fish Pan, Double Dial

      MCS-40F

      Hanging Dial Scale, 40 Lb Capacity, Fish Pan

      MCS-40DF

      Hanging Dial Scale, 40 Lb Capacity, Fish Pan, Double Dial

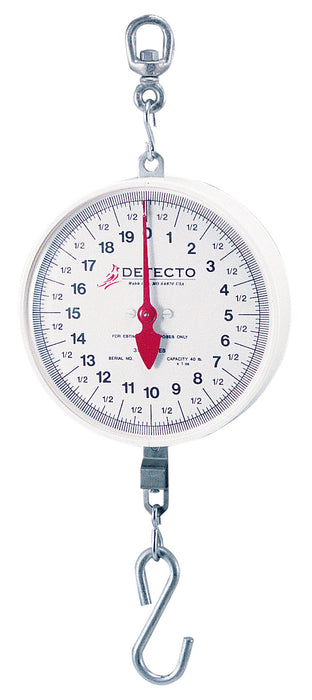

      MCS-20H

      Hanging Dial Scale, 20 Lb Capacity, Hook

      MCS-20DH

      Hanging Dial Scale, 20 Lb Capacity, Hook, Double Dial

      MCS-40H

      Hanging Dial Scale, 40 Lb Capacity, Hook

      MCS-40DH

      Hanging Dial Scale, 40 Lb Capacity, Hook, Double Dial

      RESOURCES
      Food Services Dept. Hospital Sell Sheet
      MCS Series Hanging Dial Scales Bulletin
      Dial Scale Pointer Zero Adjust Instructions
      MCS Series Parts Manual
