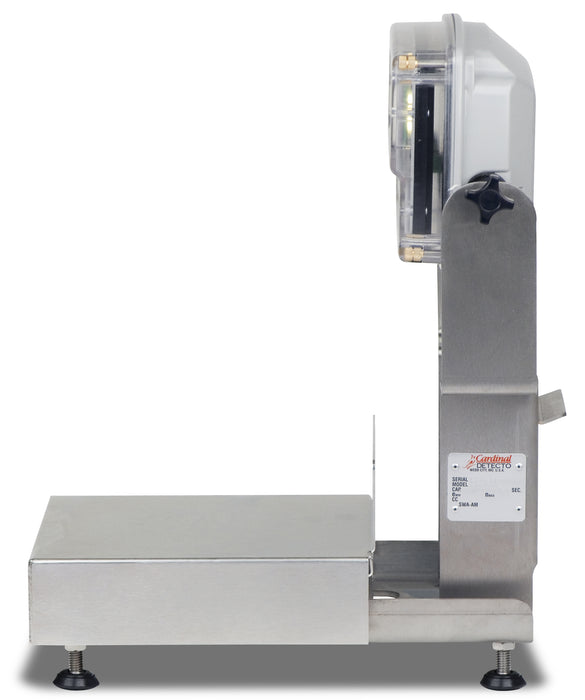

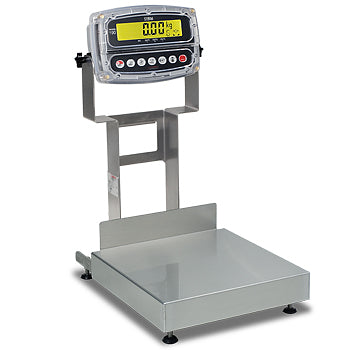

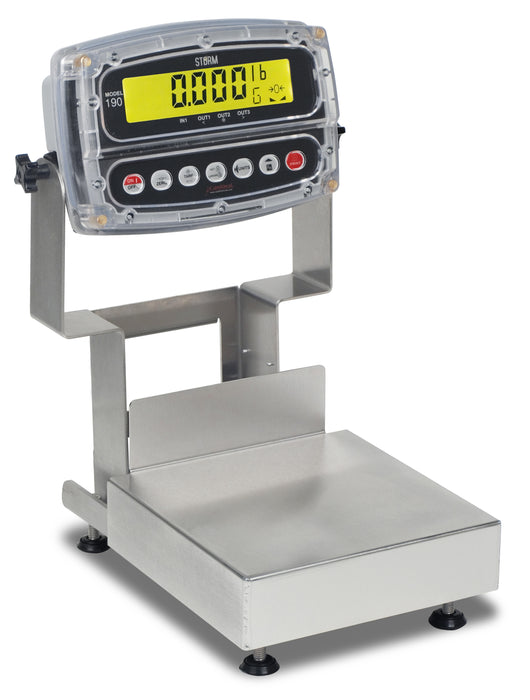

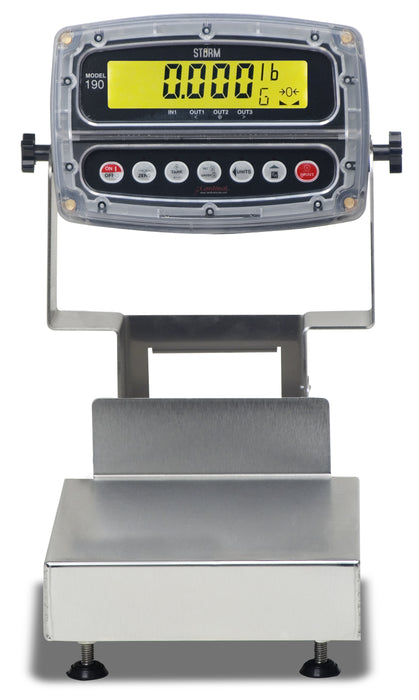

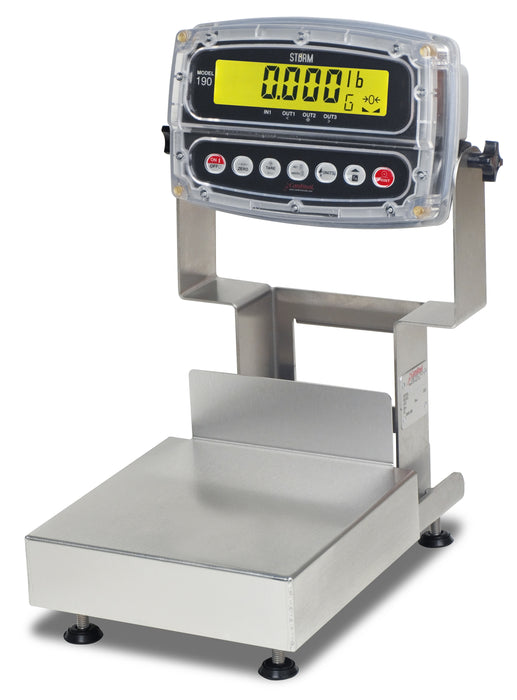

Detecto Admiral Series CA-190 Bench Scale

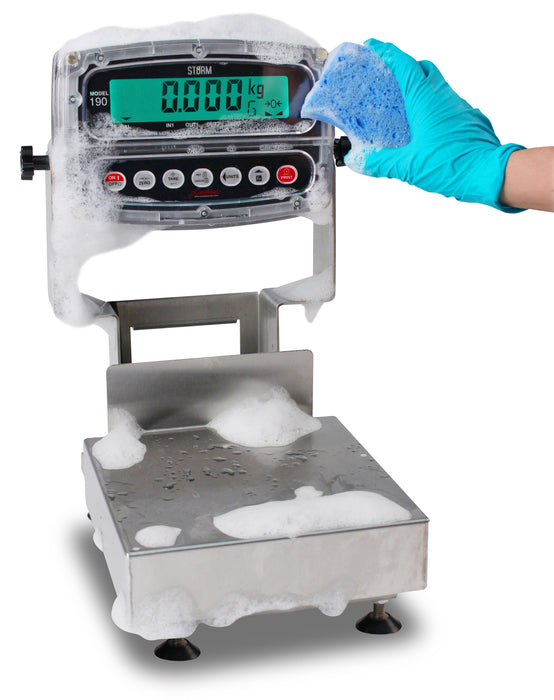

Cardinal Scale’s Admiral bench scales feature an IP69K-rated load cell and indicator, so any sensitive electronics are fully protected against close range high-pressure, high-temperature spray downs making them ideal for the food processing industry where equipment must be carefully sanitized. The heavy-duty stainless steel base is built solidly for high-usage durability. The bright, vivid ColorZONE display changes color automatically as pre-assigned target weights are reached for efficient checkweighing. In environments that require heavy washdowns, such as in the food processing industry, the combination of water, chemicals, high pressure and high temperature can prove fatal for electronic circuits and instrumentation. The Admiral’s IP69K rating offers the highest protection rating possible.

FEATURES

1 RS232
1-in-high LCD

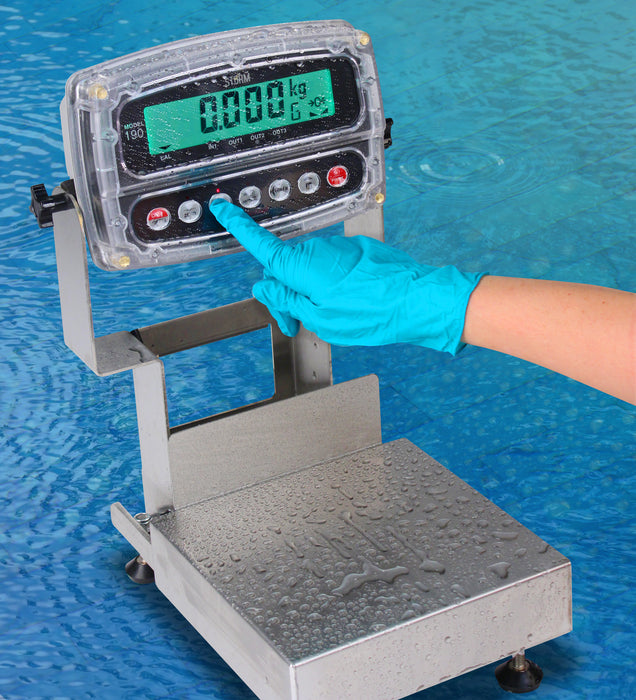

Capacitive Touch keys

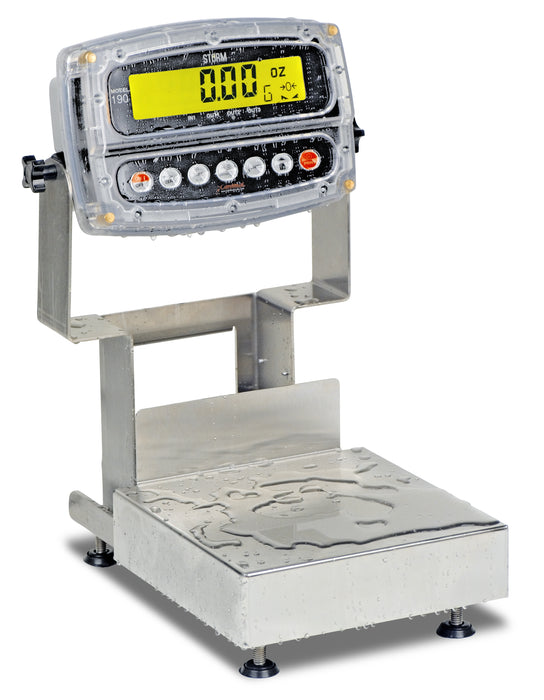

ColorZONE Checkweighing
Four Capacities Available in Metric and Imperial
Idea for Food Processing

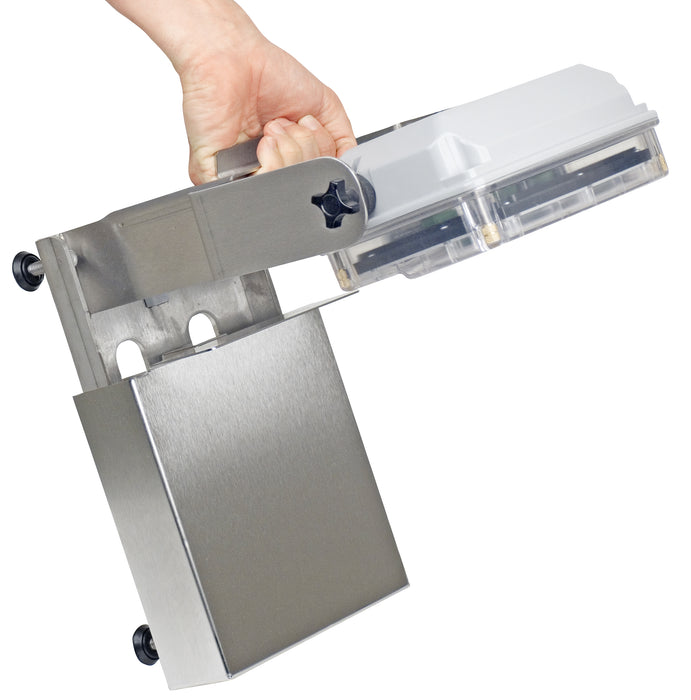

Integral Carrying Handle
Interlocking Commodity Tray
IP69K Rated - Highest Protection Rating Possible

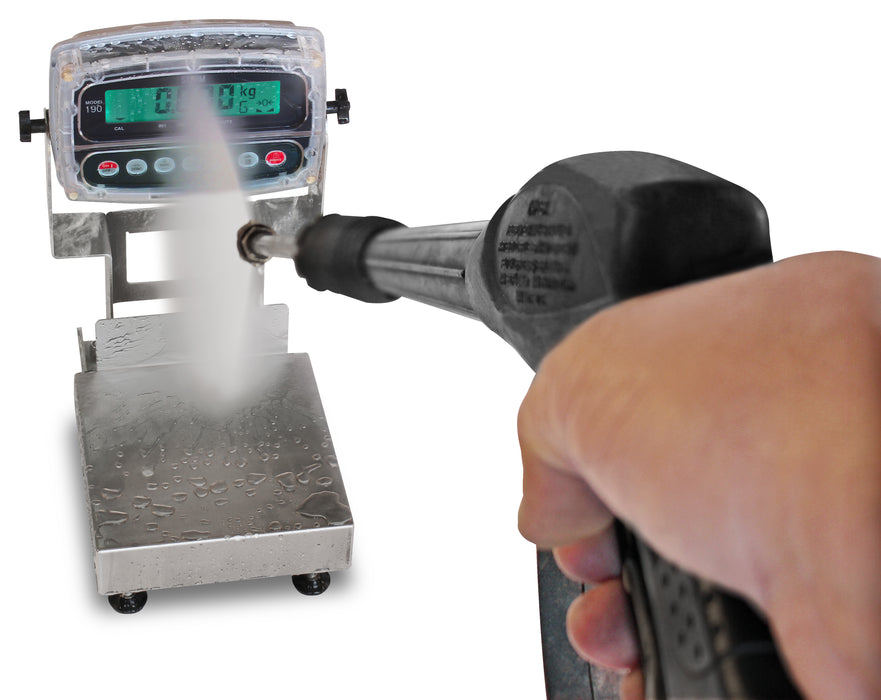

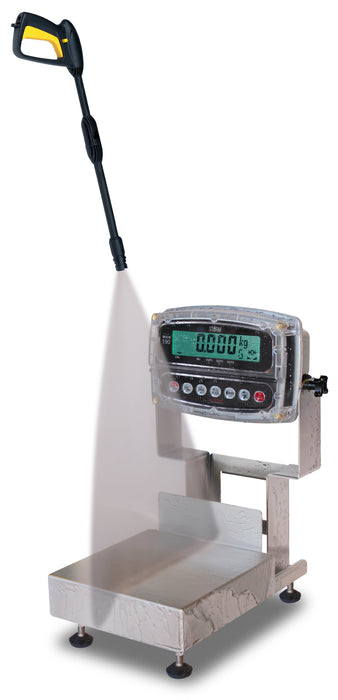

IP69K Rated for High-Pressure and High-Temperature Washdown Applications
Optional Rechargeable Battery Power Availble
Stainless Steel Platform
Washdown for Sanity Environments

SPECIFICATIONS

Indicator Construction: IP69K-rated polycarbonate and ABS enclosure (190 STORM model)
Scale Base and Column Construction: Stainless steel with IP69K-rated load cell
Operating Temperature: 14 to 104 ºF (-10 to +40 ºC)
Display: Six digit, seven segment, 1 in / 25 mm high backlit LCD
Excitation: 5.18 VDC
Signal Input Range: 0.5 mV min. to 40 mV max. (with dead load boost)
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable
Keypad: Color coded capacitive touch type, 7 keys
Standard I/O: 1 bi-directional RS232
Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max.
Optional Battery Type (model BP190): Lithium-Ion Rechargeable
Capacity (model CA8-15KGW-190): 15 kg x 0.001 kg
Capacity (model CA12-60KGW-190): 60 kg x 0.02 kg
Shipping Weight (models CA8-15KGW-190 and CA8-30W-190): 28 lb / 13 kg
Shipping Weight (models CA12-60KGW-190 and CA12-120W-190): 40 lb / 18 kg
Load Cell (models CA8-15KGW-190 and CA8-30W-190): Model SSPW-20KG stainless steel IP69K-rated
Load Cell (models CA12-60KGW-190 and CA12-120W-190): Model SSPW-75KG stainless steel IP69K-rated
Protection Rating: IP69K rated
Platform Size: CA8: 7 in / 18 cm Wide x 8.7 in / 22 cm Deep - CA12: 11 in / 28 cm Wide x 12.7 in / 32 cm Deep

Model	Description
CA8-15KGW-190	Bench Scale, Electronic, Washdown, 8" × 8", 15 kg Capacity, Stainless Steel, 190 Indicator
CA8-30W-190	Bench Scale, Electronic, Washdown, 8" × 8", 30 lb Capacity, Stainless Steel, 190 Indicator
CA12-60KGW-190	Bench Scale, Electronic, Washdown, 12" × 12", 60 kg Capacity, Stainless Steel, 190 Indicator
CA12-120W-190	Bench Scale, Electronic, Washdown, 12" × 12", 120 lb Capacity, Stainless Steel, 190 Indicator

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
