Detecto 5852F/8852F Series Legal-for-Trade Digital Platform Scales

Detecto 5852F/8852F Series Legal-for-Trade Digital Platform Scales

by Cardinal
$2,370.00 - $2,880.00
$2,370.00
$2,370.00 - $2,880.00
$2,370.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cardinal Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ Manufacturer Warranty

✔ Made in Webb City, Missouri, USA

✔ Ships From Missouri, USA

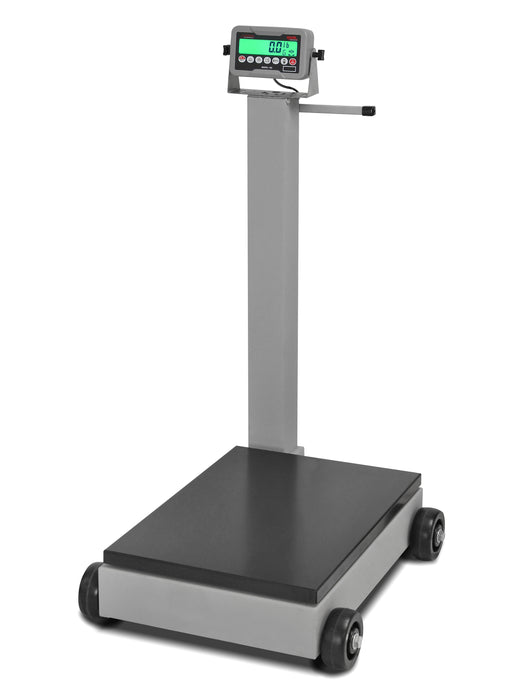

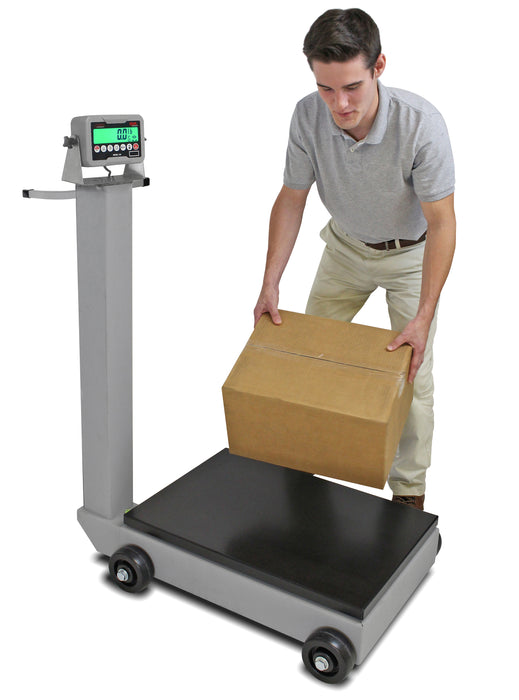

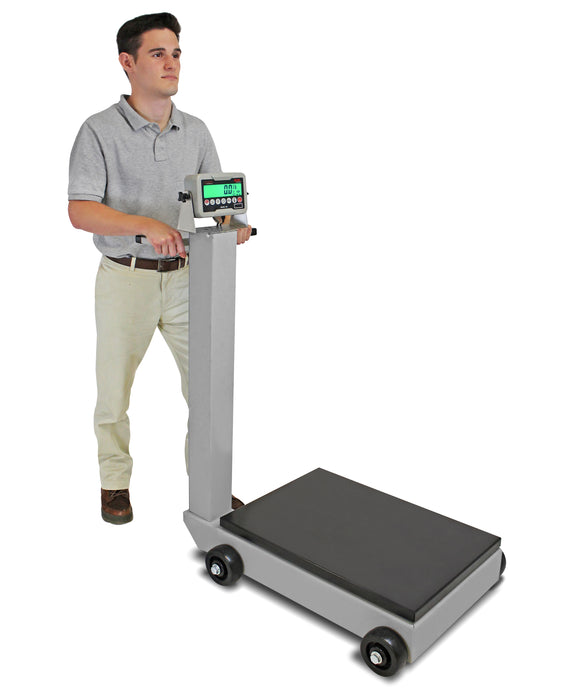

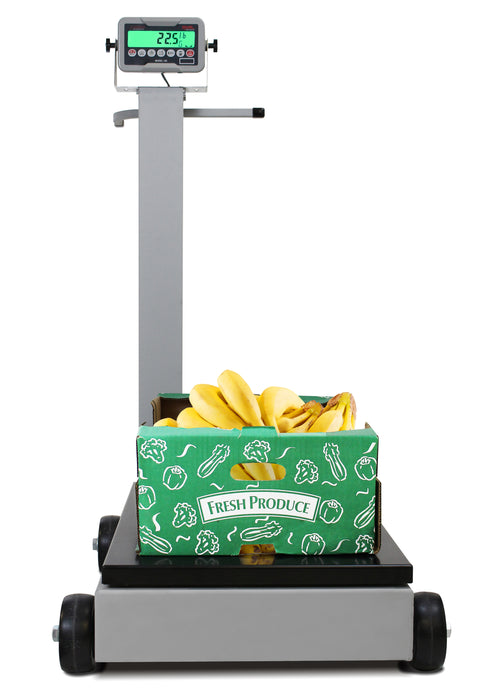

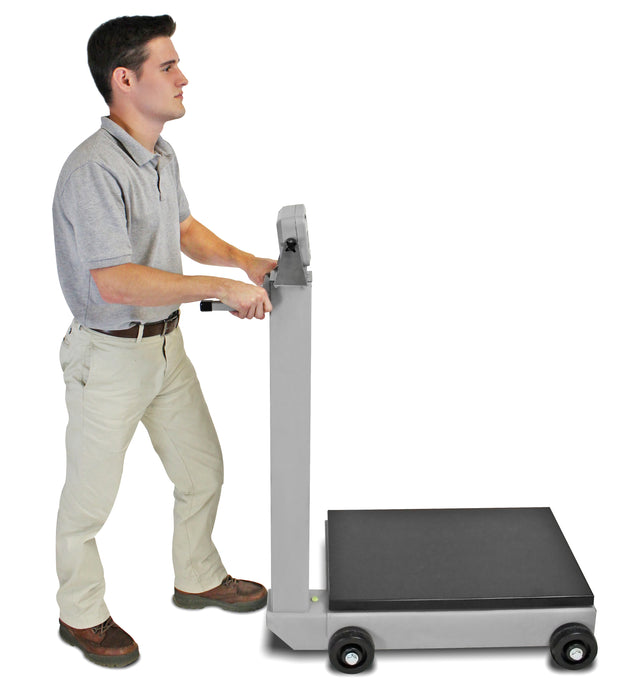

These legal-for-trade portable floor scales let the weighing come to you. The 5852F/8852F series is adaptable for versatile use in receiving departments, inventory management, commercial foodservice, in-plant weighing, material handling, bag filling, and general weighing applications. The scales are lightweight and easy to maneuver with their four large rubolene wheels. Switch easily between pounds and kilograms readouts. These scales provide cost-effective digital solutions for commercial utility scale applications. Enjoy digital speed and precision with your choice of weight indicators to suit your specific application’s needs. Models are available in either 500 lb x 0.2 lb / 220 kg x 0.1 kg or 1,000 lb x 0.5 lb / 440 kg x 0.2 kg capacity.

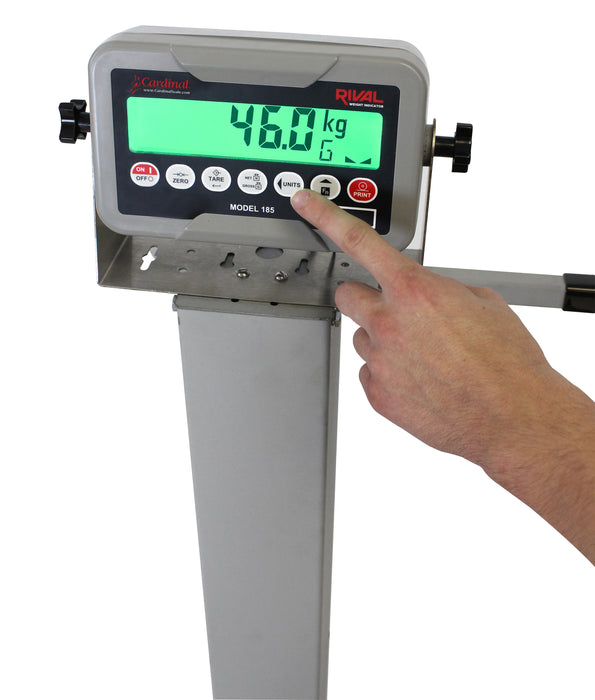

The scales’ weight indicators come with either 1-inch-high backlit LCD or 0.6-inch-high red LED, depending on the model selected. The stainless steel indicator mounting bracket lets you adjust the angle of the weight indicator where it’s easiest to read. Some models offer ticket printing capabilities when connected to a printer and others offer checkweighing mode. The -185B and -190 models have battery options for complete portability. The -185B models can be powered by six standard, off-the-shelf AA Alkaline or rechargeable Ni-Cad or NiMH batteries. The -210 models have a full alphanumeric keypad allowing manual input of tare weights and IDs.

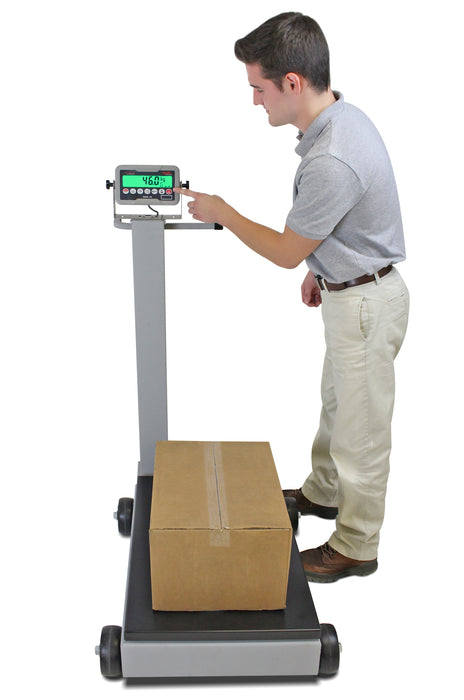

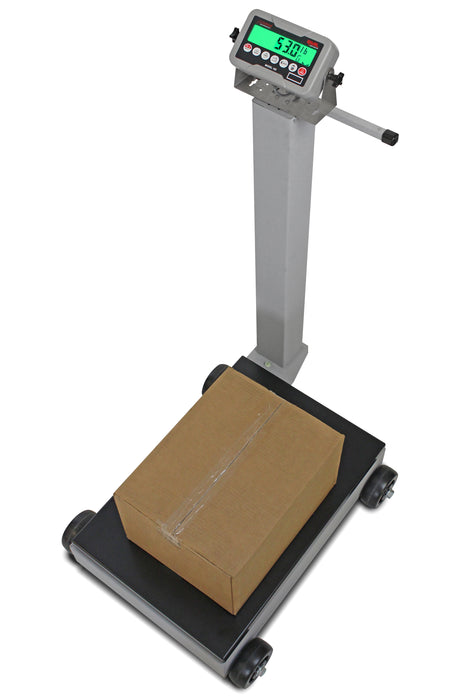

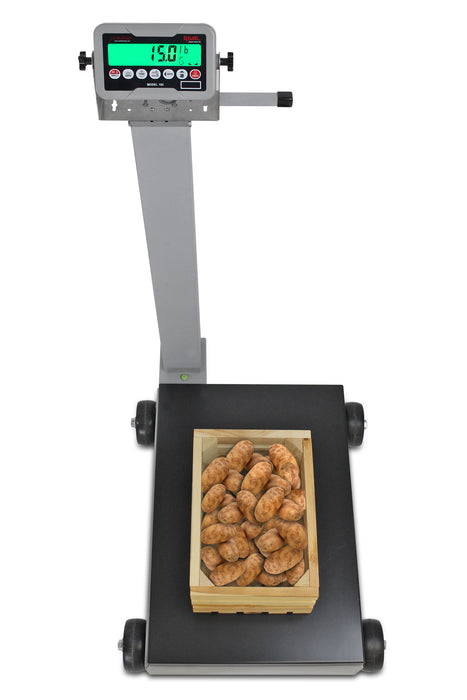

The column-mounted indicator allows plenty of room to see the weight display over items on the scale platform. Select from your choice of four different Cardinal Scale digital weight indicators, depending on your application. Guide handles provide steering for the platform scale during transport. It’s easy to maneuver, even in tight places. There is an integrated bubble level for finding the most level surface to provide accurate weighing. Easily roll the 5852F/8852F scale wherever it’s needed in your facility. Bring your scale to the location it’s needed!


    FEATURES

    • 2 capacities and 4 different weight indicators available
    • Constructed entirely of heavy-duty welded steel
    • Electrostatic powder paint coating for long life
    • 19 in W x 28 in D / 48 cm W x 71 cm D platform
    • Battery power available on some models
    • 8 different models available to choose from (listed on back page)
    • NTEP and Measurement Canada certified (8852F is not Measurement Canada approved)

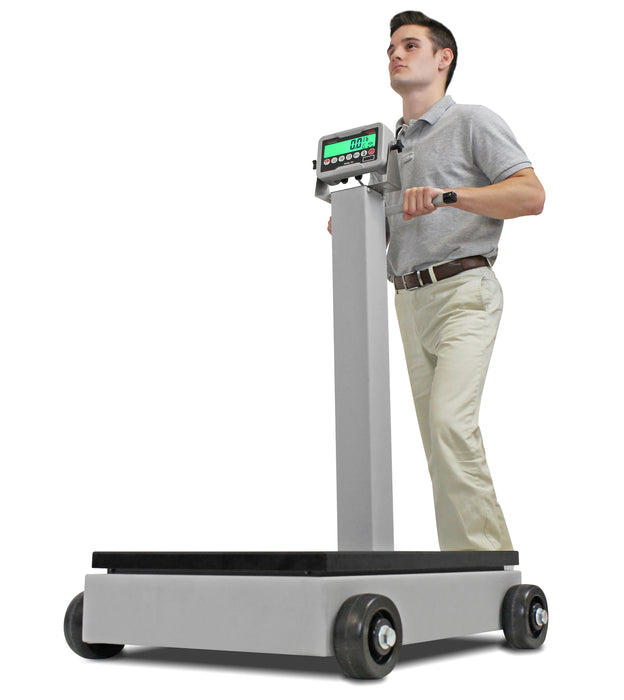

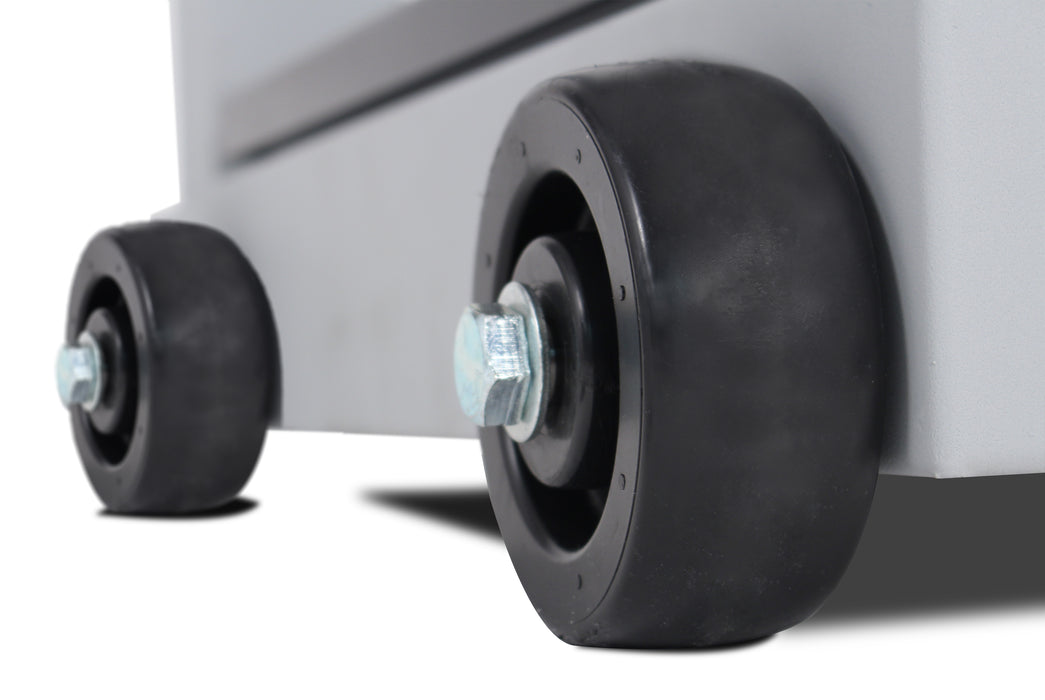

    • 5 in / 13 cm diameter rubolene wheels for maneuverability
    • Units switching from metric to avoirdupois (lb)
    • Use in receiving, agriculture, warehousing, or general industrial weighing
    • Also available in 854F series weighbeam models for intrinsically-safe  applications
    • Dependable, rugged, and durable for years of commercial weighing use


    SPECIFICATIONS

    RESOURCES

    5852F/8852F Series Portable Digital Scales Bulletin

    850F Series Portable Scale Owner’s Manual

    190 Installation and Technical Manual (English)

    205 Installation and Technical Manual (English)

    210 Installation and Technical Manual (English)



    SHIPPING & SUPPORT

    We offer FREE SHIPPING to Lower 48 United States

    This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

    Have questions or need help choosing the right model and scale accessories?
    Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

    Compare products

    {"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

    Select first item to compare

    Select second item to compare

    Select third item to compare

    Compare
    OVERVIEW

    These legal-for-trade portable floor scales let the weighing come to you. The 5852F/8852F series is adaptable for versatile use in receiving departments, inventory management, commercial foodservice, in-plant weighing, material handling, bag filling, and general weighing applications. The scales are lightweight and easy to maneuver with their four large rubolene wheels. Switch easily between pounds and kilograms readouts. These scales provide cost-effective digital solutions for commercial utility scale applications. Enjoy digital speed and precision with your choice of weight indicators to suit your specific application’s needs. Models are available in either 500 lb x 0.2 lb / 220 kg x 0.1 kg or 1,000 lb x 0.5 lb / 440 kg x 0.2 kg capacity.

    The scales’ weight indicators come with either 1-inch-high backlit LCD or 0.6-inch-high red LED, depending on the model selected. The stainless steel indicator mounting bracket lets you adjust the angle of the weight indicator where it’s easiest to read. Some models offer ticket printing capabilities when connected to a printer and others offer checkweighing mode. The -185B and -190 models have battery options for complete portability. The -185B models can be powered by six standard, off-the-shelf AA Alkaline or rechargeable Ni-Cad or NiMH batteries. The -210 models have a full alphanumeric keypad allowing manual input of tare weights and IDs.

    The column-mounted indicator allows plenty of room to see the weight display over items on the scale platform. Select from your choice of four different Cardinal Scale digital weight indicators, depending on your application. Guide handles provide steering for the platform scale during transport. It’s easy to maneuver, even in tight places. There is an integrated bubble level for finding the most level surface to provide accurate weighing. Easily roll the 5852F/8852F scale wherever it’s needed in your facility. Bring your scale to the location it’s needed!
      FEATURES
      • 2 capacities and 4 different weight indicators available
      • Constructed entirely of heavy-duty welded steel
      • Electrostatic powder paint coating for long life
      • 19 in W x 28 in D / 48 cm W x 71 cm D platform
      • Battery power available on some models
      • 8 different models available to choose from (listed on back page)
      • NTEP and Measurement Canada certified (8852F is not Measurement Canada approved)
      • 5 in / 13 cm diameter rubolene wheels for maneuverability
      • Units switching from metric to avoirdupois (lb)
      • Use in receiving, agriculture, warehousing, or general industrial weighing
      • Also available in 854F series weighbeam models for intrinsically-safe  applications
      • Dependable, rugged, and durable for years of commercial weighing use
      SPECIFICATIONS

      Capacity: 500 lb x 0.2 lb / 220 kg x 0.1 kg
      Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
      Overall Dimensions: 24.1 in W x 35 in D x 48.8 in H / 61.2 cm W x 88.9 cm D x 124 cm H
      Power: 6 AA batteries (not included) or 12 VDC at 1A AC power adapter
      Platform, Base, and Column: Mild steel with gray and black powder coat paint
      Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
      Net Weight: 105 lb / 48 kg
      Shipping Weight: 115 lb / 52 kg
      Certifications: NTEP, Measurement Canada
      Country of Origin: USA
      UPC Code: 809161321807
      Weight Indicator: 185B
      Power Requirements: 6 AA batteries
      Battery Power Optional: Battery operation is standard
      Indicator Enclosure Construction: ABS
      Indicator IP Rating: IP66
      Features: Counting, Pushbutton Tare, 1 RS232 Serial Port
      Display Type: 1-in-high backlit green LCD
      Number of Keys/Keypad Type: 7-key membrane

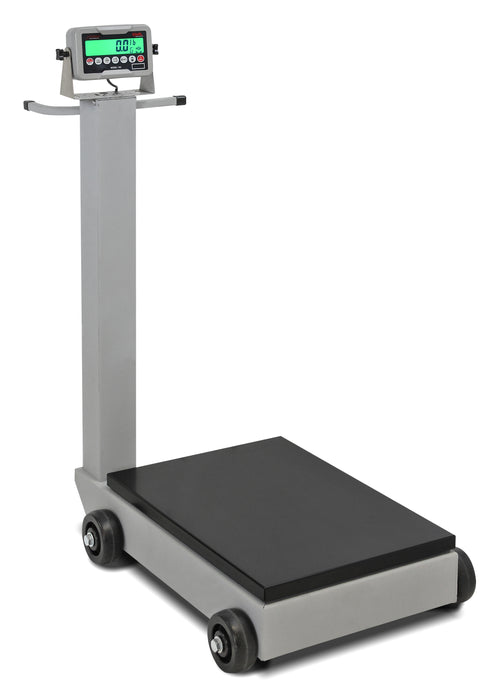

      8852F-185B

      Capacity: 1,000 lb x 0.5 lb / 440 kg x 0.2 kg
      Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
      Overall Dimensions: 24.1 in W x 35 in D x 48.8 in H / 61.2 cm W x 88.9 cm D x 124 cm H
      Power: 6 AA batteries (not included) or 12 VDC at 1A AC power adapter
      Platform, Base, and Column: Mild steel with gray and black powder coat paint
      Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
      Net Weight: 105 lb / 48 kg
      Shipping Weight: 115 lb / 52 kg
      Certifications: NTEP
      Country of Origin: USA
      UPC Code: 809161321906
      Weight Indicator: 185B
      Power Requirements: 6 AA batteries
      Battery Power Optional: Battery operation is standard
      Indicator Enclosure Construction: ABS
      Indicator IP Rating: IP66
      Features: Counting, Pushbutton Tare, 1 RS232 Serial Port
      Display Type: 1-in-high backlit green LCD
      Number of Keys/Keypad Type: 7-key membrane

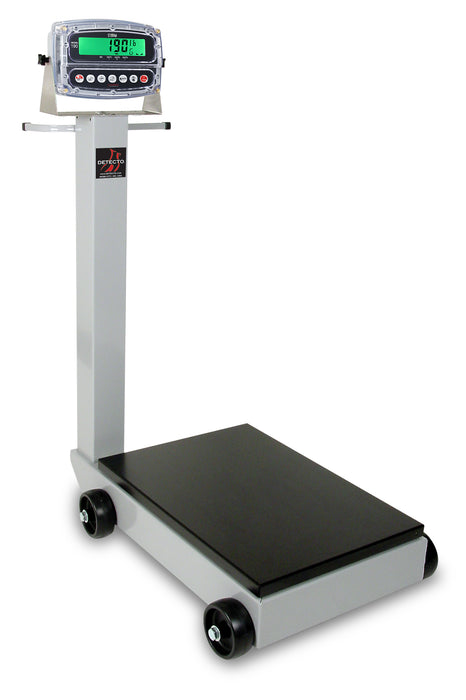

      5852F-190

      Capacity: 500 lb x 0.2 lb / 220 kg x 0.1 kg
      Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
      Overall Dimensions: 24.1 in W x 35 in D x 48.8 in H / 61.2 cm W x 88.9 cm D x 124 cm H
      Power: 100 - 240 VAC (50/60 Hz) at 0.4A max. or optional BP190 battery pack lithium ion 7.2V, 2600 mAH
      Platform, Base, and Column: Mild steel with gray and black powder coat paint
      Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
      Net Weight: 105 lb / 48 kg
      Shipping Weight: 115 lb / 52 kg
      Certifications: NTEP, Measurement Canada
      Country of Origin: USA
      UPC Code: 809161191905
      Weight Indicator: 190
      Power Requirements: AC
      Battery Power Optional: BP190 (7.2V @ 2600 mAH LI-ION pack)
      Indicator Enclosure Construction: Thermoplastic
      Indicator IP Rating: IP69K
      Features: Checkweigher Mode, Pushbutton Tare, Date and Time, 1 RS232 Serial Port, Selectable Key Lockout, Optional Ethernet/Wireless, 4 Remote Digital Inputs, 3 Remote Digital Outputs
      Display Type: 1-in-high LCD with multi-color backlight
      Number of Keys/Keypad Type: 7-key color-coded capacitive touch
      nControl Compatible: Yes, 1 ticket

      8852F-190

      Capacity: 1,000 lb x 0.5 lb / 440 kg x 0.2 kg
      Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
      Overall Dimensions: 24.1 in W x 35 in D x 48.8 in H / 61.2 cm W x 88.9 cm D x 124 cm H
      Power: 100 - 240 VAC (50/60 Hz) at 0.4A max. or optional BP190 battery pack lithium ion 7.2V, 2600 mAH
      Platform, Base, and Column: Mild steel with gray and black powder coat paint
      Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
      Net Weight: 105 lb / 48 kg
      Shipping Weight: 115 lb / 52 kg
      Certifications: NTEP
      Country of Origin: USA
      UPC Code: 809161192001
      Weight Indicator: 190
      Power Requirements: AC
      Battery Power Optional: BP190 (7.2V @ 2600 mAH LI-ION pack)
      Indicator Enclosure Construction: Thermoplastic
      Indicator IP Rating: IP69K
      Features: Checkweigher Mode, Pushbutton Tare, Date and Time, 1 RS232 Serial Port, Selectable Key Lockout, Optional Ethernet/Wireless, 4 Remote Digital Inputs, 3 Remote Digital Outputs
      Display Type: 1-in-high LCD with multi-color backlight
      Number of Keys/Keypad Type: 7-key color-coded capacitive touch
      nControl Compatible: Yes, 1 ticket

      5852F-205

      Capacity: 500 lb x 0.2 lb / 220 kg x 0.1 kg
      Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
      Overall Dimensions: 24.1 in W x 35 in D x 50.5 in H / 61.2 cm W x 88.9 cm D x 128.3 cm H
      Power: 100 - 240 VAC (50/60 Hz) at 0.4A max.
      Platform, Base, and Column: Mild steel with gray and black powder coat paint
      Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
      Net Weight: 109 lb / 49 kg
      Shipping Weight: 119 lb / 54 kg
      Certifications: NTEP, Measurement Canada
      Country of Origin: USA
      UPC Code: 809161150605
      Weight Indicator: 205
      Power Requirements: AC
      Indicator Enclosure Construction: Stainless Steel
      Indicator IP Rating: IP66
      Features: USB Interface, Pusbbutton Tare,4 RS232 Serial Ports, Selectable Key Lockout, Optional Ethernet/Wireless, 8 Remote Digital Inputs
      Display Type: 0.6-in-high red LED
      Number of Keys/Keypad Type: 7-key membrane
      nControl Compatible: Yes, 2 tickets

      8852F-205

      Capacity: 1,000 lb x 0.5 lb / 440 kg x 0.2 kg
      Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
      Overall Dimensions: 24.1 in W x 35 in D x 50.5 in H / 61.2 cm W x 88.9 cm D x 128.3 cm H
      Power: 100 - 240 VAC (50/60 Hz) at 0.4A max.
      Platform, Base, and Column: Mild steel with gray and black powder coat paint
      Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
      Net Weight: 109 lb / 49 kg
      Shipping Weight: 119 lb / 54 kg
      Certifications: NTEP
      Country of Origin: USA
      UPC Code: 809161150704
      Weight Indicator: 205
      Power Requirements: AC
      Indicator Enclosure Construction: Stainless Steel
      Indicator IP Rating: IP66
      Features: USB Interface, Pushbutton Tare,4 RS232 Serial Ports, Selectable Key Lockout, Optional Ethernet/Wireless, 8 Remote Digital Inputs
      Display Type: 0.6-in-high red LED
      Number of Keys/Keypad Type: 7-key membrane
      nControl Compatible: Yes, 2 tickets

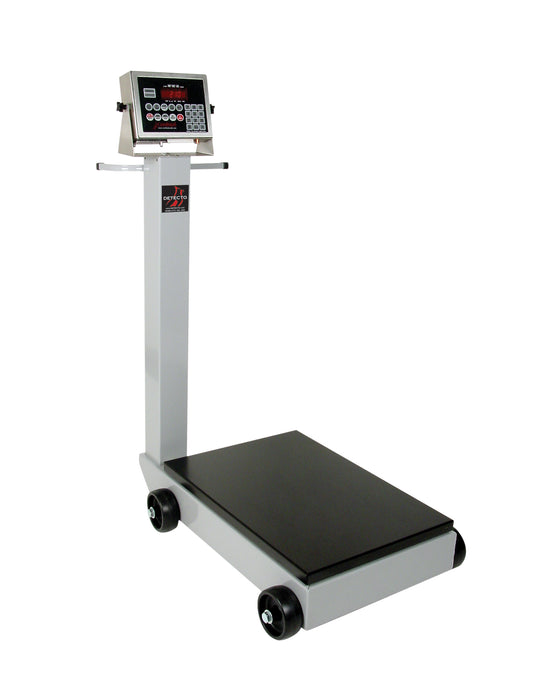

      5852F-210

      Capacity: 500 lb x 0.2 lb / 220 kg x 0.1 kg
      Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
      Overall Dimensions: 24.1 in W x 35 in D x 50.5 in H / 61.2 cm W x 88.9 cm D x 128.3 cm H
      Power: 100 - 240 VAC (50/60 Hz) at 0.4A max.
      Platform, Base, and Column: Mild steel with gray and black powder coat paint
      Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
      Net Weight: 109 lb / 49 kg
      Shipping Weight: 119 lb / 54 kg
      Certifications: NTEP, Measurement Canada
      Country of Origin: USA
      UPC Code: 809161122800
      Weight Indicator: 210
      Power Requirements: AC
      Indicator Enclosure Construction: Stainless Steel
      Indicator IP Rating: IP66
      Features: USB Interface, Counting Feature with Accumulator, Checkweigher Mode, Keypad Tare Entry, Pushbutton Tare, Date and Time, 4 RS232 Serial Ports, Alphanumeric Keypad, Selectable Key Lockout, ID Storage, Optional Ethernet/Wireless, 8 Remote Digital Inputs, 8 Remote Digital Outputs
      Display Type: 0.6-in-high red LED
      Number of Keys/Keypad Type: 22-key color-coded membrane
      nControl Compatible: Yes, 2 tickets

      8852F-210

      Capacity: 1,000 lb x 0.5 lb / 440 kg x 0.2 kg
      Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
      Overall Dimensions: 24.1 in W x 35 in D x 50.5 in H / 61.2 cm W x 88.9 cm D x 128.3 cm H
      Power: 100 - 240 VAC (50/60 Hz) at 0.4A max.
      Platform, Base, and Column: Mild steel with gray and black powder coat paint
      Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
      Net Weight: 109 lb / 49 kg
      Shipping Weight: 119 lb / 54 kg
      Certifications: NTEP
      Country of Origin: USA
      UPC Code: 809161122909
      Weight Indicator: 210
      Power Requirements: AC
      Indicator Enclosure Construction: Stainless Steel
      Indicator IP Rating: IP66
      Features: USB Interface, Counting Feature with Accumulator, Checkweigher Mode, Keypad Tare Entry, Pushbutton Tare, Date and Time, 4 RS232 Serial Ports, Alphanumeric Keypad, Selectable Key Lockout, ID Storage, Optional Ethernet/Wireless, 8 Remote Digital Inputs, 8 Remote Digital Outputs
      Display Type: 0.6-in-high red LED
      Number of Keys/Keypad Type: 22-key color-coded membrane
      nControl Compatible: Yes, 2 tickets

      Model

      Description

      5852F-185B

      Portable Scale, Electronic, 500 Lb Capacity, 185B Indicator

      8852F-185B

      Portable Scale, Electronic, 1000 Lb Capacity, 185B Indicator

      5852F-190

      Portable Scale, Electronic, 500 Lb Capacity, 190 Indicator

      8852F-190

      Portable Scale, Electronic, 1000 Lb Capacity, 190 Indicator

      5852F-205

      Portable Scale, Electronic, 500 Lb Capacity, 205 Indicator

      8852F-205

      Portable Scale, Electronic, 1000 Lb Capacity, 205 Indicator

      5852F-210

      Portable Scale, Electronic, 500 Lb Capacity, 210 Indicator

      8852F-210

      Portable Scale, Electronic, 1000 Lb Capacity, 210 Indicator
