Cambridge Scale Works Model SS680-P2 Stainless Steel Portable Scales - Northline Scale

Cambridge Scale Works Model SS680-P2 Stainless Steel Portable Scales

by Cambridge Scale
$9,615.00 - $14,295.00
$9,615.00
$9,615.00 - $14,295.00
$9,615.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

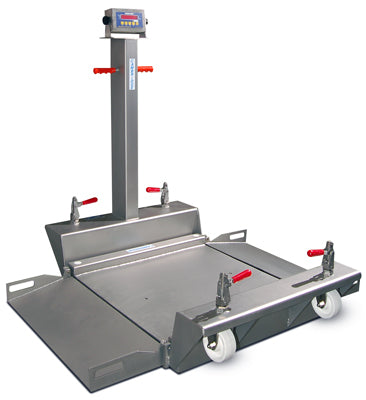

The SS680-P2 is a rugged, ultra-low-profile portable scale designed for high-precision weighing in demanding industrial environments. Built entirely from stainless steel, it offers superior durability, washdown capability, and portability, making it ideal for applications in the food, pharmaceutical, and chemical industries. With dual folding ramps and smooth-rolling wheels, the SS680-P2 provides unmatched convenience and sanitary performance.

FEATURES

  • Two 12", folding, easy incline, side loading ramps.
  • (4) Internally mounted, IP 67 water resistant rated stainless steel load cells.
  • Column mounted stainless steel NEMA 4X junction box for convenient corner adjustments.
  • Structural tubular stainless steel construction.
  • Smooth stainless steel deck plate with eye bolt holes.
  • 150% Overload protection
  • 100% End loading capacity.
  • Shielded load cell cables and 10 foot indicator cable.
  • Ultra-low profile (1.5" above the floor).
  • 1 part in 5000 accuracy.
  • (2) 5" straight plastic wheels with stainless steel roller bearings and grease fittings (front).
  • (2) 5" swiveling plastic wheels with stainless steel roller bearings and grease fittings (rear).
  • Stainless steel wheel jacks to lift and lower scale.
  • 40" high stainless steel indicator column with mounting plate.
  • OSHA orange safety handle grips.

OPTIONS (sold separately)

  • Stainless steel diamond deck plate with eye bolt holes.
  • Type 316 stainless steel construction.
  • Locking 5” plastic wheels with roller bearings.
  • Stainless steel indicator mounting plate with 360° swivel.
  • Hermetically sealed stainless steel and/or “FM” approved load cells.
  • “FM” approved stainless steel Nema 4X junction box.

SPECIFICATIONS

PLATFORM SIZE
CAPACITY
APPROX. SHIPPING WEIGHT
30" X 30" X 1.5"
1000 Lb. x .2
405 Lb.
30" X 30" X 1.5"
2500 Lb. x .5
405 Lb.
36" X 36" X 1.5"
1000 Lb. x .2
460 Lb.
36" X 36" X 1.5"
2500 Lb. x .5
460 Lb.
48" X 48" X 2"
1000 Lb. x .2
580 Lb.
48" X 48" X 2"
2500 Lb. x .5
580 Lb.



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
