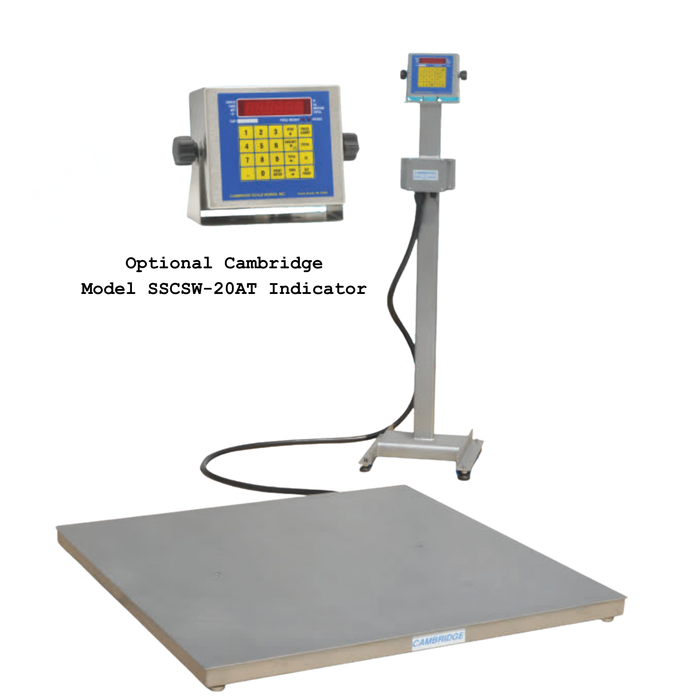

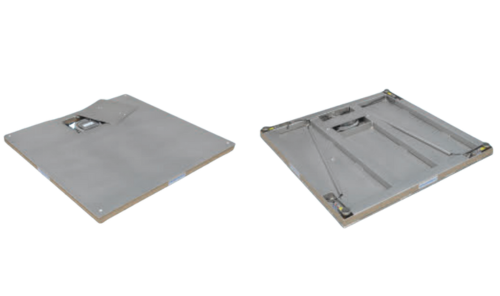

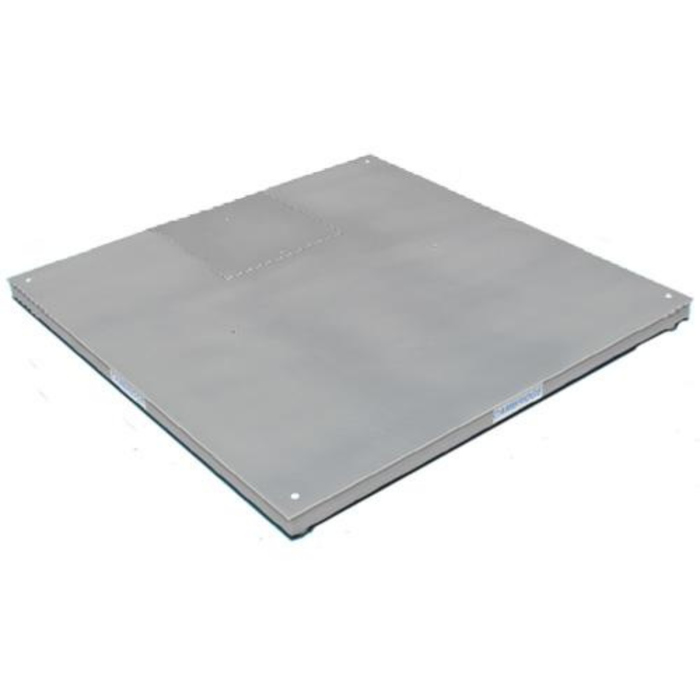

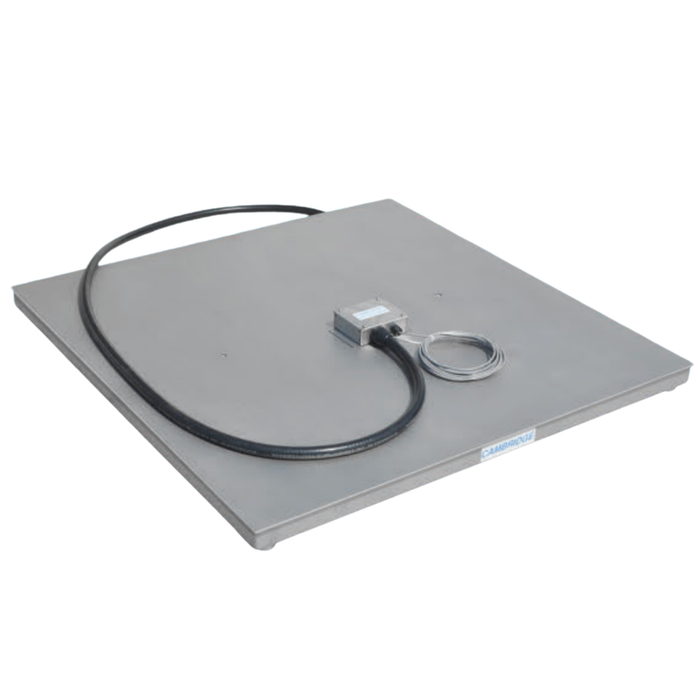

Cambridge Scale Works Model SS660 Series Stainless Steel Low Profile Floor Scales - Northline Scale

Cambridge Scale Works Model SS660-OB & SS660-R Series Stainless Steel Low Profile Floor Bases

by Cambridge Scale
$4,475.00 - $13,565.00
$4,475.00
$4,475.00 - $13,565.00
$4,475.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

The Cambridge SS660 Series is a premium line of stainless steel, low-profile floor scales engineered for industrial environments requiring durability, precision, and hygiene. Constructed with Type 304 stainless steel and featuring a low-profile design, the SS660 Series is ideal for applications in food processing, pharmaceuticals, and other sectors where cleanliness and corrosion resistance are paramount.

FEATURES

Model SS660-OB

  • “ON-BOARD” stainless steel NEMA IV, water seal rated junction box
  • Smooth plate stainless steel Type 304
  • Stainless steel Type 304 construction
  • Capped and sealed stainless steel structural tubing
  • Stainless steel IP67 waterseal rated load cells
  • 20 ft. shielded signal cable
  • Eye bolt lift holes for easy set-up
  • 100% end loading protection
  • 200% overload & shock load protection
  • Easy access leveling

Model SS660-R

All of the above except with-

  • “REMOTE” stainless steel NEMA IV, water seal rated
    junction box and 10’ Sealite flex conduit

OPTIONS & ACCESSORIES (sold separately)

  • Diamond deck plate
  • Type 316 construction
  • Hermetically sealed and/or "FM" approved load cells
  • 48" indicator column (attached)
  • Captive ball leveling feet
  • Ramp
  • Pit form
  • Bumper guard
  • Bumper guard surround
  • 48" indicator column (free standing)
  • Lag down bracket
  • Portability cart

SPECIFICATIONS

MODEL SS660-OB ON-BOARD S.S. JUNCTION BOX

PART NUMBER

SIZE

CAPACITY

SHIP WT

3930-1000-00

24x24x3

1,000 LB.

95 LB.

3930-1001-00

24x24x3

2,500 LB.

95 LB.

3930-1002-00

30x30x3

1,000 LB.

125 LB.

3930-1003-00

30x30x3

2,500 LB.

125 LB.

3930-1004-00

36x36x3

1,000 LB.

180 LB.

3930-1005-00

36x36x3

2,500 LB.

180 LB.

3930-1006-00

36x36x3

5,000 LB.

180 LB.

3930-1007-00

48x48x3

1,000 LB.

250 LB.

3930-1008-00

48x48x3

2,500 LB.

250 LB.

3930-1009-00

48x48x3

5,000 LB.

250 LB.

3930-1010-00

48x48x3

10,000 LB.

375 LB.

3930-1011-00

48x60x3

5,000 LB.

385 LB.

3930-1012-00

48x60x3

10,000 LB.

490 LB.

3930-1013-00

48x72x3

5,000 LB.

465 LB.

3930-1014-00

48x72x3

10,000 LB.

585 LB.

3930-1015-00

60x60x3

5,000 LB.

485 LB.

3930-1016-00

60x60x3

10,000 LB.

600 LB.

3930-1017-00

60x60x4

20,000 LB.

855 LB.

3930-1018-00

60x84x4

10,000 LB.

1,140 LB.

3930-1019-00

60x84x4

20,000 LB.

1,380 LB.

MODEL SS660-R REMOTE S.S JUNCTION BOX

PART NUMBER

SIZE

CAPACITY

SHIP WT

3933-1000-00

24x24x3

1,000 LB.

95 LB.

3933-1001-00

24x24x3

2,500 LB.

95 LB.

3933-1002-00

30x30x3

1,000 LB.

125 LB.

3933-1003-00

30x30x3

2,500 LB.

125 LB.

3933-1004-00

36x36x3

1,000 LB.

180 LB.

3933-1005-00

36x36x3

2,500 LB.

180 LB.

3933-1006-00

36x36x3

5,000 LB.

180 LB.

3933-1007-00

48x48x3

1,000 LB.

250 LB.

3933-1008-00

48x48x3

2,500 LB.

250 LB.

3933-1009-00

48x48x3

5,000 LB.

250 LB.

3933-1010-00

48x48x3

10,000 LB.

375 LB.

3933-1011-00

48x60x3

5,000 LB.

385 LB.

3933-1012-00

48x60x3

10,000 LB.

490 LB.

3933-1013-00

48x72x3

5,000 LB.

465 LB.

3933-1014-00

48x72x3

10,000 LB.

585 LB.

3933-1015-00

60x60x3

5,000 LB.

485 LB.

3933-1016-00

60x60x3

10,000 LB.

600 LB.

3933-1017-00

60x60x4

20,000 LB.

855 LB.

3933-1018-00

60x84x4

10,000 LB.

1,140 LB.

3933-1019-00

60x84x4

20,000 LB.

1,380 LB.

SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
