Cambridge Scale Works Model AL660 Classic Series Aluminum Low Profile Scales

Cambridge Scale Works Model AL660 Classic Series Aluminum Low Profile Scales

by Cambridge Scale
$2,590.00 - $4,920.00
$2,590.00
$2,590.00 - $4,920.00
$2,590.00

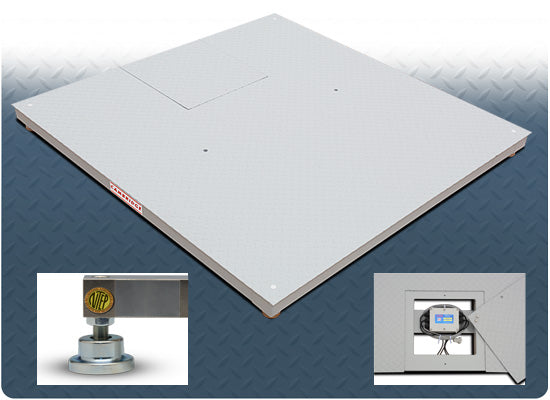

The Cambridge AL660 Classic Series is a robust, lightweight aluminum floor scale designed for industrial applications requiring durability, precision, and portability. Its low-profile design and corrosion-resistant construction make it ideal for environments where mobility and ease of use are essential.

FEATURES

  • 1 part in 5,000 accuracy.
  • Structural tubular aluminum construction.
  • Aluminum diamond tread deck plate.
  • Top access plastic NEMA 4X junction box.
  • Top access leveling.
  • Captive ball leveling feet.
  • 150% overload protection.
  • 100% end loading protection.
  • Low profile design for easy incline ramping.
  • Eye bolt holes for easy setup and moving.
  • 20 foot shielded indicator cable.
  • Shock load protection.
  • Four internally mounted, NTEP Certified-5000 Division Class III/III L, IP-67 water resistant rated, environmentally protected, load cells.

OPTIONS & ACCESSORIES (sold separately)

  • Glass bead finish
  • Smooth deck plate
  • Stainless steel hermetically sealed and/or "FM" approved load cells
  • Stainless steel on-board NEMA 4X junction box
  • Easy incline ramps (carbon steel only)
  • Pit forms (carbon steel only)
  • 48" indicator column (freestanding) (carbon steel only)
  • Lag down brackets (carbon steel only)

SPECIFICATIONS

SIZE
CAPACITY
DECK THICKNESS
SHIP WEIGHT
24” X 24” X 3.5”
1,000 Lb.
1/4"
60 Lb.
24” X 24” X 3.5”
2,500 Lb.
1/4"
60 Lb.
30” X 30” X 3.5”
1,000 Lb.
1/4"
80 Lb.
30” X 30” X 3.5”
2,500 Lb.
1/4"
80 Lb.
36” X 36” X 3.5”
1,000 Lb.
1/4"
105 Lb.
36” X 36” X 3.5”
2,500 Lb.
1/4"
105 Lb.
36” X 36” X 3.5”
5,000 Lb.
1/4"
105 Lb.
48” X 48” X 3.5”
1,000 Lb.
1/4"
160 Lb.
48” X 48” X 3.5”
2,500 Lb.
1/4"
160 Lb.
48” X 48” X 3.5”
5,000 Lb.
1/4"
160 Lb.
48” X 60” X 3.5”
5,000 Lb.
1/4"
200 Lb.
48” X 72” X 3.5”
5,000 Lb.
1/4"
240 Lb.
60” X 60” X 3.5”
5,000 Lb.
1/4"
270 Lb.



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Size: 24” X 24” X 3.5” 1000 Lb.
