Cambridge Scale Works Model 680-P2 Portable Scales - Northline Scale

Cambridge Scale Works Model 680-P2 Portable Scales

by Cambridge Scale
$5,065.00 - $7,795.00
$5,065.00
$5,065.00 - $7,795.00
$5,065.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

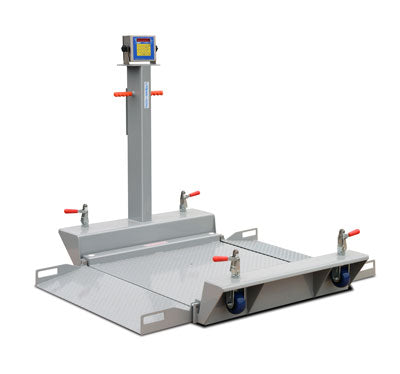

The Cambridge 680-P2 is a high-capacity, ultra-low profile portable platform scale designed for cart, drum, and pallet jack weighing. Featuring two integrated flip-up ramps and heavy-duty wheels, the 680-P2 combines mobility with durability for industrial and warehouse applications.

FEATURES

  • Carbon steel construction with powder coat finish.
  • Two 12", folding, easy incline, side loading ramps.
  • (4) Internally mounted, IP 67 water resistant rated load cells.
  • Column mounted polycarbonate NEMA 4X junction box for convenient corner adjustments.
  • Structural tubular construction.
  • Diamond tread deck plate with eye bolt holes.
  • 150% Overload protection
  • 100% End loading capacity.
  • Shielded load cell cables and 10 foot indicator cable.
  • Ultra-lo profile (1.5" above the floor).
  • 1 part in 5000 accuracy.
  • (2) poly bonded 4" straight wheel casters with roller bearings and grease fittings (front).
  • (2) poly bonded 4" swivel wheel casters with roller bearings and grease fittings (rear).
  • Wheel jacks to lift and lower scale.
  • 40" high indicator column with mounting plate.
  • OSHA orange safety handle grips.

APPLICATIONS

  • Pharmaceutical
  • In-processing weighing
  • Mixing vessels
  • Check weighing
  • Laundry carts

OPTIONS (sold separately)

  • Smooth deck plate with eye bolt holes.
  • Locking rear swivel wheel.
  • Indicator mounting plate with 180° swivel.
  • Stainless steel load cells.
  • Hermetically sealed stainless steel load cells.
  • “FM” approved load cells.
  • “FM” approved stainless steel Nema 4X junction box

SPECIFICATIONS

PLATFORM SIZE
CAPACITY
APPROX. SHIPPING WEIGHT
30" X 30" X 1.5"
1000 Lb. x .2
405 Lb.
30" X 30" X 1.5"
2500 Lb. x .5
405 Lb.
36" X 36" X 1.5"
1000 Lb. x .2
460 Lb.
36" X 36" X 1.5"
2500 Lb. x .5
460 Lb.
48" X 48" X 2"
1000 Lb. x .2
580 Lb.
48" X 48" X 2"
2500 Lb. x .5
580 Lb.



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
