Cambridge Scale Works Model 670-1 Barrel Weigher

Cambridge Scale Works Model 670-1 Barrel Weigher

by Cambridge Scale
Sold out
$2,085.00 - $2,325.00
$2,085.00
$2,085.00 - $2,325.00
$2,085.00

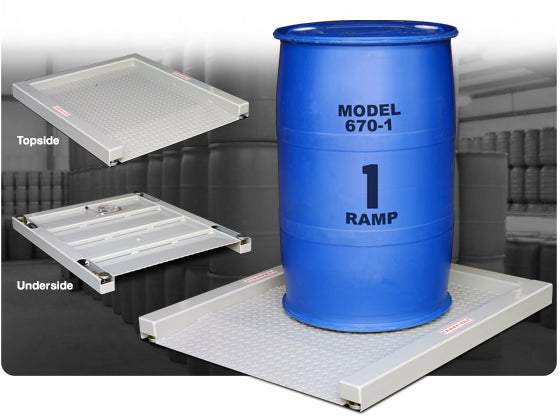

The Cambridge Model 670-1 Barrel Weigher is a robust, industrial-grade floor scale engineered for precise and efficient weighing of barrels, drums, totes, and super sacks. Its ultra-low profile design, combined with a built-in ramp and live side rails, ensures effortless loading and unloading, making it ideal for high-throughput environments. Constructed with structural tubular steel and featuring a non-slip diamond plate deck, the 670-1 is built to withstand demanding industrial applications.

FEATURES

  • Structural tubular steel construction.
  • Anti-skid diamond plate deck.
  • 100% End loading capacity.
  • 150% Overload protection.
  • 20 Foot indicator cable.
  • Eye bolt holes allow easy set-up.
  • Shielded load cell and indicator cables.
  • Ultra-low profile (1.5” above the floor).
  • Live side rails to weigh oversized loads.
  • 1 Part in 5000 accuracy.
  • Live built-in easy incline ramp.
  • Shock load protection.
  • (4) Internally mounted, Environmentally protected,
    NTEP certified-5000 Division, Class III/IIIL, IP 67 water
    resistant rated shear beam load cells.
  • Easy access leveling.

APPLICATIONS

  • Barrels
  • Drums
  • Totes.
  • Super Sacks
  • General purpose weighing

OPTIONS (sold separately)

  • Smooth carbon steel deck plate.
  • Remote stainless steel NEMA 4x junction box with 10' Sealtite flexible conduit.
  •  Load cell options:
    Stainless steel , Hermetically sealed Stainless Steel,“FM” approved
  • H.E.P. Package Includes:
    Remote stainless steel NEMA 4x J -box with 10' Sealtite flexible conduit
    Capped and sealed tubes
    Stainless steel load cells, leveling feet and hardware, Sandblasted surface
    Cold zinc epoxy coating with urethane enamel finish coat
  • Portability Package

SPECIFICATIONS

OVERALL SIZE
PLATFORM SIZE
CAPACITY
APPROX. SHIPPING WEIGHT
36” X 39”
30” x 30” x 1.5”
1,000 Lb. x .2
185 Lb.
36” X 39”
30” x 30” x 1.5”
2,500 Lb. x .5
185 Lb.
36” X 39”
30” x 30” x 1.5”
5,000 Lb. x 1
205 Lb.
42” X 48”
36” x 36” x 1.5”
1,000 Lb. x .2
265 Lb.
42” X 48”
36” x 36” x 1.5”
2,500 Lb. x .5
265 Lb.
42” X 48”
36” x 36” x 1.5”
5,000 Lb. x 1
295 Lb.



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.

Size: 30” x 30” x 1.5” 1000 Lb. x .2
