Cambridge Scale Works Model 660 Series Low Profile Scales For Industrial Weighing

Cambridge Scale Works Model 660 Series Low Profile Scales For Industrial Weighing

by Cambridge Scale
$1,525.00 - $7,900.00
$1,525.00
$1,525.00 - $7,900.00
$1,525.00
Size: 24” X 24” X 3” 1000 Lb.

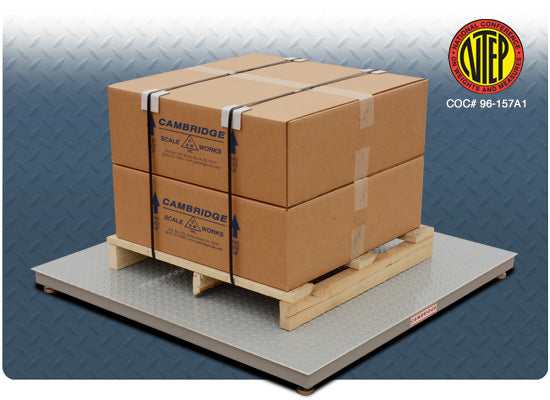

The Cambridge Model 660 Series is a line of low-profile industrial floor scales designed for durability, accuracy, and versatility in various weighing applications. These scales are suitable for environments such as warehouses, manufacturing facilities, and shipping centers.

FEATURES

  • 1 part in 5,000 accuracy. (NTEP)
  • 1 part in 10,000 accuracy. (Non-NTEP)
  • Structural tubular steel construction.
  • Anti-skid diamond plate deck.
  • Shock load protection.
  • 20 foot shielded indicator cable.
  • Four internally mounted, NTEP Certified-5000 Division Class III/III L,
    IP-67 water resistant rated, environmentally protected, load cells.
  • Compatible with digital indicators having remote base capabilities.
  • Eye bolt holes for easy setup and moving.
  • Low profile design for easy incline ramping.
  • 150% overload protection.
  • Four way ramp access.

OPTIONS

  • Smooth deck plate
  • Stainless steel hermetically sealed and/or "FM" approved load cells
  • Fork lift skid package
  • Attached indicator column
  • Remote junction box

SPECIFICATIONS

*--REPRESENTS "NTEP" APPROVAL

Size (W × L × H) Capacity Shipping Weight
24" × 24" × 3" 1,000 lb 90 lb
24” X 24” X 3” 2,500 lb 90 Lb.
30" × 30" × 3" 1,000 lb 120 Lb.
30” X 30” X 3” 2,500 lb 120 Lb.
36" × 36" × 3" 1,000 Lb. 170 Lb.
36" × 36" × 3" 2,500 Lb. 170 Lb.
36" × 36" × 3" 5,000 Lb. 170 Lb.
*48" × 48" × 3" 1,000 lb 275 lb
48" × 48" × 3" 2,500 lb 275 lb
48" × 48" × 3" *5,000 lb 275 lb
48" × 48" × 4" *10,000 lb 365 lb
48" × 48" × 4" *20,000 lb 365 lb
48" × 60" × 3" *5,000 lb 370 lb
48" × 60" × 3" *10,000 lb 470 lb
48" × 60" × 4" *20,000 lb 535 lb
48" × 72" × 3" *5,000 lb 445 lb
48" × 72" × 3" *10,000 lb 565 lb
48" × 72" × 4" *20,000 lb 670 lb
60" × 60" × 3" *5,000 lb 480 lb
60" × 60" × 3" *10,000 lb 583 lb
60" × 60" × 4" *20,000 lb 705 lb
60" × 84" × 4" *10,000 lb 1,150 Lb.
60" × 84" × 4" *20,000 lb 1,300 Lb.
60" × 120" × 5" *10,000 lb 1,550 Lb.
60" × 120" × 5" *20,000 lb 1,650 Lb.
72" × 72" × 4" *10,000 lb 1,185 Lb.
72” X 72” X 4” *20,000 lb 1,335 Lb.
72" × 96" × 4" *10,000 lb 1,575 Lb.
72" × 96" × 5" *20,000 lb 1,775 lb
72" × 120" × 5" *10,000 lb 1,860 lb
72" × 120" × 5" *20,000 lb 1,960 lb



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
