Cambridge Scale Works Dyna-Lift Series with Model CSW-10AT Indicator - Northline Scale

Cambridge Scale Works Dyna-Lift Series with Model CSW-10AT Indicator

by Cambridge Scale
$7,150.00 - $17,225.00
$7,570.00
$7,150.00 - $17,225.00
$7,570.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

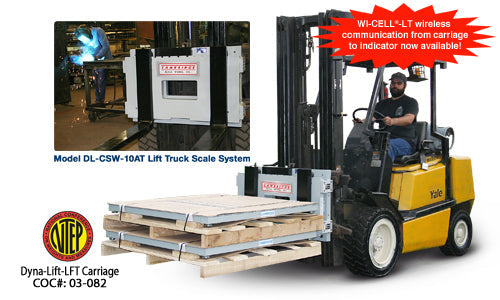

The Cambridge Model: DL-CSW-10AT Lift Truck Scale System allows lift truck operations to quickly and precisely weigh and record individual lifts. This rugged piece of industrial equipment increases productivity and eliminates down time. There is no more waiting to get to a scale in a remote location. Time is money...streamline your customer’s operation and increase efficiency. Just lift and weigh, the operation never stops. Since Cambridge offers both standard and legal for trade systems...we have the scale for the job!

FEATURES

  • Two Environmentally Sealed Load Cells
  • Large Viewing Port
  • Rugged, Solid, Plate Steel Construction
  • Urethane Enamel Gray Paint
  • Hardened Dual Web Stainless Steel
  • Flexures with Integrated Overload and
      Underload Protection
  • Hardened Stainless Steel Flexure Rods
  • (12) VDC Operation - Standard

OPTIONAL FEATURES

  • (24-48) VDC Operation
  • WI-CELL®-LT wireless carriage to indicator communication

INDICATOR FEATURES

  • Accuracy of .1% of the Applied Loads
  • Bright 1/2” LED Display
  • Zero, Gross, Tare, Net and Print Functions
  • RS-232 Port
  • On/Off Switch
  • Industrial Grade Aluminum, Dust-Tight Enclosure with Swivel Stand
  • (12) VDC Operation - Standard
  • (24-48) VDC Operation - Optional
  • Weight Totalization
  • Front Panel Calibration with Audit Trail

OPTIONAL FEATURES

  • WI-CELL®-LT wireless carriage to indicator communication
  • WI-FI link: Transmit to customer wireless hub 802.11 B/G
  • DC Thermal Tape Printer
  • DC Thermal Adhesive Label Printer
  • Severe Service Protection Package
  • Center Loading Package
  • Wet Environment Package - NEMA IV Rated
  • Non-Standard Widths (Consult Factory)
  • 24 VDC - 48 VDC Operation with Power Conditioning

SPECIFICATIONS

NON-LEGAL FOR TRADE

Model Number Capacity Graduation Dimensions (W × H) NTEP Class
DL-CSW-10AT-LT-5K 5,000 lb 1 lb 30" × 16" II
DL-CSW-10AT-LT-5K 5,000 lb 1 lb 36" × 16" II
DL-CSW-10AT-LT-6K 6,000 lb 2 lb 40" × 20" III
DL-CSW-10AT-LT-8K 8,000 lb 2 lb 40" × 20" III
DL-CSW-10AT-LT-10K 10,000 lb 2 lb 40" × 20" III
DL-CSW-10AT-LT-12K 12,000 lb 5 lb 40" × 25" IV
DL-CSW-10AT-LT-15K 15,000 lb 5 lb 40" × 25" IV



LEGAL FOR TRADE

Model Number Capacity Graduation Dimensions (W × H) NTEP Class
DL-CSW-10AT-LFT-5K 5,000 lb 5 lb 30" × 16" II
DL-CSW-10AT-LFT-5K 5,000 lb 5 lb 36" × 16" II



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from Cambridge Scale U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
