ACII™ Aviation Scale Systems

ACII™ Aviation Scale Systems

by Intercomp
$549.00 - $7,599.00
$3,199.00
$549.00 - $7,599.00
$3,199.00

FREE Shipping (Lower 48 United States) Order today for delivery in 5-7 business days.

✔ Authorized Cambridge Scale Dealer

✔ Call Us: +1 (941) 257-3293

✔ 1 Year Manufacturer's Warranty

✔ Made in The USA

✔ Ships From Cumberland, MD

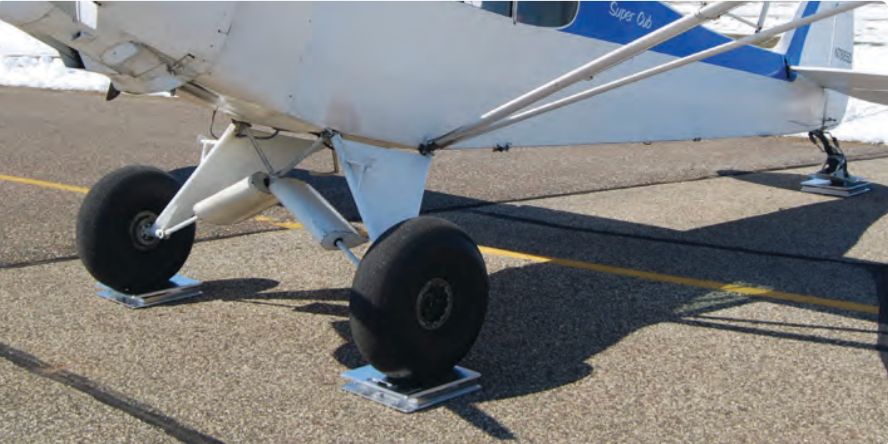

The ACII™ Aviation Scale System delivers precision and convenience through fully integrated RFX® Wireless Weighing Technology. Its Handheld RFX® Wireless Indicator allows operators to control all scale functions—zeroing, calibration, and power management—from a safe distance. With RS232/USB connectivity, data can be seamlessly streamed to printers, computers, or process control devices, ensuring accurate, efficient, and traceable aircraft weight management in every operation.


FEATURES

  • High Accuracy: Delivers precise measurements with an accuracy of ±0.1% of reading.
  • Long Battery Life: Operates on commercially available batteries lasting up to 150 hours in scales.
  • Durable Construction: Built with RFX® Wireless 6061-T6 billet aluminum scale pads for strength and reliability.
  • 4.5K Systems: Scale pad size 15" x 15" x 2.5" (381 x 381 x 64 mm) | 7.5K & 15K Systems: Scale pad size 15" x 15" x 4" (381 x 381 x 100 mm)
  • Wireless Connectivity: Features RFX® Wireless Technology for seamless communication and control.
  • Extended System Range: Designed to support various aircraft types with 4.5K, 7.5K, and 15K system capacities.
  • Efficient Operation: Provides consistent performance for long-duration weighing tasks with minimal downtime.



SPECIFICATION

ACII Scale Systems

MODEL NUMBER

DESCRIPTION

CAPACITY/GRADUATION

100406-RFX

ACII 4.5K SCALE SYSTEM - 15" X 15" X 2.5" (381 X 381 X 64 MM)

4,500 X 1 LB (2,200 X 0.5 KG)

100407-RFX

ACII 7.5K SCALE SYSTEM - 15" X 15" X 4" (381 X 381 X 100 MM)

7,500 X 1 LB (3,400 X 0.5 KG)

100416-RFX

ACII 15K SCALE SYSTEM - 15" X 15" X 4" (381 X 381 X 100 MM)

15,000 X 1 LB (6,800 X 0.5 KG)

101227

ACII WIRELESS SCALE PAD (1.5K)

1,500 X 1 LB (750 X 0.5 KG)

101228

SCALE PAD WIRELESS RFX ACII-4" (2.5K)

2,500 X 1 LB (1,100 X 0.5 KG)

101229

ACII WIRELESS SCALE PAD (5K)

5,000 X 1 LB (2,500 X 0.5 KG)



ACII Accessories

MODEL NUMBER

DESCRIPTION

100055

CASE - ACII 4.5K SCALE SYSTEM CASE (MODELS: 4.5K)

100056

CASE - ACII 7.5K/15K SCALE SYSTEM CASE (MODELS: 7.5K/15K)

100408

RAMPS - 15" X 15" X 2.5" (381 X 381 X 64 MM) - SET OF 3

100417

RAMPS - 15" X 36" X 4" (381 X 864 X 100 MM) - SET OF 3

Note: Cases are for Scale Pads & Indicator Only, Do Not Hold Ramps


INCLUDES

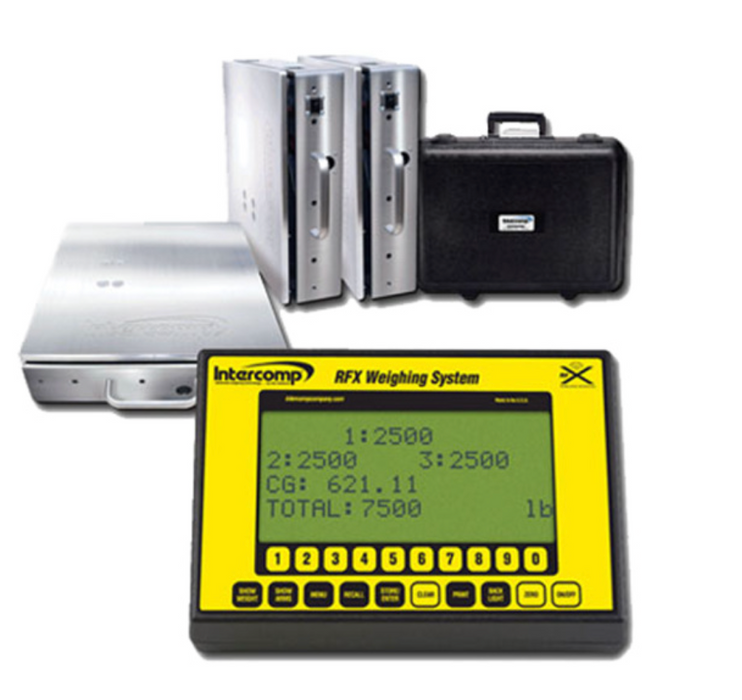

  • Three RFX® Wireless Scale Pads
  • Handheld RFX® Wireless Indicator
  • Indicator with Rechargeable Batteries, Battery Charger & Case
  • AA Alkaline Batteries for Scale Pads



SHIPPING & SUPPORT

We offer FREE SHIPPING to Lower 48 United States

This product ships directly from USA Measurements U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and scale accessories?
Contact us at sales@northlinescale.com or give us a call +1 941-257-3293 — our team is here to help.
